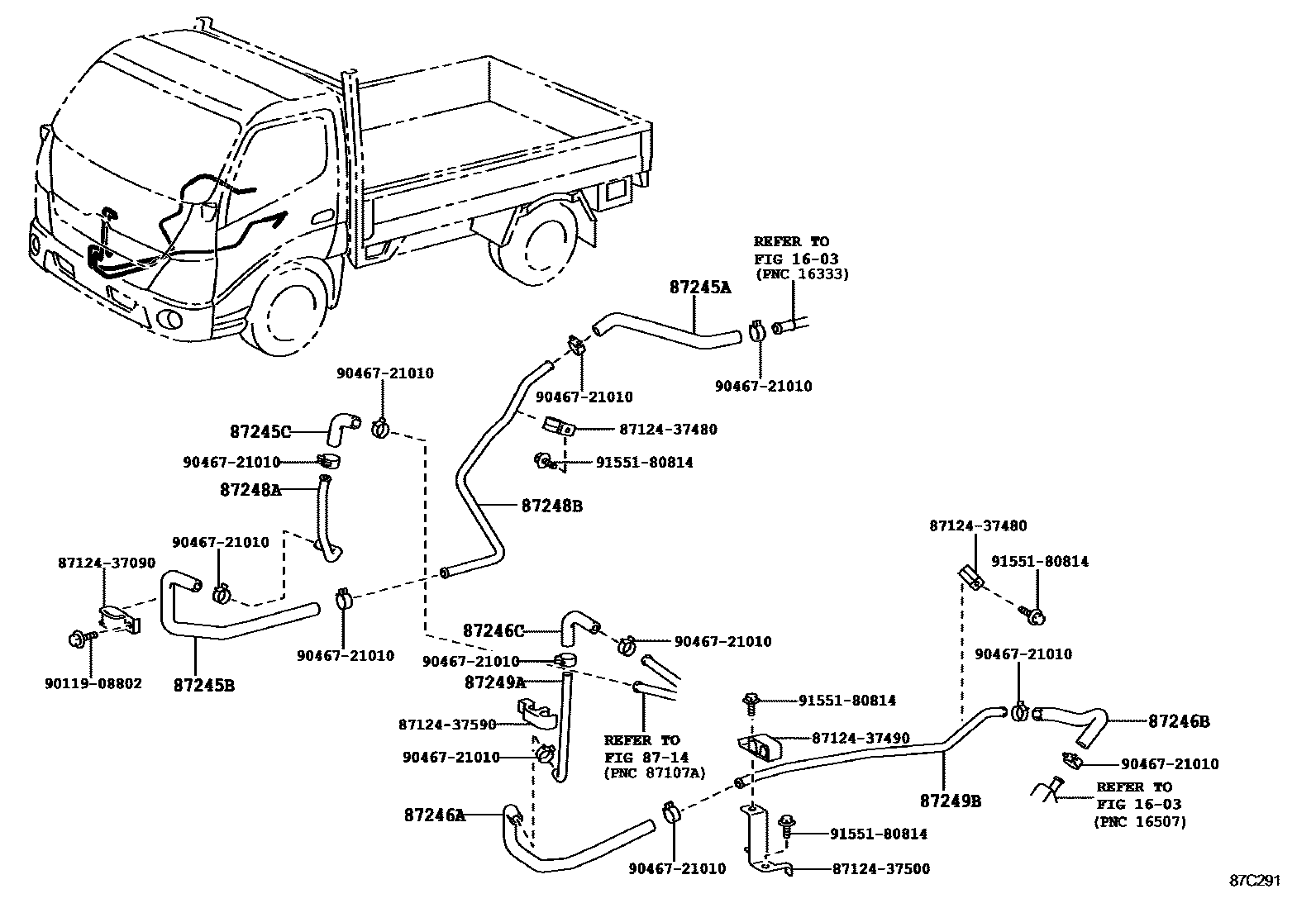

Toyota DYNA/TOYOACE HV — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87245-37A10iXKU700,710,720201107-201905

sub87245-37A11

main87245-37K50iXKU702,71#,72#..DCRWD201905-201910

sub87245-37K51

main87245-37K51iXKU702,71#,72#..DCRWD201911

87245BHOSE, HEATER WATER, INLET B

main87245-37F30iXKU700,710,720201107-201905

87245CHOSE, HEATER WATER ,INLET C

main87245-37F10iXKU700,710,720201107-201905

87246AHOSE, HEATER WATER, OUTLET A

main87246-37820iXKU700,710,720201107-201905

87246BHOSE, HEATER WATER, OUTLET B

main87246-37790iXKU700,710,720201107-201108

sub87246-37791

main87246-37791iXKU700,710,720201109-201910

sub87246-37792

main87246-37792iXKU702,71#,72#..DCRWD201911

87246CHOSE, HEATER WATER, OUTLET C

main87246-37810iXKU700,710,720201107-201905

87248APIPE, HEATER WATER INLET, A

main87248-37D70iXKU700,710,720201107-201905

87248BPIPE, HEATER WATER INLET, B

main87248-37D90iXKU700,710,720201107-201905

sub87248-37K20

main87248-37K20iXKU702,71#,72#..DCRWD201905

87249APIPE, HEATER WATER OUTLET, A

main87248-37D40iXKU700,710,720201107-201905

87249BPIPE, HEATER WATER OUTLET, B

main87248-37D50iXKU700,710,720201107-201108

sub87248-37D51

main87248-37D51iXKU700,710,720201109-201905

sub87248-37J90

main87248-37J90iXKU702,71#,72#..DCRWD201905

8712437090CLAMP, HEATER

main87124-37090

8712437480CLAMP, HEATER

main87124-37480

8712437490CLAMP, HEATER

main87124-37490

8712437500CLAMP, HEATER

main87124-37500

8712437590CLAMP, HEATER

main87124-37590

9011908802

main90119-08802

9046721010

main90467-21010

9155180814

main91551-80814

20 parts on this diagram · 2 diagrams in section
