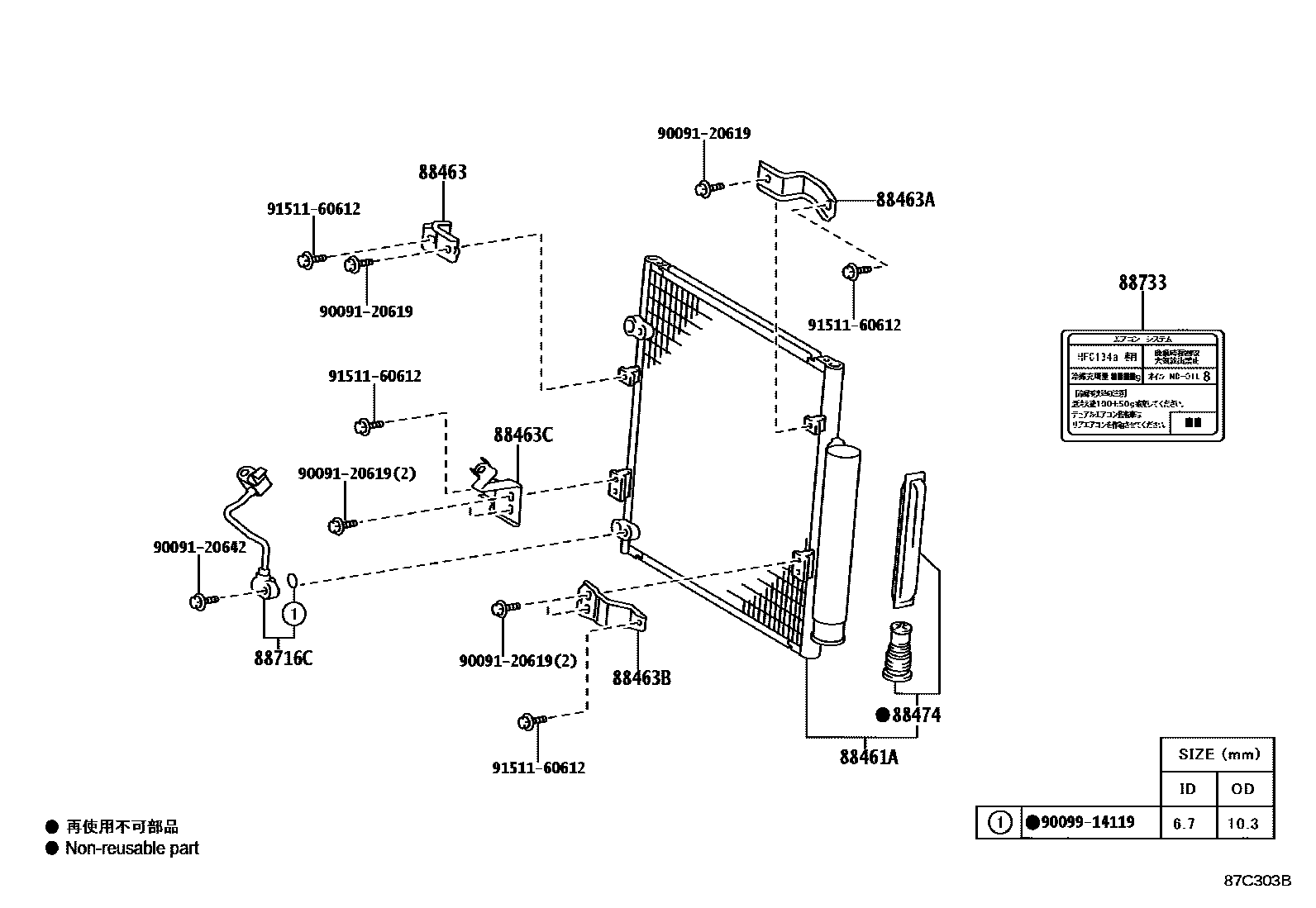

Toyota DYNA/TOYOACE HV — HEATING & AIR CONDITIONING - COOLER PIPING

0001 1������ & ����� 0002 1�������� 0003 1��������

88461ACORE, COOLER CONDENSER

main88461-37240iXKU700,710,720201107-201905

88463BRACKET, COOLER CONDENSER, NO.1

main88688-37E50iXKU700,710,720201107-201905

88463ABRACKET, COOLER CONDENSER, NO.2

main88688-37E60iXKU700,710,720201107-201905

88463BBRACKET, COOLER CONDENSER, NO.3

main88688-37E70iXKU700,710,720201107-201905

88463CBRACKET, COOLER CONDENSER, NO.4

main88688-37E90iXKU700,710,720201107-201905

88474DRYER, COOLER

main88474-12030iXKU700,710,720201410-201905

main88474-17010iXKU700,710,720201107-201410

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-37D40iXKU700,710,720201107-201905

88733LABEL, COOLER SERVICE INFORMATION

main88733-37030iXKU700,710,720201107-202308

sub88733-37031

main88733-37031iXKU702,71#,72#..DCWDO202309

9009120619

main90091-20619

9009120642

main90091-20642

9009914119

main90099-14119

9151160612

main91511-60612

12 parts on this diagram · 3 diagrams in section
