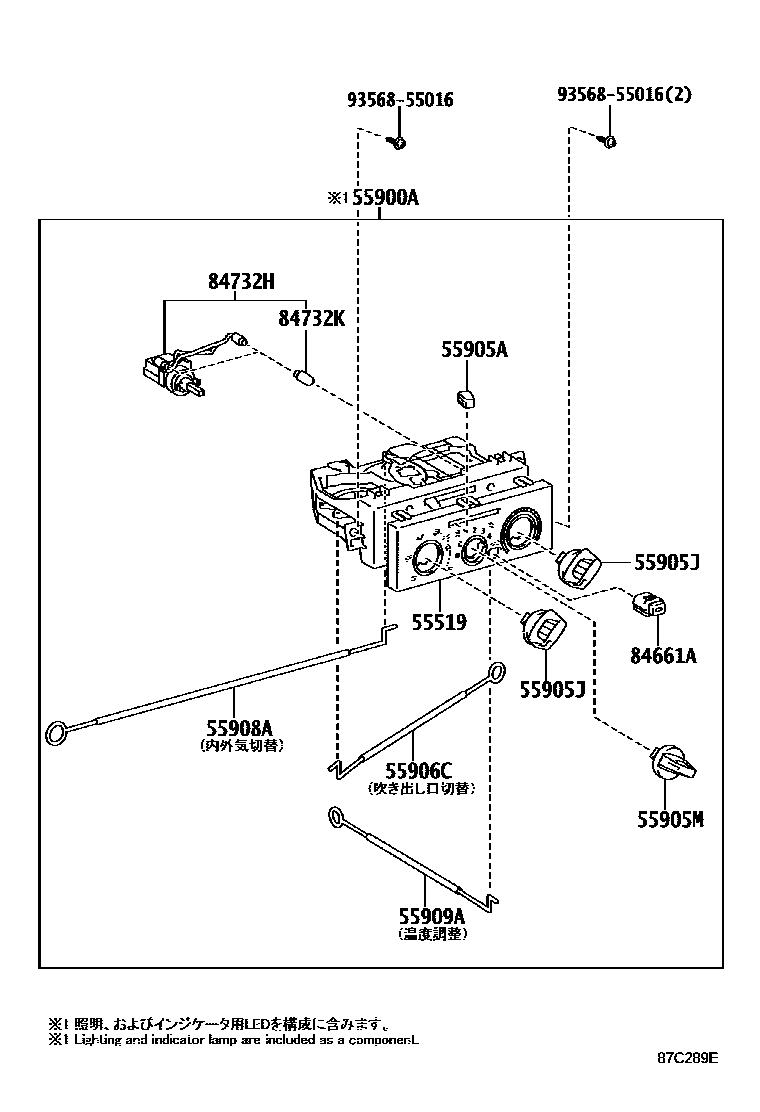

Toyota DYNA/TOYOACE HV — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���������� 0002 1���������� 0003 1������

55519PLATE, HEATER CONTROL NAME

main55519-37170iXKU700,710,720201107-201905

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-37380iXKU700,710,720201107-201905

main55900-37400iXKU702,71#,72#..DCRWD201905

55905AKNOB, HEATER CONTROL

main55925-37010iXKU700,710,720201107-201905

55905JKNOB SUB-ASSY, CONTROL

main55905-37030iXKU700,710,720201107-201905

55905MKNOB SUB-ASSY, CONTROL

main55905-37040iXKU700,710,720201107-201905

55906CCABLE SUB-ASSY, HEATER CONTROL, NO.1

main55906-37100iXKU700,710,720201107-201905

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-37100iXKU700,710,720201107-201905

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-37110iXKU700,710,720201107-201905

84661AKNOB, COOLER CONTROL SWITCH

main84661-37010iXKU700,710,720201107-201905

84732HSWITCH, HEATER BLOWER

main84732-37070iXKU700,710,720201107-201905

84732KBULB, HEATER BLOWER SWITCH

main90010-11014iXKU700,710,720201107-201905

9356855016

main93568-55016
