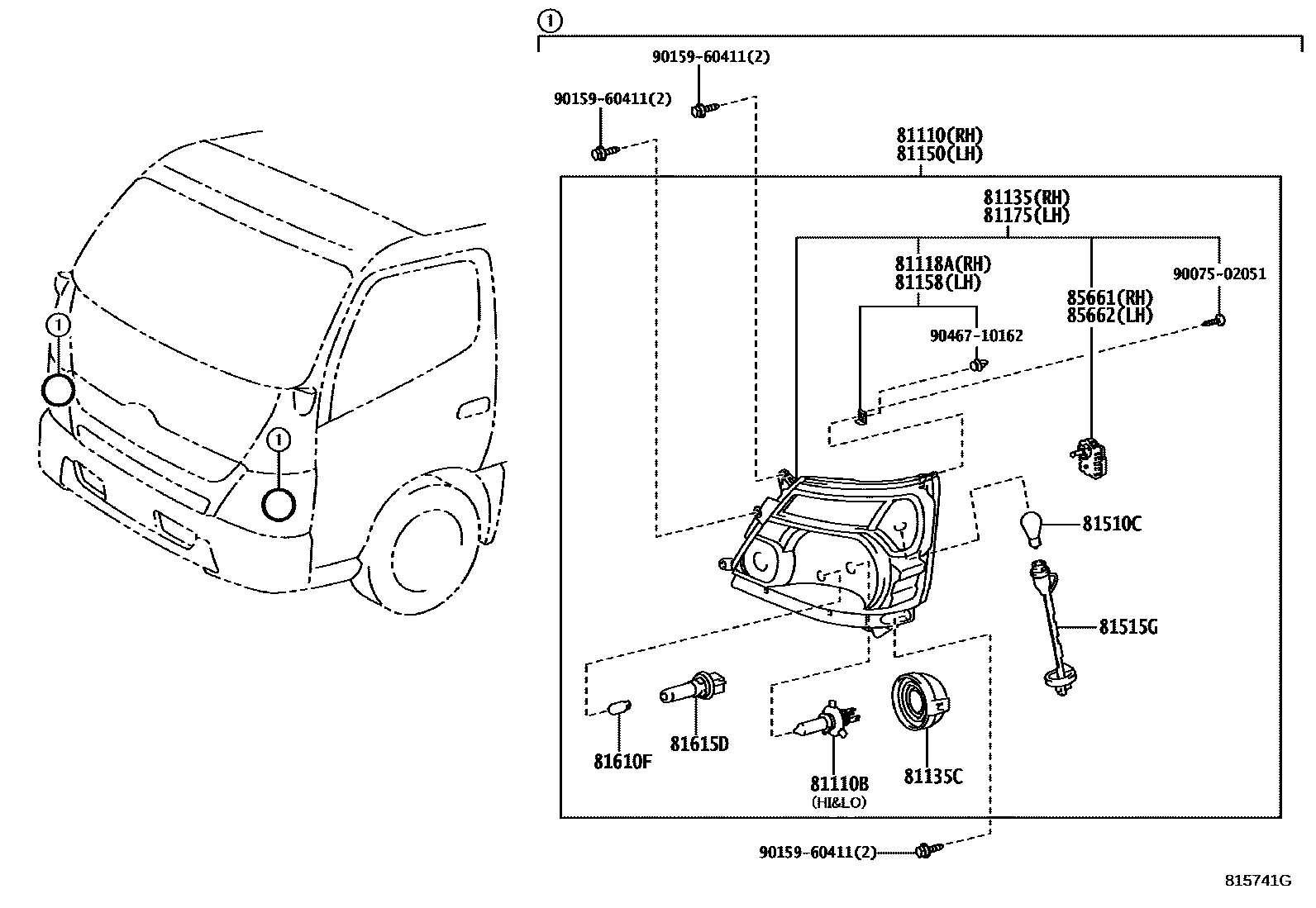

Toyota DYNA/TOYOACE HV — HEADLAMP

0001 1������������� 0002 1����������������� 0003 1LED��������&*DRL(���������) 0005 1LED��������&*DRL(LED����)

81110HEADLAMP ASSY, RH

main81110-37410iXKU700,710,720201107-201804

sub81110-37750

main81110-37750iXKU702,71#,72#..6F201805-201905

sub81110-37751

main81110-37780iXKU702,71#,72#..DCRWD201905-202310

main81110-37D30iXKU702,71#,72#..DCWDO202310

81110BBULB(FOR HEADLAMP, NO.1)

main90981-17019iXKU700,710,720201107-201905

81118ABRACKET, HEADLAMP, RH

main81118-37410iXKU700,710,720201107-201905

81135UNIT ASSY, HEADLAMP, RH

main81130-37410iXKU700,710,720201107-201805

sub81130-37750

main81130-37750iXKU702,71#,72#..6F201805-201905

sub81130-37751

81135CCOVER, HEADLAMP BACK, NO.1

main81135-37410iXKU700,710,720201107-201905

81150HEADLAMP ASSY, LH

main81150-37410iXKU700,710,720201107-201804

sub81150-37750

main81150-37750iXKU702,71#,72#..6F201805-201905

sub81150-37751

main81150-37780iXKU702,71#,72#..DCRWD201905-202310

main81150-37D30iXKU702,71#,72#..DCWDO202310

81158BRACKET, HEADLAMP, LH

main81158-37410iXKU700,710,720201107-201905

81175UNIT ASSY, HEADLAMP, LH

main81070-37780iXKU702,71#,72#..DCRWD201905-202310

main81070-37D30iXKU702,71#,72#..DCWDO202310

main81170-37410iXKU700,710,720201107-201805

sub81170-37750

main81170-37750iXKU702,71#,72#..6F201805-201905

sub81170-37751

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15023iXKU700,710,720..5F201107-201905

81515GSOCKET & WIRE, FRONT TURN SIGNAL LAMP

main81125-37410iXKU700,710,720..5F201107-201905

81610FBULB(FOR CLEARANCE LAMP)

main90981-12015iXKU700,710,720..5F201107-201905

81615DSOCKET, CLEARANCE LAMP

main90075-60020iXKU702,71#,72#..DCWDO201905

main90075-60077iXKU700,710,720201107-201905

85661MOTOR, HEADLAMP LEVELING, RH

main85661-37020iXKU702,71#,72#..6F201810-202310

main85661-B2010iXKU700,710,720..5F201705-201810

85662MOTOR, HEADLAMP LEVELING, LH

main85661-37020iXKU702,71#,72#..DCWDO201810-202310

main85661-B2010iXKU702,71#,72#..6F201705-201810

9007502051

main90075-02051

9015960411

main90159-60411

9046710162

main90467-10162

17 parts on this diagram · 4 diagrams in section
