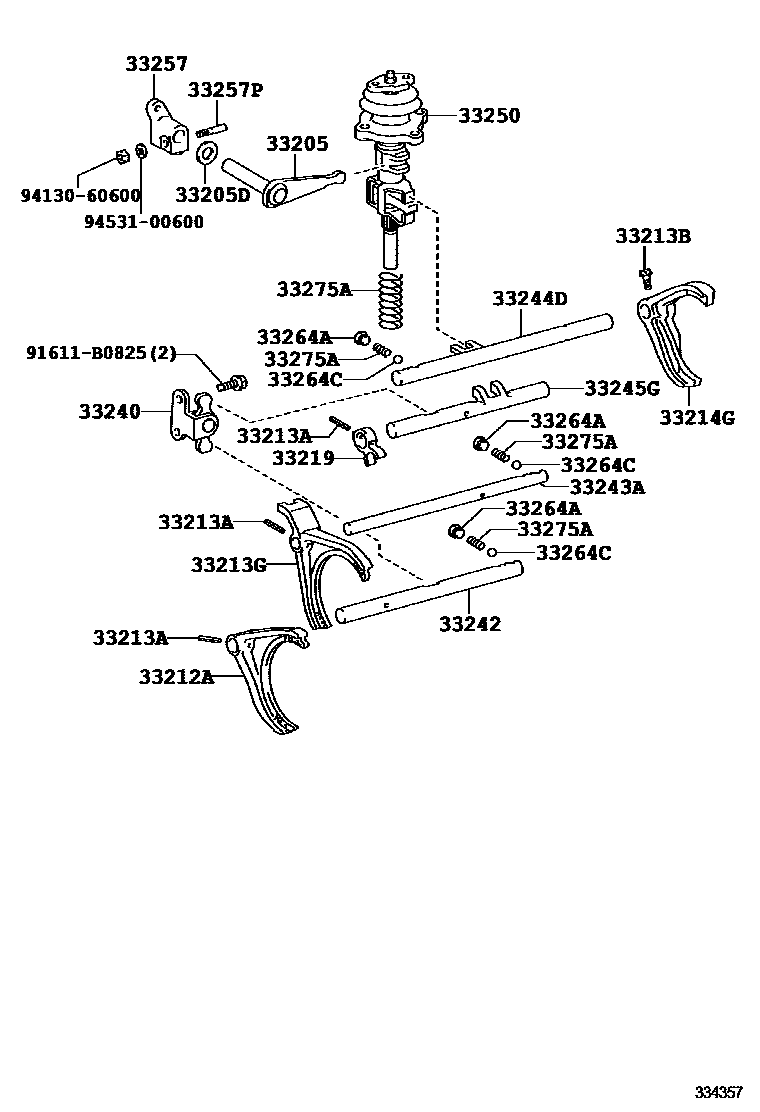

Toyota DYNA/TOYOACE HV — GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1M550 0002 1RE60,RE62

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-37040iXKU700,710,720201107-201805

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iXKU700,710,720201107-201805

33212AFORK, GEAR SHIFT, NO.1

main33210-37020iXKU700,710,720201107-201805

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05002iXKU700,710,720201107-201805

main90254-07003iXKU702,71#,72#..DCRWD201711-201905

33213BBOLT(FOR SHIFT FORK SET)

main90105-08211iXKU700,710,720..5F201107-201805

33213GFORK, GEAR SHIFT, NO.2

main33220-37020iXKU700,710,720201107-201805

33214GFORK, GEAR SHIFT, NO.3

main33214-36070iXKU700,710,720201309-201608

sub33214-37040

main33214-37020iXKU700,710,720201107-201309

sub33214-36070

main33214-37040iXKU700,710,720201608-201805

33219PLATE, SHIFT FORK LOCK

main33219-37010iXKU700,710,720201107-201805

33240BRACKET ASSY, REVERSE SHIFT ARM

main33240-37010iXKU700,710,720201107-201301

sub33240-37011

main33240-37011iXKU700,710,720201301-201805

main33240-37030iXKU702,71#,72#..6F201711-201905

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-37050iXKU700,710,720..5F201107-201805

main33242-37060iXKU702,71#,72#..6F201711-201902

sub33242-37061

main33242-37061iXKU702,71#,72#..6F201903-201905

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-37060iXKU700,710,720201107-201511

sub33243-37061

main33243-37061iXKU700,710,720201511-201805

main33243-37070iXKU702,71#,72#..DCWDO201711-201905

33244DSHAFT, GEAR SHIFT FORK, NO.3

main33244-37070iXKU700,710,720..5F201107-201805

main33244-37090iXKU702,71#,72#..DCWDO201711-201905

33245GSHAFT, GEAR SHIFT FORK, NO.4

main33245-37030iXKU700,710,720201107-201805

main33245-37050iXKU702,71#,72#..DCWDO201711-201905

33250SHAFT ASSY, SHIFT & SELECT LEVER

main33250-37050iXKU700,710,720201107-201109

sub33250-37051

main33250-37051iXKU700,710,720201109-201805

33257LEVER, SELECT OUTER

main33257-37120iXKU700,710,720201107-201805

main33257-37150iXKU702,71#,72#..6F201711-201905

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iXKU700,710,720201107-201805

33264APLUG, INTERLOCK HOLE

main90341-12008iXKU700,710,720201107-201905

33264CBALL (FOR SHIFT INTERLOCK)

main90360-10003iXKU700,710,720201107-201905

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14194iXKU702,71#,72#..DCRWD201107-201905

main90501-15055iXKU700,710,720..5F201107-201805

91611B0825

main91611-B0825

9413060600

main94130-60600

9453100600

main94531-00600

22 parts on this diagram · 2 diagrams in section
