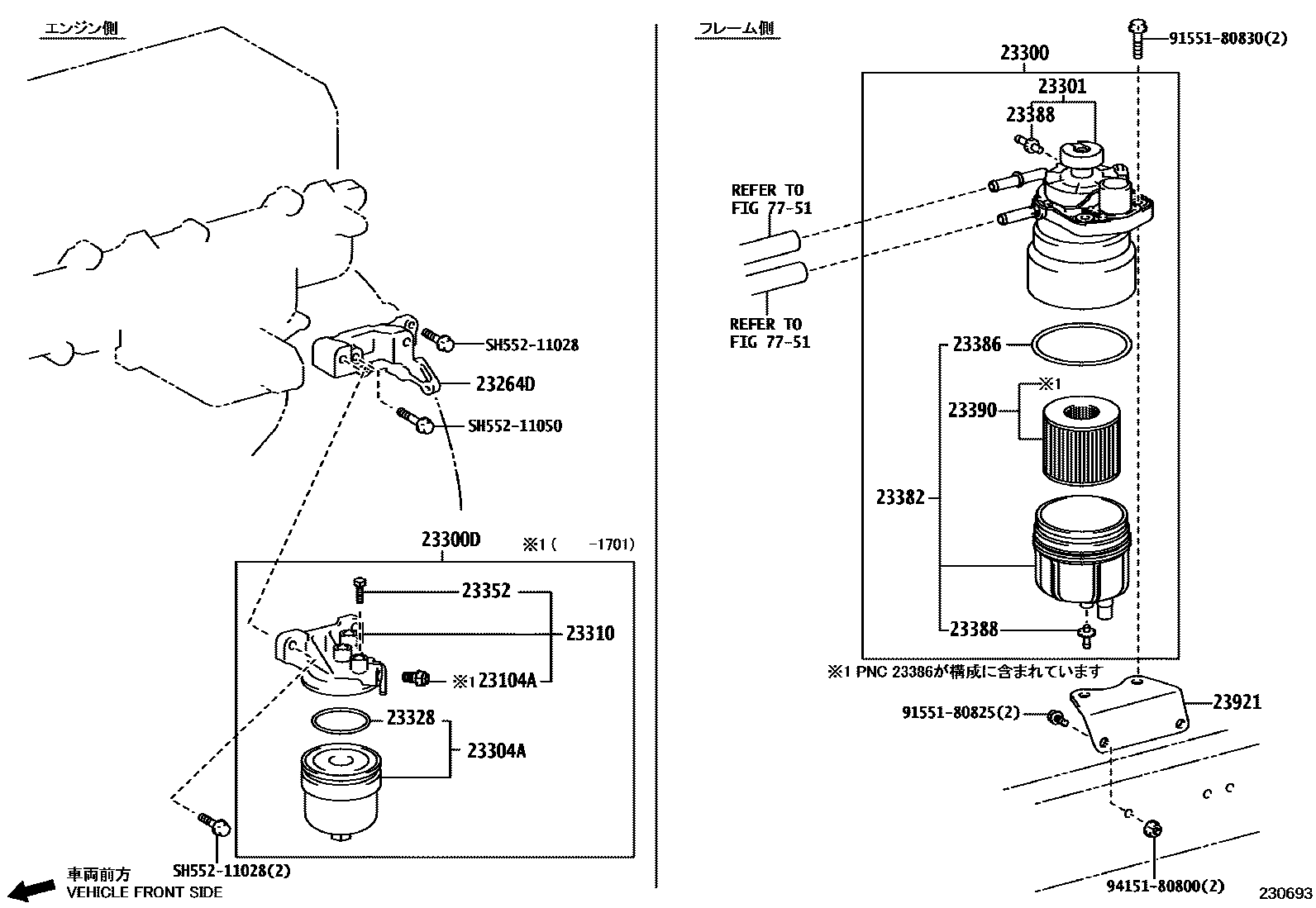

Toyota DYNA/TOYOACE HV — FUEL FILTER

0001 1 0002 1 0003 1������

23104AVALVE SUB-ASSY

main23104-EV010iN04C..XKU700,710,720201107-201701

23264DBRACKET, FUEL FILTER

main23264-78081iN04C..XKU700,710,720201107-201905

main23264-78090iN04C..XKU702,71#,72#..DCWDO201905

23300FILTER ASSY, FUEL

main23300-78222iN04C..XKU700,710,720201107-201311

sub23300-78223

main23300-78223iN04C..XKU700,710,720201312-201409

sub23300-78224

main23300-78224iN04C..XKU700,710,720201410-201503

sub23300-78225

main23300-78225iN04C..XKU700,710,720201504-201803

sub23300-78226

main23300-78226iN04C..XKU702,71#,72#..6F201804-201905

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-78420iN04C..XKU700,710,720201701-201905

main23300-78500iN04C..XKU702,71#,72#..DCRWD201905-202009

sub23300-78501

main23300-78501iN04C..XKU702,71#,72#..DCWDO202010

main23300-E0381iN04C..XKU700,710,720201107-201306

sub23300-E0382

main23300-E0382iN04C..XKU700,710,720201306-201401

sub23300-E0383

main23300-E0570iN04C..XKU700,710,720201401-201612

sub23300-78420

23301BODY SUB-ASSY, FUEL FILTER

main23301-78222iN04C..XKU700,710,720201107-201304

sub23301-78223

main23301-78223iN04C..XKU700,710,720201304-201312

sub23301-78224

main23301-78224iN04C..XKU700,710,720201312-201905

sub23301-78225

main23301-78500iN04C..XKU702,71#,72#201905-202101

sub23301-78501

main23301-78501iN04C..XKU702,71#,72#..DCRWD202101

23304AELEMENT SET, FUEL FILTER

main23304-78420iN04C..XKU700,710,720201701-201905

main23304-78500iN04C..XKU702,71#,72#..DCRWD201905-202010

sub23304-EV570

main23304-EV280iN04C..XKU700,710,720201107-201701

sub23304-78420

main23304-EV570iN04C..XKU702,71#,72#..DCRWD202010

23310BODY, FUEL FILTER, UPPER

main23310-78420iN04C..XKU700,710,720201701-201905

main23310-EV090iN04C..XKU700,710,720201107-201306

sub23310-EV091

main23310-EV091iN04C..XKU700,710,720201306-201701

23328GASKET(FOR FUEL FILTER)

main23385-78150iN04C..XKU702,71#,72#..DCWDO201905

main23385-78420iN04C..XKU700,710,720..5F201701-201905

main23385-E0020iN04C..XKU700,710,720201107-201701

23352PLUG, BLEEDER

main23388-78420iN04C..XKU700,710,720201701-201905

main23388-EV020iN04C..XKU702,71#,72#..DCRWD201905

mainS233161040iN04C..XKU700,710,720201107-201701

sub23322-78030

23382CASE, FUEL FILTER

main23382-78151iN04C..XKU702,71#,72#..DCRWD201905-201912

sub23382-78152

main23382-78152iN04C..XKU702,71#,72#..DCWDO201912

main23382-78222iN04C..XKU700,710,720201107-201410

sub23382-78223

main23382-78223iN04C..XKU702,71#,72#..6F201410-201905

23386GASKET, FUEL FILTER CASE

main23386-78220iN04C..XKU700,710,720201107-201905

23388PLUG, FUEL FILTER DRAIN

main23388-78222iN04C..XKU700,710,720201107-201905

main23388-EV020iN04C..XKU702,71#,72#..DCRWD201905

23390ELEMENT ASSY, FUEL FILTER

main23304-78150iN04C..XKU702,71#,72#..DCWDO201905

main23304-78222iN04C..XKU700,710,720201209-201504

sub23304-78225

main23304-78225iN04C..XKU700,710,720..5F201504-201905

main23390-78221iN04C..XKU700,710,720201107-201209

sub23304-78222

23921SUPPORT, FUEL FILTER

main23921-78420iN04C..XKU700,710,720201107-201905

main23921-78680iN04C..XKU702,71#,72#..DCRWD201905

7751

9155180825

main91551-80825

9155180830

main91551-80830

9415180800

main94151-80800

SH55211028

mainSH552-11028

SH55211050

mainSH552-11050

20 parts on this diagram · 3 diagrams in section
