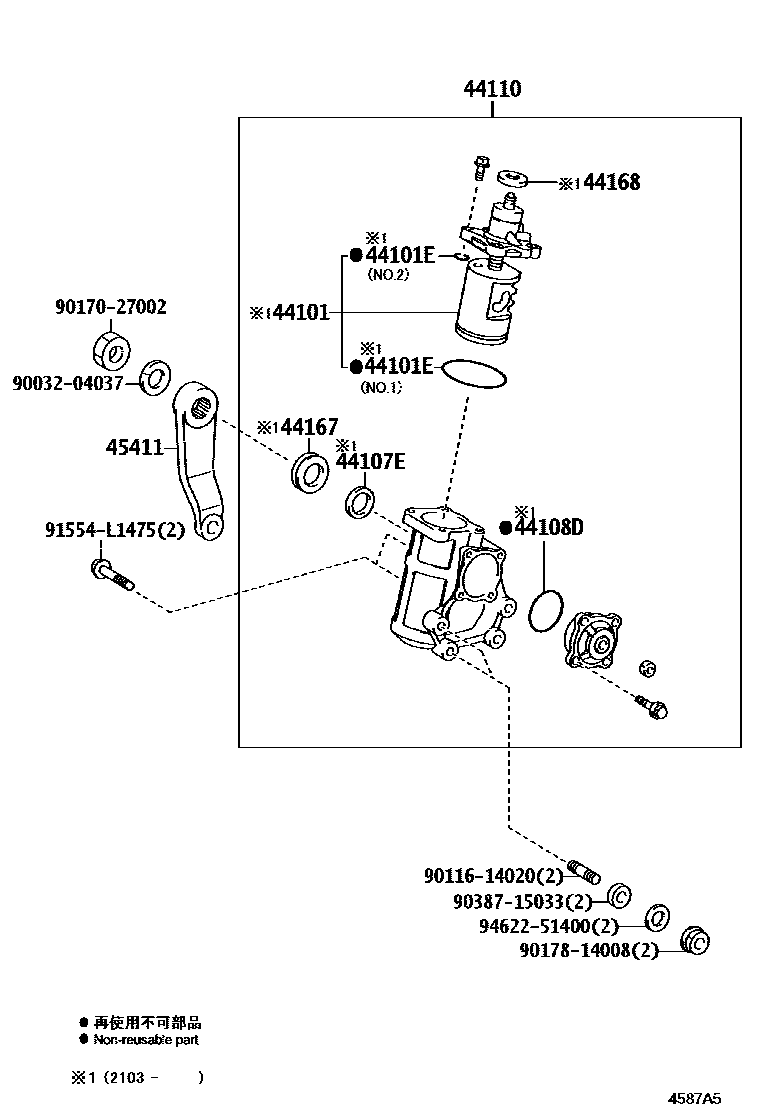

Toyota DYNA/TOYOACE HV — FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

44101WORM SUB-ASSY, STEERING

main44101-37051iXKU702,71#,72#..DCWDO202103

44101ERING, O(FOR STEERING WORM)

main44999-37030iXKU702,71#,72#..DCWDO202103

main44999-37040iXKU702,71#,72#..DCWDO202103

44107ESEAL, OIL(FOR POWER STEERING GEAR HOUSING)

main45333-37010iXKU702,71#,72#..DCWDO202103

44108DRING, O(FOR SECTOR COVER)

main44999-37050iXKU702,71#,72#..DCWDO202103

44110GEAR ASSY, POWER STEERING

main44110-37280iXKU700,710,720201107-201710

sub44110-37281

main44110-37281iXKU702,71#,72#..DCRWD201711-201905

44167COVER, SECTOR SHAFT DUST

main45222-37050iXKU702,71#,72#..DCWDO202103

44168COVER, WORM SHAFT DUST

main45222-37040iXKU702,71#,72#..DCWDO202103

45411ARM, PITMAN

main45411-37240iXKU710,720..5F..20T201107-201905

main45411-37250iXKU702,712,722..DCWDO201107-201905

9003204037

main90032-04037

9011614020

main90116-14020

9017027002

main90170-27002

9017814008

main90178-14008

9038715033

main90387-15033

91554L1475

main91554-L1475

9462251400

main94622-51400

15 parts on this diagram · 3 diagrams in section
