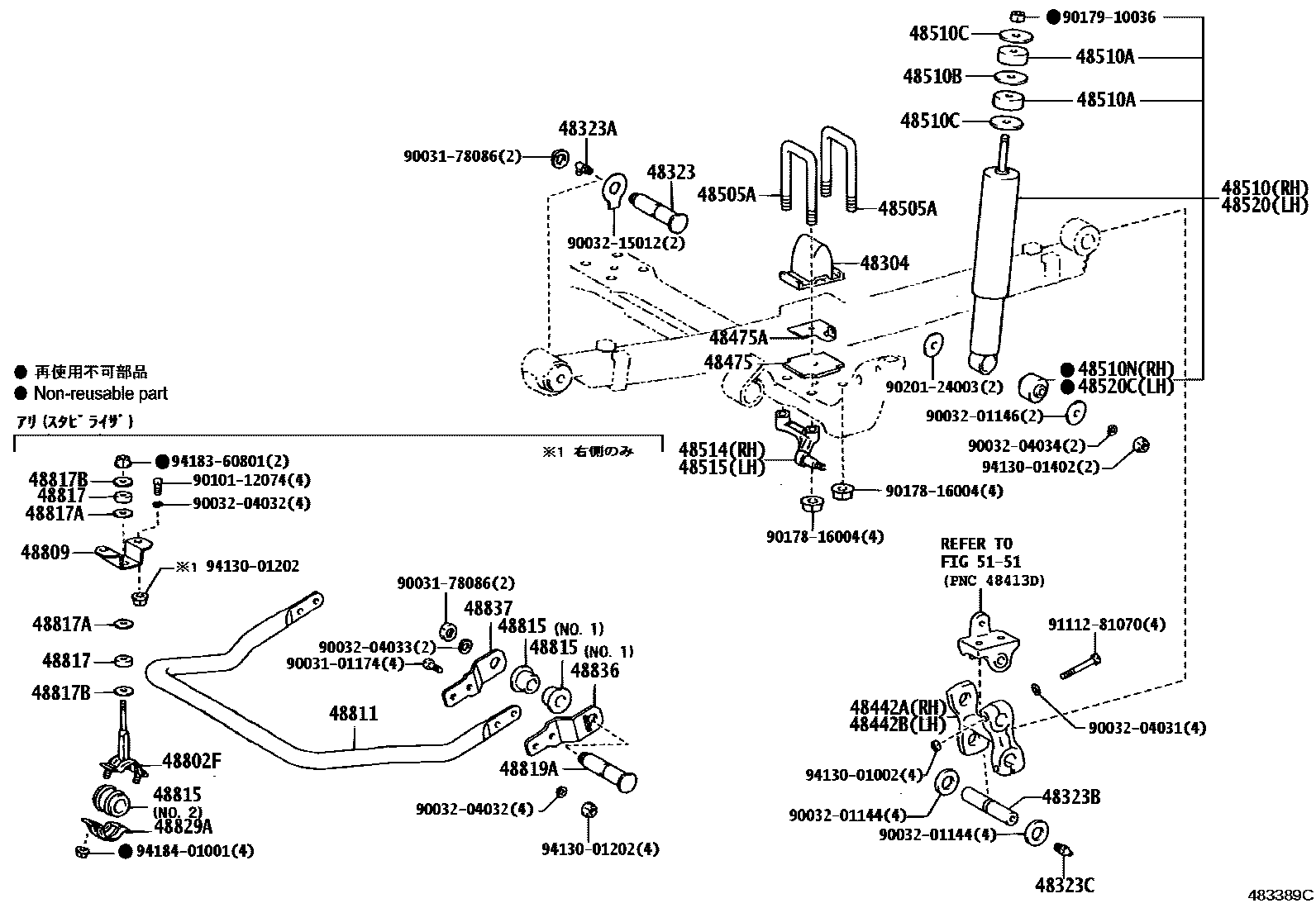

Toyota DYNA/TOYOACE HV — FRONT SPRING & SHOCK ABSORBER
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
48323PIN, FRONT SPRING BRACKET, FRONT
48323ANIPPLE, GREASE(FOR FRONT SPRING BRACKET, FRONT PIN)
48323BPIN, FRONT SPRING BRACKET, REAR
48323CNIPPLE, GREASE(FOR FRONT SPRING BRACKET, REAR PIN)
48442ASHACKLE, FRONT SPRING, RH
48442BSHACKLE, FRONT SPRING, LH
48475PLATE, DISTANCE(FOR FRONT)
48475APLATE, DISTANCE NO.2(FOR FRONT)
48505ABOLT, U(FOR FRONT SPRING)
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48802FLINK SUB-ASSY, FRONT STABILIZER
48809BRACKET SUB-ASSY, STABILIZER
main48809-37021
48811BAR, STABILIZER, FRONT
main48811-37070
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48819ABOLT, FRONT STABILIZER
48829ABRACKET, FRONT STABILIZER, NO.1 LH
48836BRACKET, FRONT STABILIZER END, RH
main48836-37050
48837BRACKET, FRONT STABILIZER END, LH
main48837-37030
5151
9003101174
main90031-01174
9003178086
main90031-78086
9003201144
main90032-01144
9003201146
main90032-01146
9003204031
main90032-04031
9003204032
main90032-04032
9003204033
main90032-04033
9003204034
main90032-04034
9003215012
main90032-15012
9010112074
main90101-12074
9017816004
main90178-16004
9017910036
main90179-10036
9020124003
main90201-24003
9111281070
main91112-81070
9413001002
main94130-01002
9413001202
main94130-01202
9413001402
main94130-01402
9418360801
main94183-60801
9418401001
main94184-01001
50 parts on this diagram · 35 diagrams in section
