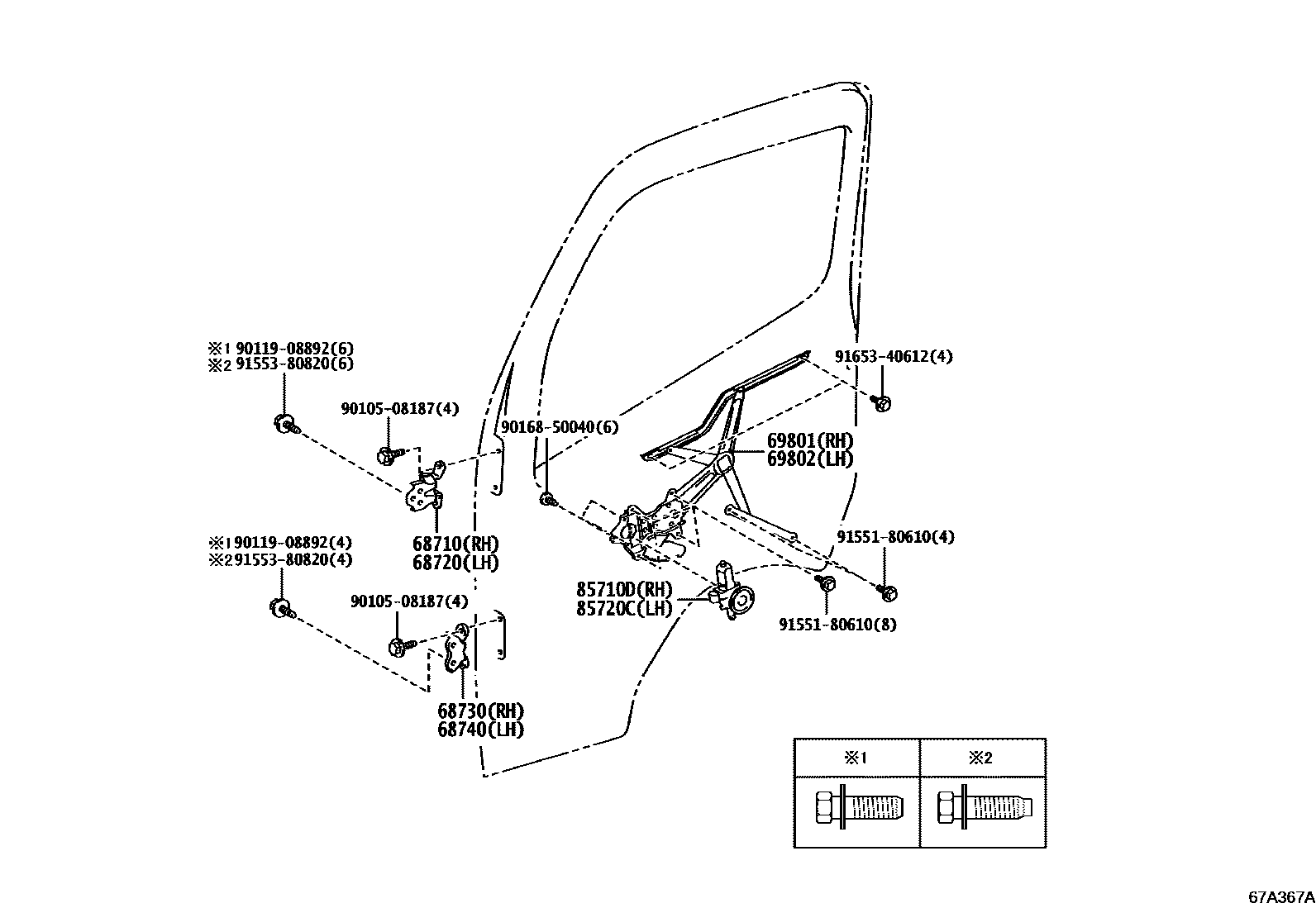

Toyota DYNA/TOYOACE HV — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-26022iXKU700,710,720201107-201905

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-26012iXKU700,710,720201107-201905

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-37060iXKU700,710,720201107-201905

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-37030iXKU700,710,720201107-201905

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37080iXKU700,710,720201107-201905

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37080iXKU700,710,720201107-201905

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37080iXKU700,710,720201107-201905

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37110iXKU700,710,720201107-201905

9010508187

main90105-08187

9011908892

main90119-08892

9016850040

main90168-50040

9155180610

main91551-80610

9155380820

main91553-80820

9165340612

main91653-40612

14 parts on this diagram · 1 diagram in section
