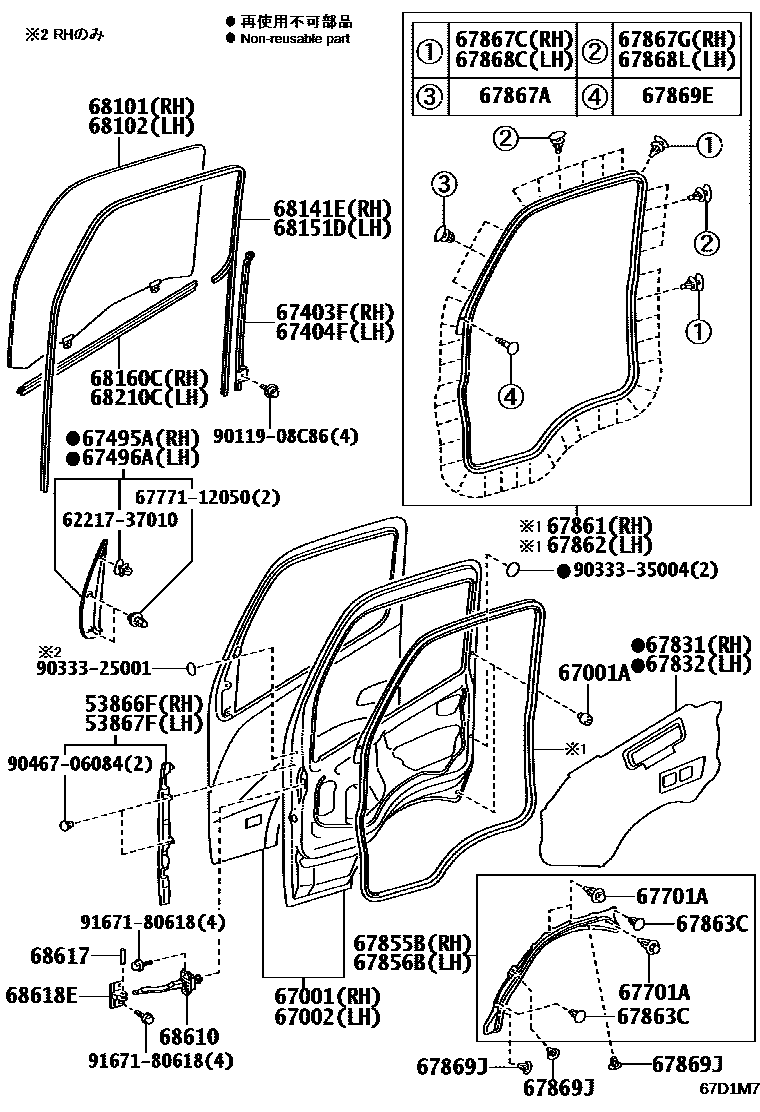

Toyota DYNA/TOYOACE HV — FRONT DOOR PANEL & GLASS
53866FSEAL, FRONT FENDER TO COWL SIDE, RH
53867FSEAL, FR FENDER TO COWL SIDE, LH
67001ACUSHION, FRONT DOOR PANEL
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67701ACLIP(FOR FRONT DOOR TRIM COVER)
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863CCLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869ECLIP, FRONT DOOR WEATHERSTRIP
67869JCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141ERUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68610CHECK ASSY, FRONT DOOR
68617PIN, FRONT DOOR CHECK
68618EBRACKET, FRONT DOOR CHECK ARM
6221737010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-37010
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
9011908C86
main90119-08C86
9033325001
main90333-25001
9033335004
main90333-35004
9046706084
main90467-06084
9167180618
main91671-80618
40 parts on this diagram · 2 diagrams in section
