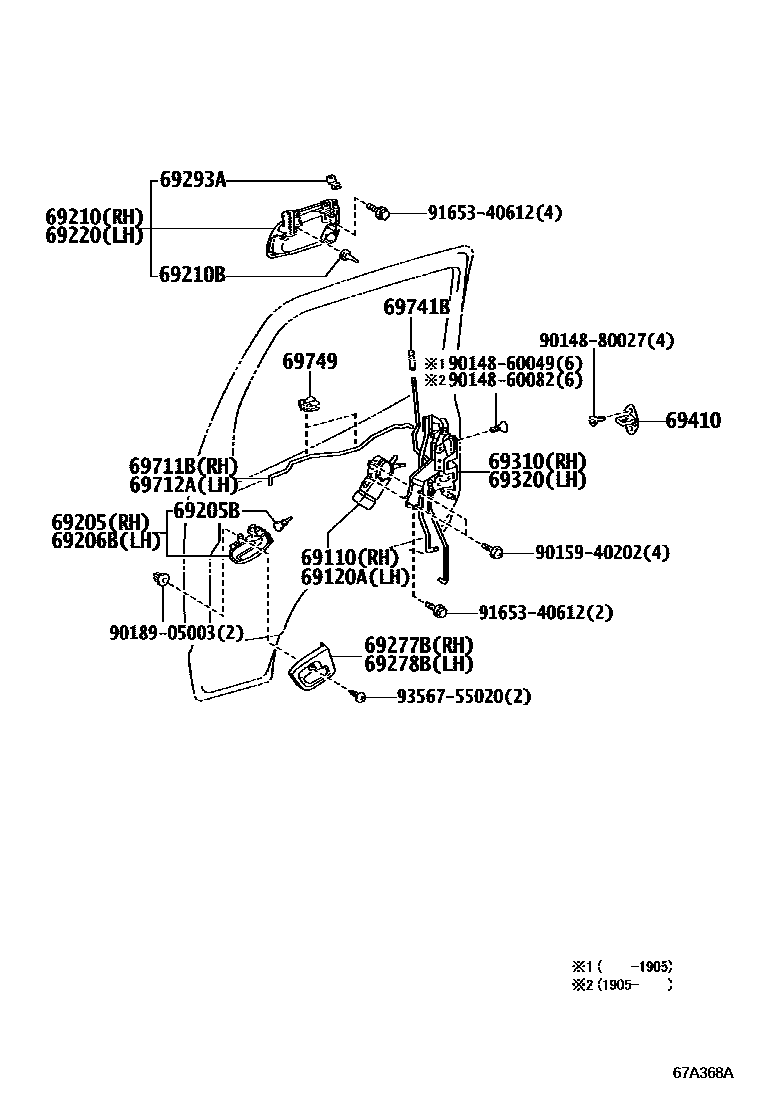

Toyota DYNA/TOYOACE HV — FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-37070iXKU700,710,720..5F201107-201905

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-37080iXKU700,710,720201107-201905

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-37050-C0iXKU700,710,720201107-201905

BLACK,TRIM1#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iXKU700,710,720201107-201905

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-37050-C0iXKU700,710,720201107-201905

BLACK,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-37020iXKU700,710,720201107-201905

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04015iXKU700,710,720201107-201905

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-37020iXKU700,710,720201107-201905

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-37020-C0iXKU700,710,720201107-201905

BLACK,TRIM1#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-37020-C0iXKU702,71#,72#..6F201107-201905

BLACK,TRIM1#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iXKU700,710,720201107-201905

main69293-12060iXKU702,71#,72#..DCWDO201107-201905

69310LOCK ASSY, FRONT DOOR, RH

main69310-37150iXKU700,710,720201107-201905

69320LOCK ASSY, FRONT DOOR, LH

main69320-37150iXKU700,710,720201107-201905

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iXKU702,71#,72#..6F201107-201905

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-37040iXKU700,710,720201107-201905

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-37050iXKU700,710,720201107-201905

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-37010-C0iXKU700,710,720201107-201905

BLACK,TRIM1#

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070iXKU700,710,720201107-201905

9014860049

main90148-60049

9014860082

main90148-60082

9014880027

main90148-80027

9015940202

main90159-40202

9018905003

main90189-05003

9165340612

main91653-40612

9356755020

main93567-55020

25 parts on this diagram · 1 diagram in section
