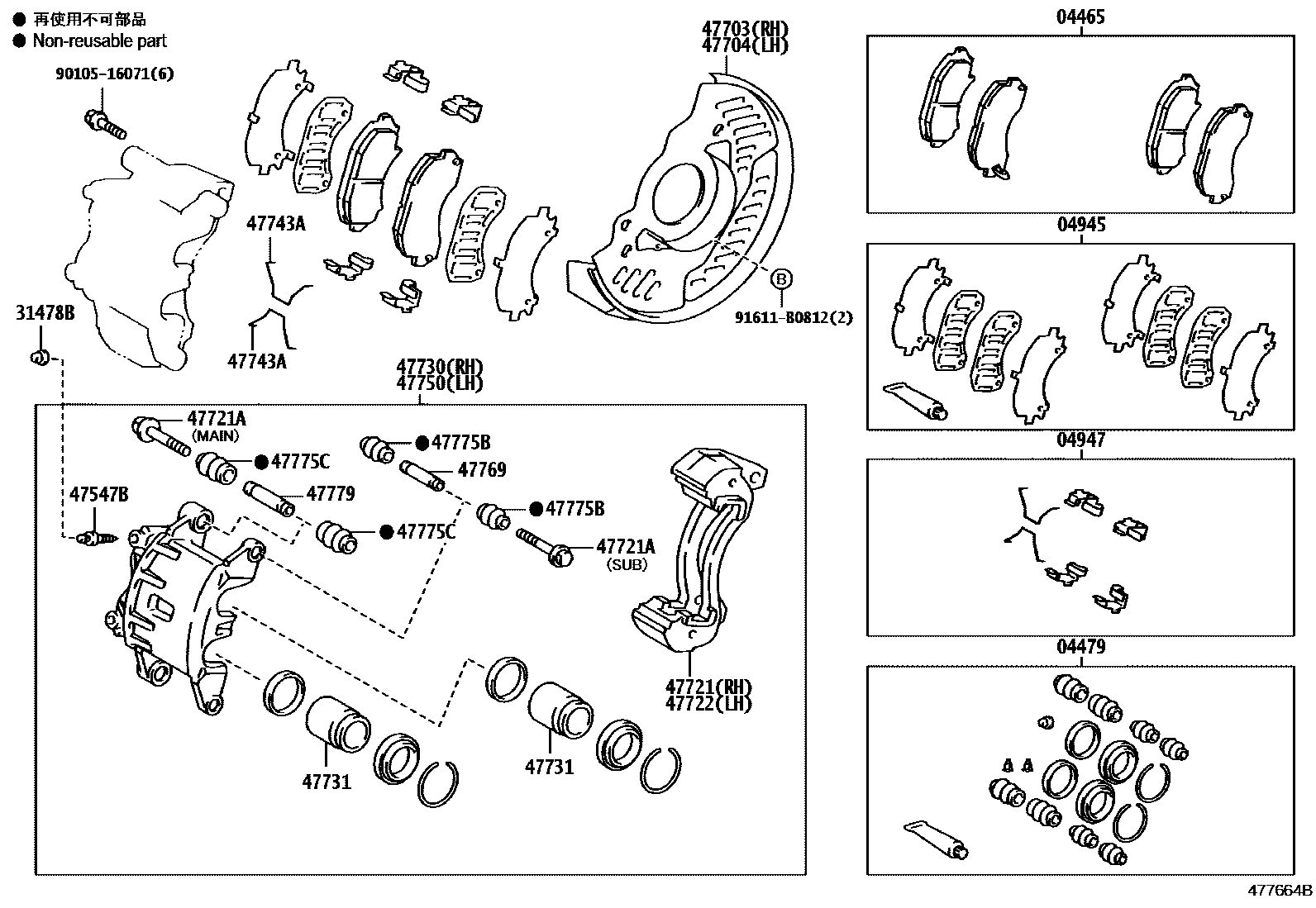

Toyota DYNA/TOYOACE HV — FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-37230iXKU702,712,722201107-201905

main04465-37250iXKU710,720..DCWDO201107-201905

04479CYLINDER KIT, DISC BRAKE, FRONT

main0447B-37021iXKU710,720..20T201107-201905

main0447B-37030iXKU702,712,722201107-201905

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-37030iXKU710,720..5F..20T201107-201905

main04945-37050iXKU700,710,720..30T,35T,40T201107-201309

sub04945-37051

main04945-37051iXKU700,710,720..30T,35T,40T201309-201905

main04945-37230iXKU710,720..DCWDO201905

04947FITTING KIT, DISC BRAKE, FRONT

main0494A-37020iXKU710,720..20T201107-201905

main0494A-37030iXKU702,712,722..DCRWD201107-201905

main0494A-37050iXKU710,720..DCWDO201905

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iXKU710,720..6F201107-201905

main31478-37030iXKU702,712,722201107-202006

mainS475381190iXKU702,712,722..DCWDO202006

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iXKU710,720..20T201107-201905

main47847-37030iXKU702,712,722201107-202006

mainS475371360iXKU702,712,722..DCWDO202006

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-37030iXKU710,720..DCRWD201107-202002

sub47703-37031

main47703-37031iXKU710,720..DCWDO202003

main47781-37070iXKU700,710,720..30T,35T,40T201107-201905

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-37030iXKU710,720..6F201107-202002

sub47704-37031

main47704-37031iXKU710,720..DCWDO202003

main47781-37070iXKU700,710,720..30T,35T,40T201107-201905

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-37030iXKU710,720..5F..20T201107-201905

main47721-37120iXKU702,712,722..DCWDO201107-201905

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-37120iXKU702,712,722..DCRWD201107-201905

main90119-08B87iXKU710,720..20T201107-201905

main90119-12256iXKU710,720..6F201107-201905

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-37020iXKU710,720..5F..20T201107-201905

main47722-37120iXKU702,712,722..DCWDO201107-201905

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-37030iXKU710,720..20T201107-201905

main47730-37121iXKU700,710,720..30T,35T,40T201107-201702

sub47730-37122

main47730-37122iXKU702,712,722201702-201905

47731PISTON, FRONT DISC BRAKE

main47731-36020iXKU710,720..DCRWD201912

main47731-37010iXKU710,720..5F..20T201107-201911

sub47731-36020

main47731-37120iXKU702,712,722..DCRWD201107-201905

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020iXKU710,720..20T201107-201905

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-37030iXKU710,720..20T201107-201905

main47750-37121iXKU700,710,720..30T,35T,40T201107-201702

sub47750-37122

main47750-37122iXKU702,712,722..DCRWD201702-201905

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030iXKU710,720..DCRWD201107-201905

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-37121iXKU700,710,720..30T,35T,40T201107-201905

47775BBOOT, BUSH DUST, NO.1

main47775-36040iXKU710,720..20T201107-201905

47775CBOOT, BUSH DUST, NO.2

main47775-36050iXKU710,720..20T201107-201905

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010iXKU710,720..20T201107-201905

9010516071

main90105-16071

91611B0812

main91611-B0812

22 parts on this diagram · 3 diagrams in section
