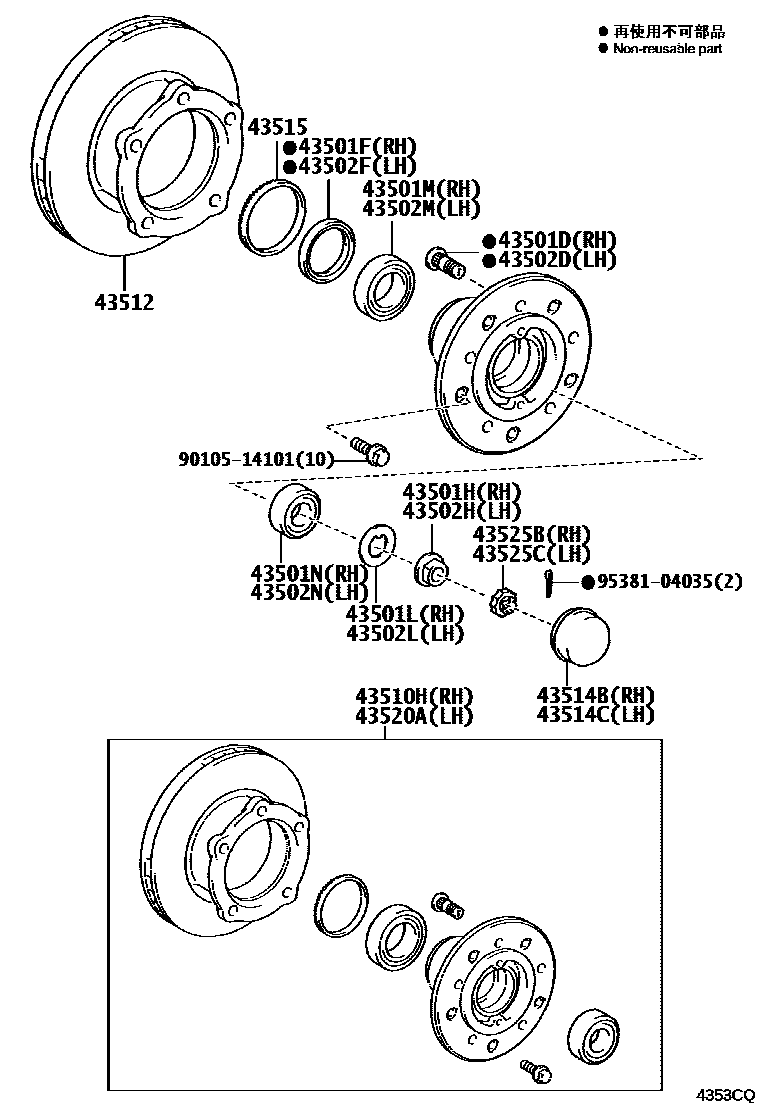

Toyota DYNA/TOYOACE HV — FRONT AXLE HUB

0001 1 0002 1

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02071iXKU702,71#,72#..DCWDO201107-201905

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90033-19009iXKU700,710,720..30T,35T,40T201107-201905

main90311-68003iXKU710,720..DCWDO201107-201905

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90171-33001iXKU702,712,722..DCWDO201107-202412

main90178-28001iXKU710,720..6F201107-201905

mainSZ18633002iXKU702,712,722..DCWDO202412

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-29001iXKU710,720..6F201107-201905

main90214-33001iXKU700,710,720..30T,35T,40T201107-202104

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-50069iXKU710,720..20T201107-201905

main90368-50001iXKU702,712,722..DCRWD201107-201905

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90033-66032iXKU700,710,720..30T,35T,40T201107-202411

main90366-35105iXKU710,720..20T201107-201905

mainSZ36635018iXKU702,712,722..DCWDO202412

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02072iXKU700,710,720201107-201905

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90033-19009iXKU700,710,720..30T,35T,40T201107-201905

main90311-68003iXKU710,720..5F..20T201107-201905

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90171-33001iXKU702,712,722..DCWDO201107-202412

main90178-28001iXKU710,720..6F201107-201905

mainSZ18633002iXKU702,712,722..DCWDO202412

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-29001iXKU710,720..DCWDO201107-201905

main90214-33001iXKU700,710,720..30T,35T,40T201107-202104

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-50069iXKU710,720..20T201107-201905

main90368-50001iXKU702,712,722201107-201905

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90033-66032iXKU702,712,722..DCRWD201107-202411

main90366-35105iXKU710,720..6F201107-201905

mainSZ36635018iXKU702,712,722..DCWDO202412

43510HHUB & DISC(DRUM) ASSY, FRONT AXLE, RH

main43510-39205iXKU710,720..6F201107-202405

sub43510-39207

sub43514-37060

main43510-39207iXKU710,720..DCWDO202405

main43510-39255iXKU700,710,720..30T,35T,40T201107-201502

sub43510-39485

main43510-39485iXKU700,710,720..30T,35T,40T201502-201905

43512DISC, FRONT

main43512-37090iXKU710,720..20T201107-201410

sub43512-37091

main43512-37091iXKU710,720..DCRWD201411-201905

main43512-37120iXKU700,710,720..30T,35T,40T201107-201410

sub43512-37121

main43512-37121iXKU702,712,722..DCRWD201411-201905

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-37030iXKU710,720..20T201107-201304

main43514-37040iXKU700,710,720..30T,35T,40T201107-201905

main43514-37050iXKU710,720..DCWDO201305-202404

main43514-37060iXKU710,720..DCWDO202405

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-37030iXKU710,720..20T201107-201304

main43514-37040iXKU700,710,720..30T,35T,40T201107-201905

main43514-37050iXKU710,720..6F201305-202404

main43514-37060iXKU710,720..DCWDO202405

43515ROTOR, SKID CONTROL, FRONT

main43515-37010iXKU710,720..DCWDO201107-201905

main43515-37030iXKU702,712,722201107-201905

43520AHUB & DISC(DRUM) ASSY, FRONT AXLE, LH

main43520-39185iXKU710,720..6F201107-202405

sub43520-39186

sub43514-37060

main43520-39186iXKU710,720..DCWDO202405

main43520-39235iXKU700,710,720..30T,35T,40T201107-201502

sub43520-39465

main43520-39465iXKU702,712,722..DCRWD201502-201905

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-37010iXKU710,720..5F..20T201107-201905

mainSZ93002008iXKU702,712,722..DCWDO202412

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-37010iXKU710,720..DCRWD201107-201905

mainSZ93002008iXKU702,712,722..DCWDO202412

9010514101

main90105-14101

9538104035

main95381-04035

22 parts on this diagram · 2 diagrams in section
