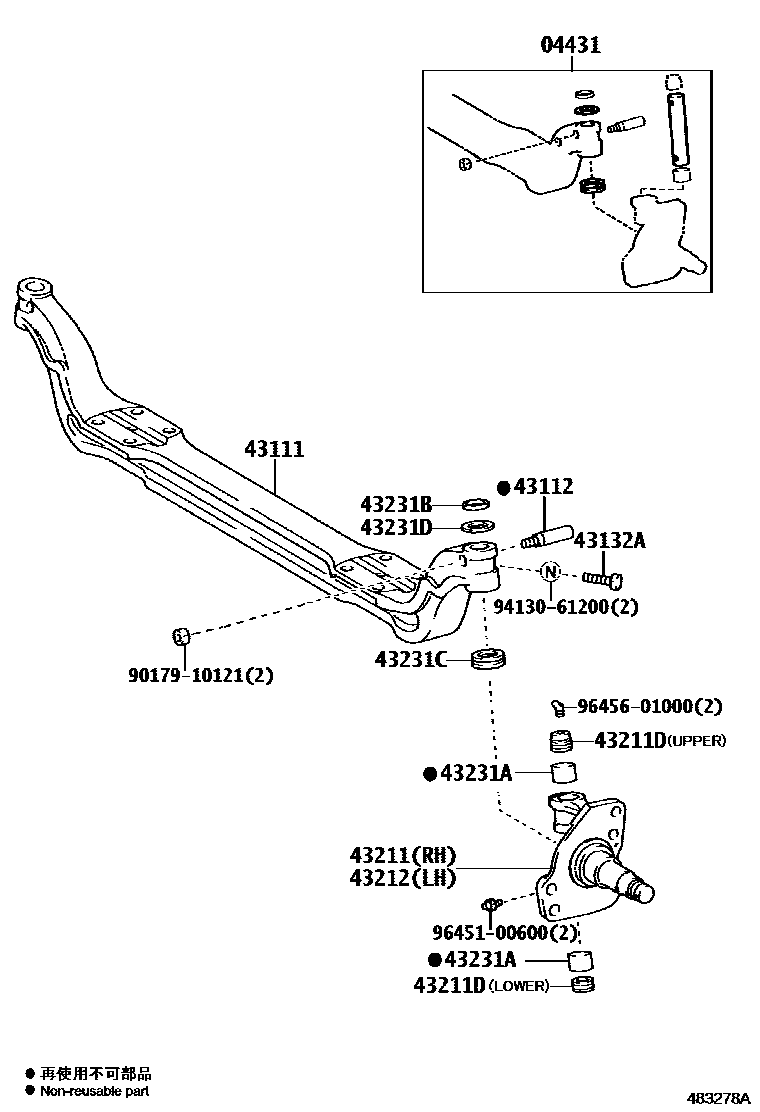

Toyota DYNA/TOYOACE HV — FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04431PIN KIT, STEERING KNUCKLE KING

main0443C-37010iXKU710,720..DCRWD201612-201905

main0443C-37020iXKU710,720..20T201107-201612

sub0443C-37010

main0443C-37030iXKU700,710,720..30T,35T,40T201107-201905

43111I BEAM, FRONT AXLE

main43111-37051iXKU710,720..20T201107-201905

main43111-37080iXKU702,712,722..DCWDO201107-201905

43112PIN, KING PIN LOCK

main43112-36020iXKU710,720..5F..20T201107-201905

main43112-36030iXKU702,712,722..DCWDO201107-201905

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-12001iXKU710,720..20T201107-201905

43211KNUCKLE, STEERING, RH

main43201-37100iXKU700,710,720..30T,35T,40T201107-202412

main43201-37101iXKU702,712,722..DCWDO202412

main43201-37110iXKU710,720..DCWDO201107-201905

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33003iXKU710,720..6F201107-201905

main90345-33004iXKU710,720..6F201107-201905

43212KNUCKLE, STEERING, LH

main43202-37100iXKU702,712,722201107-202412

main43202-37101iXKU702,712,722..DCWDO202412

main43202-37110iXKU710,720..DCRWD201107-201905

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90384-35013iXKU700,710,720..30T,35T,40T201107-202409

main90384-35014iXKU702,712,722201107-202409

main90384-35014iXKU702,712,722..DCWDO202409

main90999-73086iXKU710,720..DCWDO201107-202204

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main90312-28003iXKU710,720..DCWDO201107-201905

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-28001iXKU710,720..20T201107-201905

main90367-35001iXKU702,712,722..DCRWD201107-201905

43231DSHIM (FOR KING PIN)

main90032-09022iXKU700,710,720..30T,35T,40T201107-201905

main90032-09023iXKU702,712,722..DCRWD201107-201905

main90032-09024iXKU702,712,722..DCWDO201107-201905

main90032-09025iXKU702,712,722201107-201905

main90032-09026iXKU700,710,720..30T,35T,40T201107-201905

main90032-09027iXKU702,712,722201107-201905

main90032-09028iXKU700,710,720..30T,35T,40T201107-201905

main90032-09029iXKU702,712,722..DCRWD201107-201905

main90564-28001iXKU710,720..6F201107-201905

main90564-28002iXKU710,720..DCRWD201107-201905

main90564-28003iXKU710,720..20T201107-201905

main90564-28004iXKU710,720..DCRWD201107-201905

main90564-28005iXKU710,720..20T201107-201905

main90564-28006iXKU710,720..DCRWD201107-201905

main90564-28007iXKU710,720..DCRWD201107-201905

main90564-28008iXKU710,720..5F..20T201107-201905

9017910121

main90179-10121

9413061200

main94130-61200

9645100600

main96451-00600

9645601000

main96456-01000

15 parts on this diagram · 2 diagrams in section
