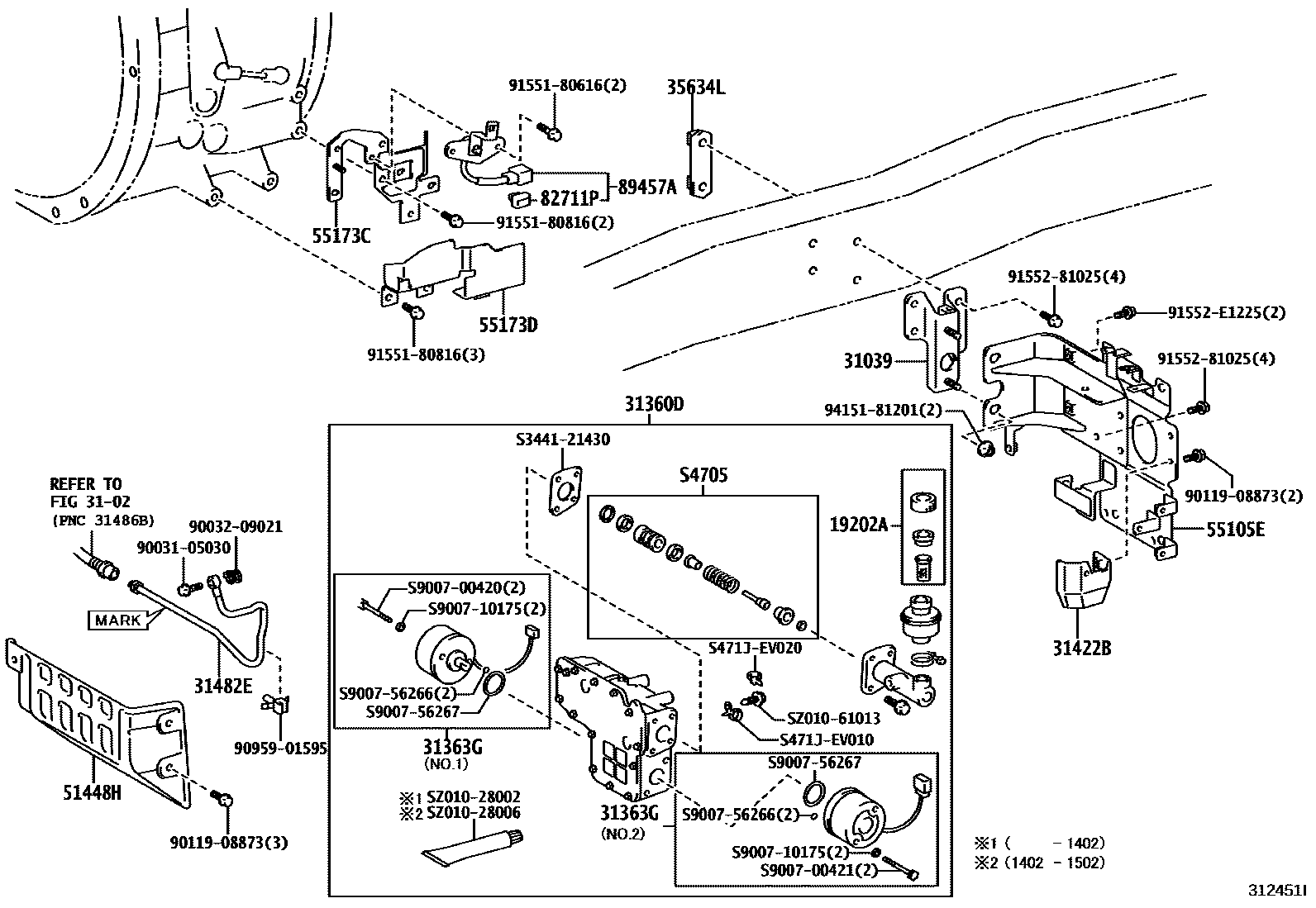

Toyota DYNA/TOYOACE HV — FREE TRONIC

0001 1 0002 1

19202ACAP KIT(FOR CLUTCH ACTUATOR)

main19202-EV010iN04C..XKU700,710,720201107-201905

3102

31039SUPPORT SUB-ASSY, CLUTCH RELEASE SECTOR

main31039-37010iXKU700,710,720201107-201905

main31039-37031iXKU702,71#,72#..DCRWD201905

31360DACTUATOR ASSY, CLUTCH

main31360-37011iXKU700,710,720201107-201307

sub31360-37012

main31360-37012iXKU700,710,720201308-201402

sub31360-37013

main31360-37013iXKU700,710,720201402-201409

sub31360-37014

main31360-37014iXKU700,710,720201410-201501

sub31360-37015

main31360-37015iXKU700,710,720201502-201505

sub31360-37018

main31360-37018iXKU700,710,720201505-201905

main31360-37020iXKU702,71#,72#..DCRWD201905

31363GMOTOR, CLUTCH ACTUATOR

main31363-37010iXKU702,71#,72#..DCRWD201905

main31363-EV010iXKU700,710,720201107-201308

sub31363-EV011

main31363-EV011iXKU700,710,720201308-201402

sub31363-EV012

main31363-EV012iXKU700,710,720201402-201410

sub31363-EV013

main31363-EV013iXKU700,710,720201410-201505

sub31363-EV014

main31363-EV014iXKU70#,71#,72#201505-201905

main31363-EV030iXKU700,710,720201107-201308

sub31363-EV031

main31363-EV031iXKU700,710,720201308-201402

sub31363-EV032

main31363-EV032iXKU700,710,720201402-201410

sub31363-EV033

main31363-EV033iXKU700,710,720201410-201505

sub31363-EV034

main31363-EV034iXKU700,710,720201505-201704

sub31363-EV110

main31363-EV110iXKU70#,71#,72#201704-201905

31422BBRACKET, CLUTCH RESERVOIR

main31422-37010iXKU700,710,720201107-201905

main31422-37030iXKU702,71#,72#..DCWDO201905

31482ETUBE, CLUTCH RELEASE, NO.1

main31482-37401iXKU700,710,720201107-201905

main31482-37431iXKU702,71#,72#..DCRWD201905

35634LPLATE, CLUTCH, NO.1

main35634-37020iXKU700,710,720201107-201905

51448HPROTECTOR, MOTOR UNDER SIDE

main51448-37160iXKU700,710,720201107-201905

main51448-37300iXKU702,71#,72#..DCRWD201905

55105ESUPPORT SUB-ASSY, CLUTCH MASTER CYLINDER

main55105-37081iXKU700,710,720201107-201905

55173CBRACKET, ELECTRICAL PART

main55173-37270iXKU700,710,720201107-201905

55173DBRACKET, ELECTRICAL PART, NO.2

main55173-37280iXKU700,710,720201107-201109

sub55173-37281

main55173-37281iXKU700,710,720201110-201405

sub55173-37282

main55173-37282iXKU700,710,720201406-201706

sub55173-37283

main55173-37283iXKU700,710,720..5F201707-201905

82711PCLAMP, WIRING HARNESS

main82711-35280iXKU700,710,720201107-201905

89457ASTROKE SENSOR, CLUTCH

main89457-37020iXKU700,710,720201107-201905

S4705REPAIR KIT, CUP

mainS470591370iXKU700,710,720201107-201905

9003105030

main90031-05030

9003209021

main90032-09021

9011908873

main90119-08873

9095901595

main90959-01595

9155180616

main91551-80616

9155180816

main91551-80816

9155281025

main91552-81025

91552E1225

main91552-E1225

9415181201

main94151-81201

S344121430

mainS3441-21430

S471JEV010

mainS471J-EV010

S471JEV020

mainS471J-EV020

S900700420

mainS9007-00420

S900700421

mainS9007-00421

S900710175

mainS9007-10175

S900756266

mainS9007-56266

S900756267

mainS9007-56267

SZ01028002

mainSZ010-28002

SZ01028006

mainSZ010-28006

SZ01061013

mainSZ010-61013

35 parts on this diagram · 2 diagrams in section
