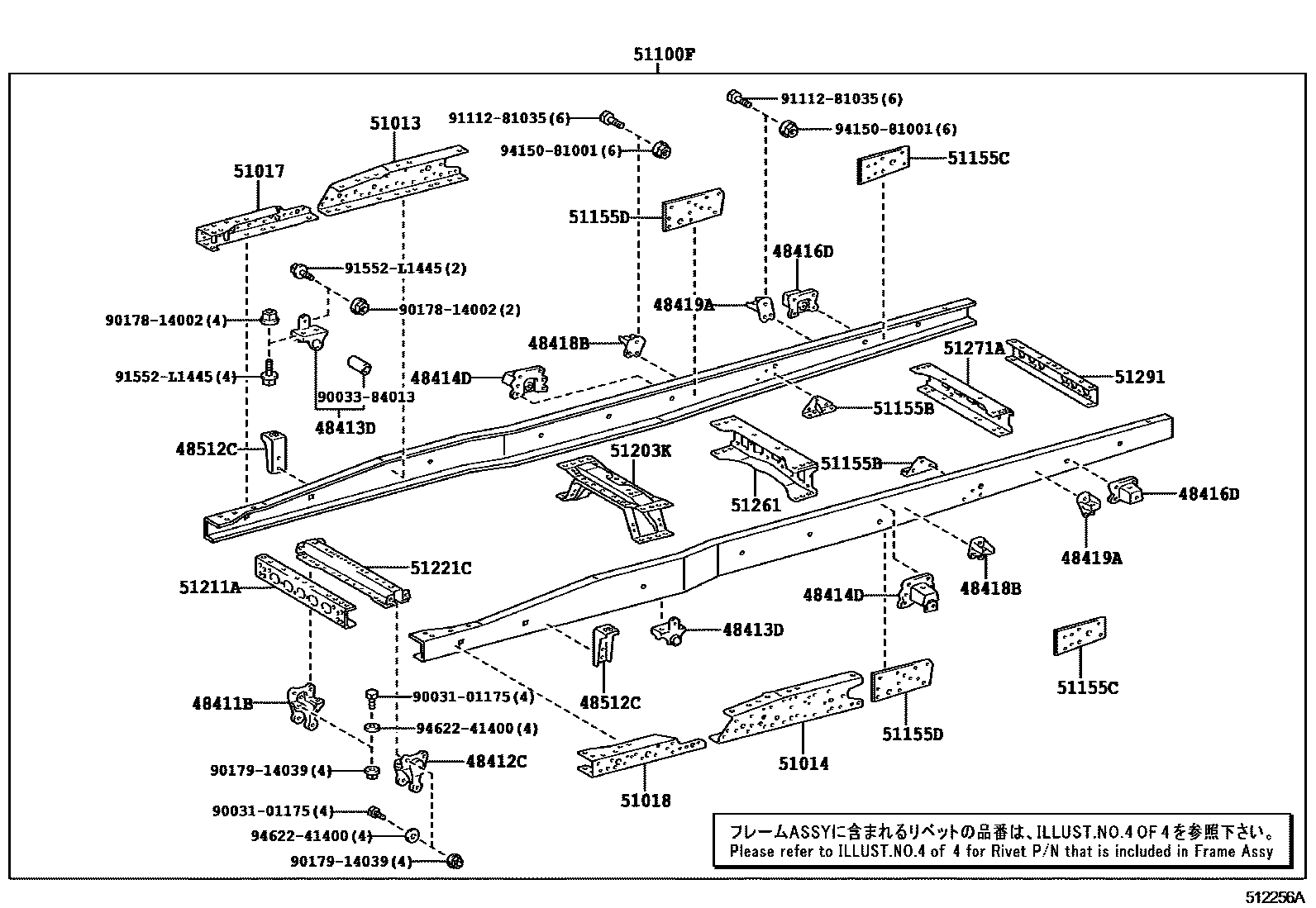

Toyota DYNA/TOYOACE HV — FRAME
48411BBRACKET, SPRING, NO.1 RH
48412CBRACKET, SPRING, NO.1 LH
48413DBRACKET, SPRING, NO.2
48414DBRACKET, SPRING, NO.3
48416DBRACKET, SPRING, NO.4
48418BBRACKET, SPRING, NO.6
48419ABRACKET, SPRING, NO.7
48512CBRACKET, FRONT SHOCK ABSORBER, UPPER
51013CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51014CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51017REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51018REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51100FFRAME SUB-ASSY
51155BSTIFFENER, FRAME SIDE RAIL, REAR NO.2
51155CSTIFFENER, FRAME SIDE RAIL, REAR NO.3
51155DSTIFFENER, FRAME SIDE RAIL, REAR NO.1
51203KCROSSMEMBER SUB-ASSY, FRAME, NO.3
51211ACROSSMEMBER, FRAME, FRONT
51221CCROSSMEMBER, FRAME, NO.2
51261CROSSMEMBER, FRAME, NO.6
51271ACROSSMEMBER, FRAME, NO.7
9003101175
main90031-01175
9003384013
main90033-84013
9017814002
main90178-14002
9017914039
main90179-14039
9111281035
main91112-81035
91552L1445
main91552-L1445
9415081001
main94150-81001
9462241400
main94622-41400
30 parts on this diagram · 29 diagrams in section
