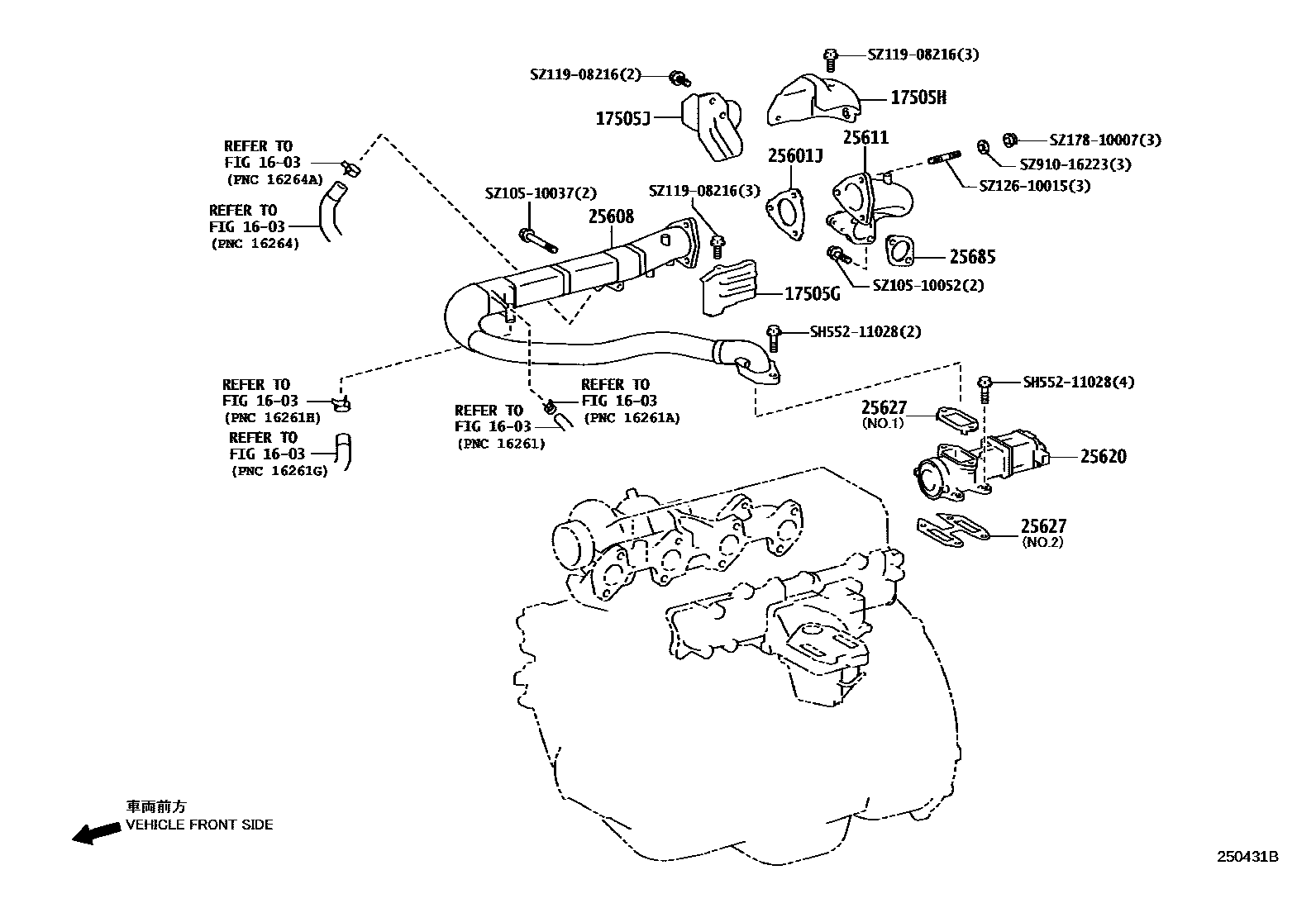

Toyota DYNA/TOYOACE HV — EXHAUST GAS RECIRCULATION SYSTEM

1603

17505GINSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1

main17505-E0710iN04C..XKU700,710,720..5F201107-201905

17505HINSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.2

main17505-E0720iN04C..XKU700,710,720201107-201203

sub17505-E0A70

main17505-E0A70iN04C..XKU700,710,720201203-201905

17505JINSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.3

main17505-E0730iN04C..XKU702,71#,72#..6F201107-201905

25601JGASKET(FOR EGR PIPE, NO.1)

main17451-E0110iN04C..XKU700,710,720..5F201107-201905

25608COOLER SUB-ASSY, EGR

main25608-78150iN04C..XKU702,71#,72#..DCRWD201905

main25608-78160iN04C..XKU702,71#,72#..DCWDO202103

main25608-E0201iN04C..XKU702,71#,72#..6F201107-201905

25611CONNECTOR, EGR PIPE

main25611-E0370iN04C..XKU700,710,720201107-201904

sub25611-E0371

main25611-E0371iN04C..XKU702,71#,72#..DCWDO201905

25620VALVE ASSY, EGR

main25620-E0251iN04C..XKU700,710,720201107-201112

sub25620-E0252

main25620-E0252iN04C..XKU700,710,720201112-201707

sub25620-E0253

main25620-E0253iN04C..XKU70#,71#,72#201708-201805

sub25620-E0254

main25620-E0254iN04C..XKU702,71#,72#..6F201806-201905

main25620-E0292iN04C..XKU702,71#,72#..DCRWD201905

25627GASKET, EGR VALVE

main25627-E0130iN04C..XKU700,710,720201107-201905

main25627-E0140iN04C..XKU700,710,720..5F201107-201905

25685GASKET, EGR COOLER, NO.1

mainS171042020iN04C..XKU700,710,720201107-201905

SH55211028

mainSH552-11028

SZ10510037

mainSZ105-10037

SZ10510052

mainSZ105-10052

SZ11908216

mainSZ119-08216

SZ12610015

mainSZ126-10015

SZ17810007

mainSZ178-10007

SZ91016223

mainSZ910-16223

17 parts on this diagram · 1 diagram in section
