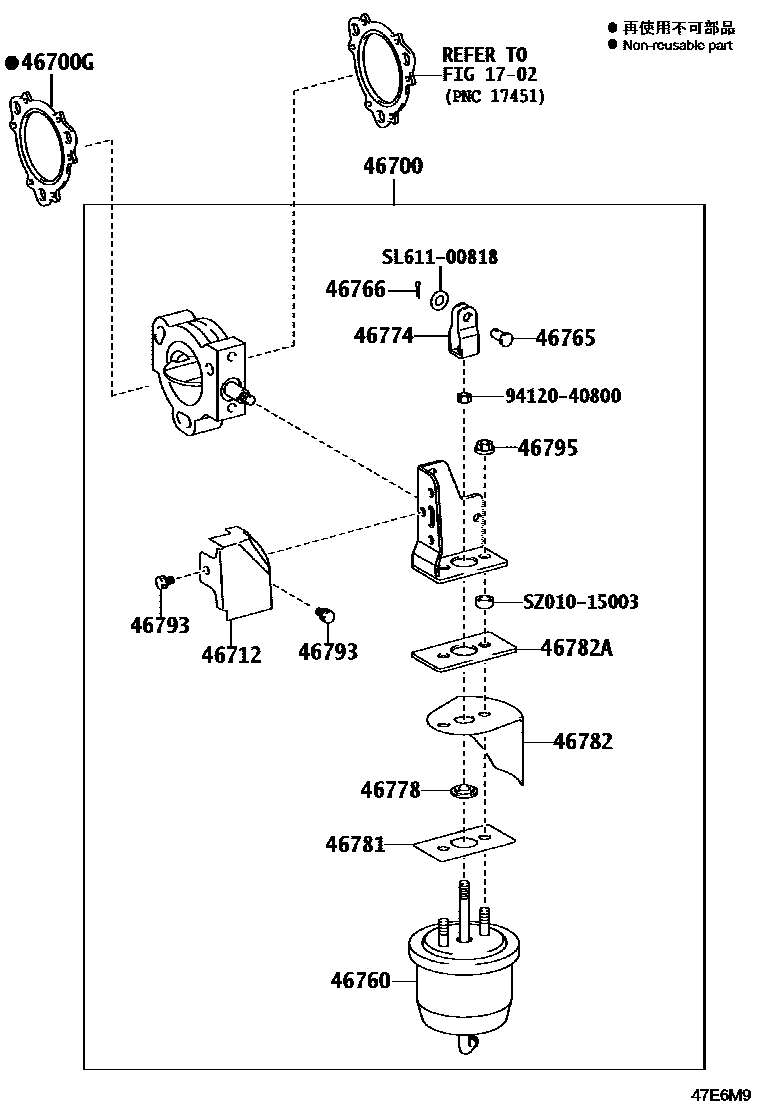

Toyota DYNA/TOYOACE HV — EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

0001 1 0002 1

1702

46700RETARDER ASSY, EXHAUST

main46700-37241iXKU702,71#,72#..DCRWD201905

main46700-E0450iXKU700,710,720201107-201507

sub46700-E0451

main46700-E0451iXKU700,710,720201508-201611

sub46700-E0452

main46700-E0452iXKU700,710,720201612-201905

46700GGASKET(FOR EXHAUST BRAKE)

main17451-E0110iXKU700,710,720201107-201905

46712COVER, EXHAUST VALVE LINK

main46712-37230iXKU700,710,720201508-201905

main46712-EV010iXKU700,710,720201107-201508

46760CYLINDER ASSY, EXHAUST RETARDER VACUUM

main46760-37240iXKU702,71#,72#..DCWDO201905

main46760-EV020iXKU700,710,720201107-201905

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iXKU700,710,720201107-201905

main46765-37240iXKU702,71#,72#..DCWDO201905

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iXKU702,71#,72#..6F201107-201905

main46766-37240iXKU702,71#,72#..DCRWD201905

46774CLEVIS, EXHAUST BRAKE ROD

main46774-36270iXKU702,71#,72#..6F201107-201905

main46774-37240iXKU702,71#,72#..DCWDO201905

46778BEARING, VACUUM CYLINDER

main46778-37241iXKU702,71#,72#..DCRWD201905

main46778-EV010iXKU700,710,720..5F201107-201905

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-28010iXKU702,71#,72#..DCRWD201107-201905

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-EV010iXKU700,710,720201107-201905

46782APROTECTOR, EXHAUST RETARDER

main46782-EV020iXKU700,710,720201107-201508

46793BOLT, EXHAUST VALVE LINK COVER

main46793-36010iXKU700,710,720201107-201905

46795NUT, EXHAUST VALVE BRACKET

main46795-36260iXKU700,710,720201107-201905

9412040800

main94120-40800

SL61100818

mainSL611-00818

SZ01015003

mainSZ010-15003

17 parts on this diagram · 2 diagrams in section
