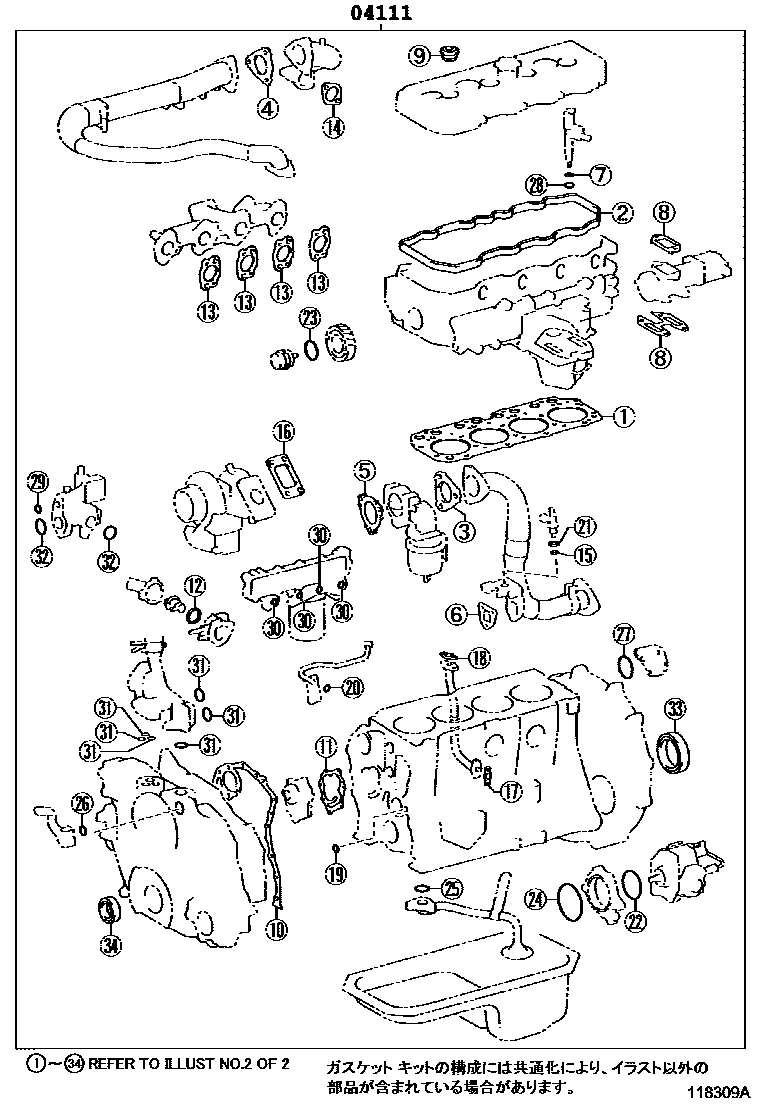

Toyota DYNA/TOYOACE HV — ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-78C20iN04C..XKU700,710,720201705-201706

sub04111-78C21

main04111-78C21iN04C..XKU700,710,720201706-201709

sub04111-78C22

main04111-78C22iN04C..XKU702,71#,72#..6F201709-201902

sub04111-78C23

main04111-78C23iN04C..XKU702,71#,72#..6F201902-201904

sub04111-78C24

main04111-78C24iN04C..XKU702,71#,72#..6F201904-201905

sub04111-78C25

main04111-E0D30iN04C..XKU700,710,720201107-201201

sub04111-E0D31

main04111-E0D31iN04C..XKU700,710,720201201-201404

sub04111-E0D32

main04111-E0D32iN04C..XKU700,710,720201404-201412

sub04111-E0D33

main04111-E0D33iN04C..XKU700,710,720201412-201508

sub04111-E0D34

main04111-E0D34iN04C..XKU700,710,720201508-201705

sub04111-E0D35

main04111-E5410iN04C..XKU702,71#,72#..DCRWD201905-201907

sub04111-E5411

main04111-E5411iN04C..XKU702,71#,72#..DCRWD201907-202010

sub04111-E5412

main04111-E5412iN04C..XKU702,71#,72#..DCRWD202010-202201

sub04111-E5413

main04111-E5413iN04C..XKU702,71#,72#..DCWDO202201

1 parts on this diagram · 6 diagrams in section
