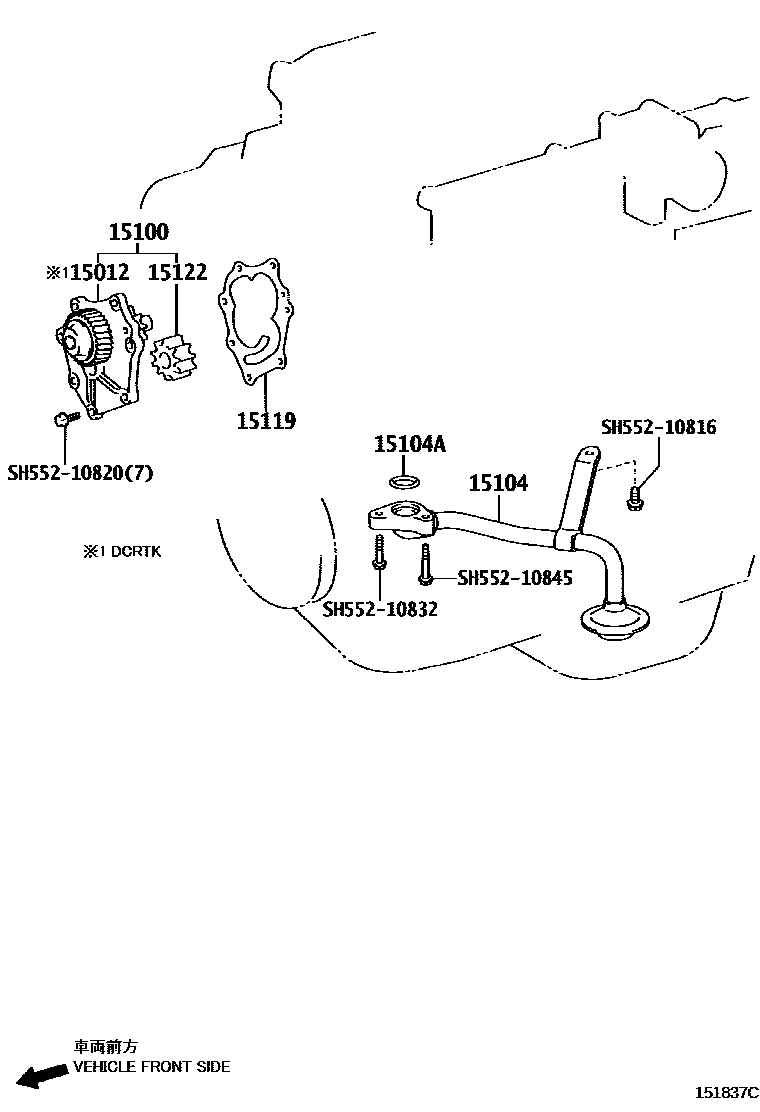

Toyota DYNA/TOYOACE HV — ENGINE OIL PUMP

15012COVER SUB-ASSY, OIL PUMP

main15012-E0120iN04C..XKU700,710,720201107-201611

sub15012-E0121

main15012-E0121iN04C..XKU700,710,720201612-201905

15100PUMP ASSY, OIL

main15110-E0320iN04C..XKU700,710,720201107-201611

sub15110-E0321

main15110-E0321iN04C..XKU700,710,720201612-201905

15104STRAINER SUB-ASSY, OIL

main15104-E0110iN04C..XKU700,710,720201107-201905

15104ARING, O(FOR OIL STRAINER)

mainSN74100213iN04C..XKU700,710,720201107-201905

15119GASKET, OIL PUMP COVER

mainS151191121iN04C..XKU700,710,720201107-201905

15122GEAR, OIL PUMP DRIVEN

main15122-E0110iN04C..XKU700,710,720201107-201905

SH55210816

mainSH552-10816

SH55210820

mainSH552-10820

SH55210832

mainSH552-10832

SH55210845

mainSH552-10845

10 parts on this diagram · 1 diagram in section
