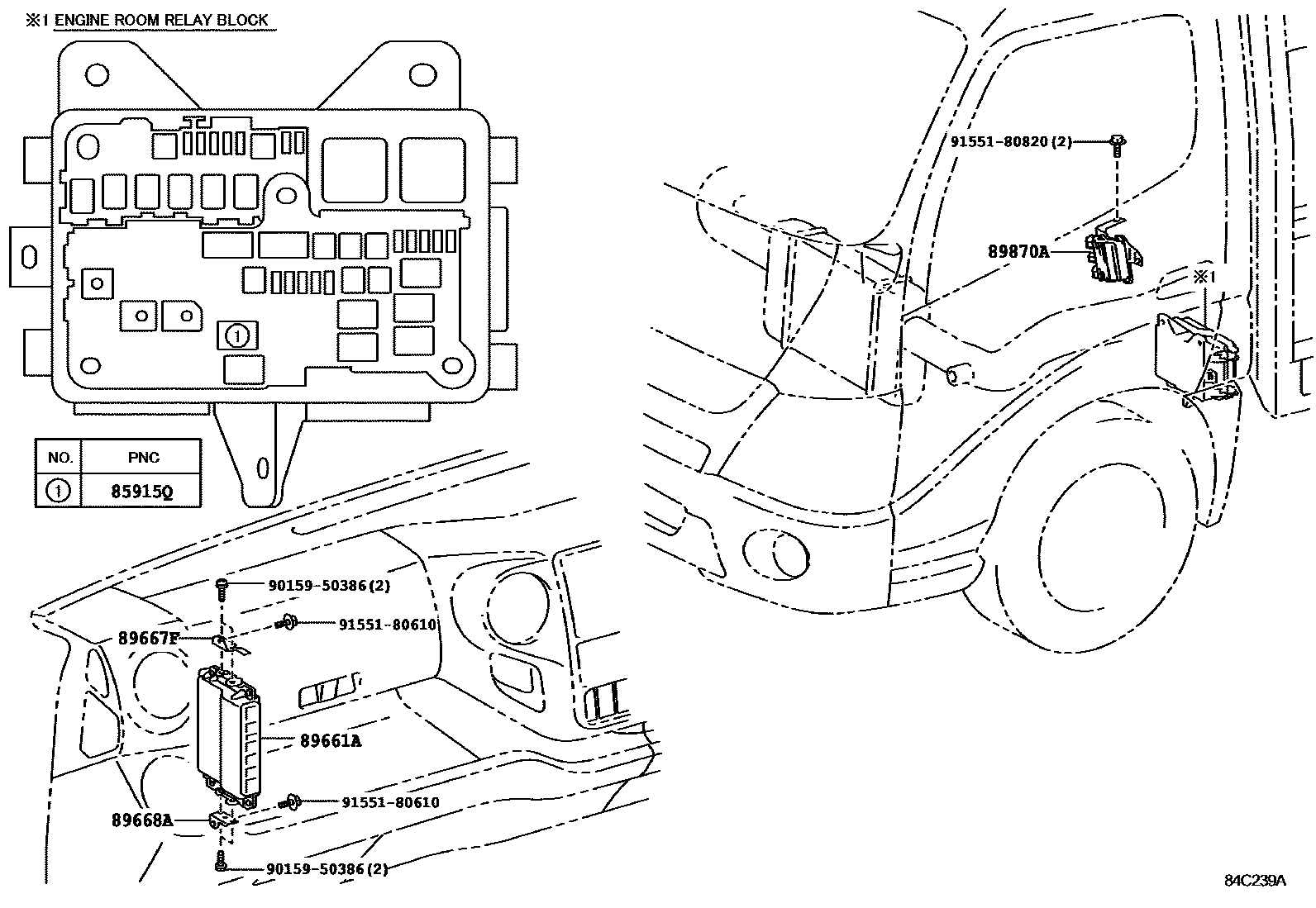

Toyota DYNA/TOYOACE HV — ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1

85915QRELAY, COMPUTER (FOR DIESEL)

main85900-37150iXKU700,710,720201107-201905

89661ACOMPUTER, ENGINE CONTROL

main89661-37D50iXKU700,710,720201107-201110

sub89661-37D51

main89661-37D51iXKU700,710,720201111-201204

sub89661-37D52

main89661-37J40iXKU700,710,720201204-201205

sub89661-37J41

main89661-37J41iXKU700,710,720201206-201310

sub89661-37J42

main89661-37J42iXKU700,710,720201311-201705

main89661-37Q60iXKU700,710,720..5F201705-201905

main89661-37U20iXKU702,71#,72#201905-201906

sub89661-37U21

main89661-37U21iXKU702,71#,72#201907-202003

sub89661-37U22

main89661-37U22iXKU702,71#,72#202004-202012

main89661-37U23iXKU702,71#,72#..DCRWD202101

main89661-37V30iXKU702,71#,72#..DCWDO202103-202111

main89661-37V31iXKU702,71#,72#..DCWDO202112-202306

main89661-37V32iXKU702,71#,72#..DCWDO202307

89667FBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-37130iXKU700,710,720201107-201905

main89667-37210iXKU702,71#,72#..DCRWD201905

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-37120iXKU700,710,720201107-201905

89870ADRIVER ASSY, INJECTOR

main89870-37140iXKU700,710,720201107-201905

9015950386

main90159-50386

9155180610

main91551-80610

9155180820

main91551-80820

8 parts on this diagram · 2 diagrams in section
