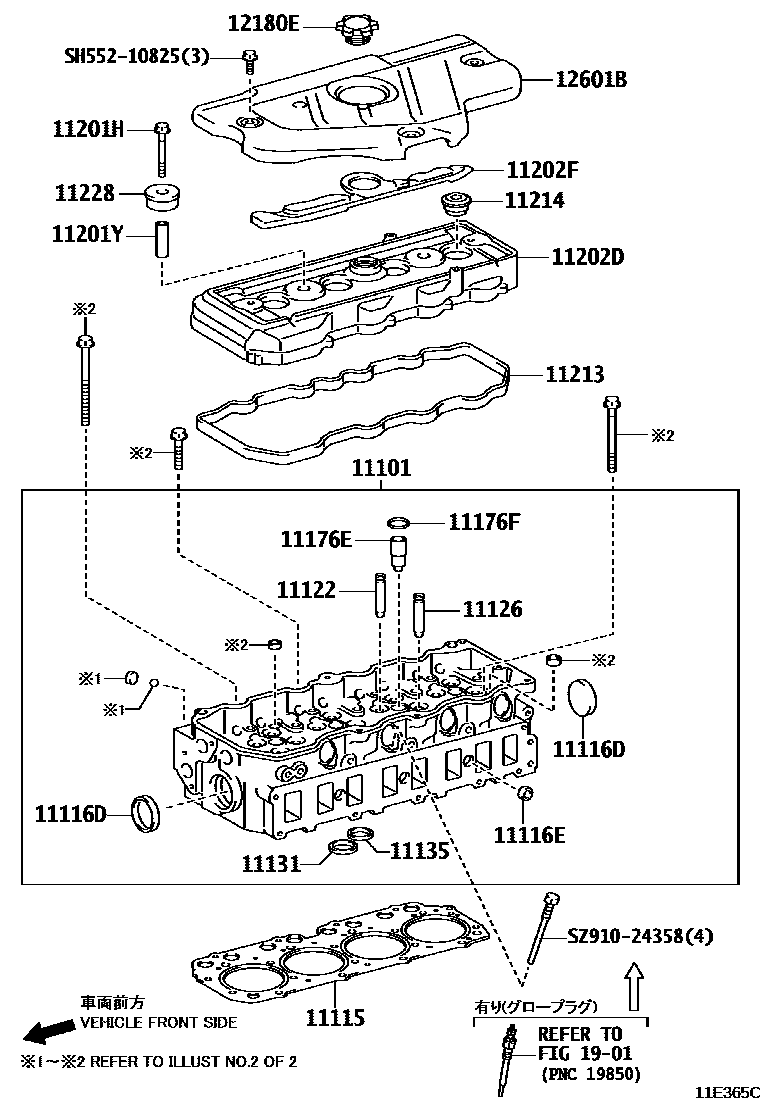

Toyota DYNA/TOYOACE HV — CYLINDER HEAD

0001 1 0002 1 0003 1

11101HEAD SUB-ASSY, CYLINDER

main11101-78210iN04C..XKU702,71#,72#..6F201107-201905

sub11101-78221

subSN411-02216

main11101-78221iN04C..XKU702,71#,72#..DCRWD201905

11115GASKET, CYLINDER HEAD

main11115-78100iN04C..XKU702,71#,72#..6F201901-201903

sub11115-78101

main11115-78101iN04C..XKU702,71#,72#..DCRWD201904-201905

main11115-E0030iN04C..XKU700,710,720201107-201706

sub11115-E0031

main11115-E0031iN04C..XKU702,71#,72#..6F201706-201812

sub11115-78100

11116DPLUG, TIGHT, NO.4

mainSN41105016iN04C..XKU700,710,720201107-201905

11116EPLUG, TIGHT, NO.5

mainSN41102216iN04C..XKU700,710,720201107-201905

11122BUSH, INTAKE VALVE GUIDE

mainS111221220iN04C..XKU700,710,720201107-201905

11126BUSH, EXHAUST VALVE GUIDE

mainS111221220iN04C..XKU700,710,720201107-201905

11131SEAT, INTAKE VALVE

mainS111311540iN04C..XKU702,71#,72#..6F201107-201905

11135SEAT, EXHAUST VALVE

main11135-E0010iN04C..XKU700,710,720..5F201107-201905

11176ESEAT, INJECTION NOZZLE

mainS111761200iN04C..XKU700,710,720201107-201905

11176FGASKET (FOR INJECTION NOZZLE SEAT)

mainSZ91015133iN04C..XKU700,710,720201107-201905

11201HBOLT(FOR CYLINDER HEAD COVER)

mainSH55210865iN04C..XKU700,710,720201107-201905

11201YSPACER(FOR CYLINDER HEAD COVER)

mainSZ91016303iN04C..XKU700,710,720201107-201905

11202DCOVER SUB-ASSY, CYLINDER HEAD, NO.2

main11201-78061iN04C..XKU702,71#,72#..DCWDO201905

main11211-E0011iN04C..XKU702,71#,72#..6F201107-201905

11202FRUBBER, CUSHION(FOR CYLINDER HEAD COVER)

mainS112311090iN04C..XKU700,710,720..5F201107-201905

11213GASKET, CYLINDER HEAD COVER

main11213-78060iN04C..XKU700,710,720..5F201107-201905

main11213-78070iN04C..XKU702,71#,72#..DCRWD201905-202204

sub11213-78071

main11213-78071iN04C..XKU702,71#,72#..DCWDO202204

11214GASKET, CYLINDER HEAD COVER, NO.2

main11213-78082iN04C..XKU702,71#,72#..DCWDO201905

main11213-78090iN04C..XKU700,710,720..5F201709-201905

mainS112132092iN04C..XKU700,710,720201107-201708

sub11213-78090

11228CUSHION, CYLINDER HEAD COVER

main11228-78050iN04C..XKU702,71#,72#..6F201107-201905

12180ECAP ASSY, OIL FILLER

main12180-E0010iN04C..XKU700,710,720201107-201905

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-78011iN04C..XKU700,710,720201704-201905

main12601-78021iN04C..XKU702,71#,72#..DCRWD201905-201906

sub12601-78022

main12601-78022iN04C..XKU702,71#,72#..DCWDO201907

main12601-E0120iN04C..XKU700,710,720201107-201703

sub12601-78011

1901

SH55210825

mainSH552-10825

SZ91024358

mainSZ910-24358

22 parts on this diagram · 3 diagrams in section
