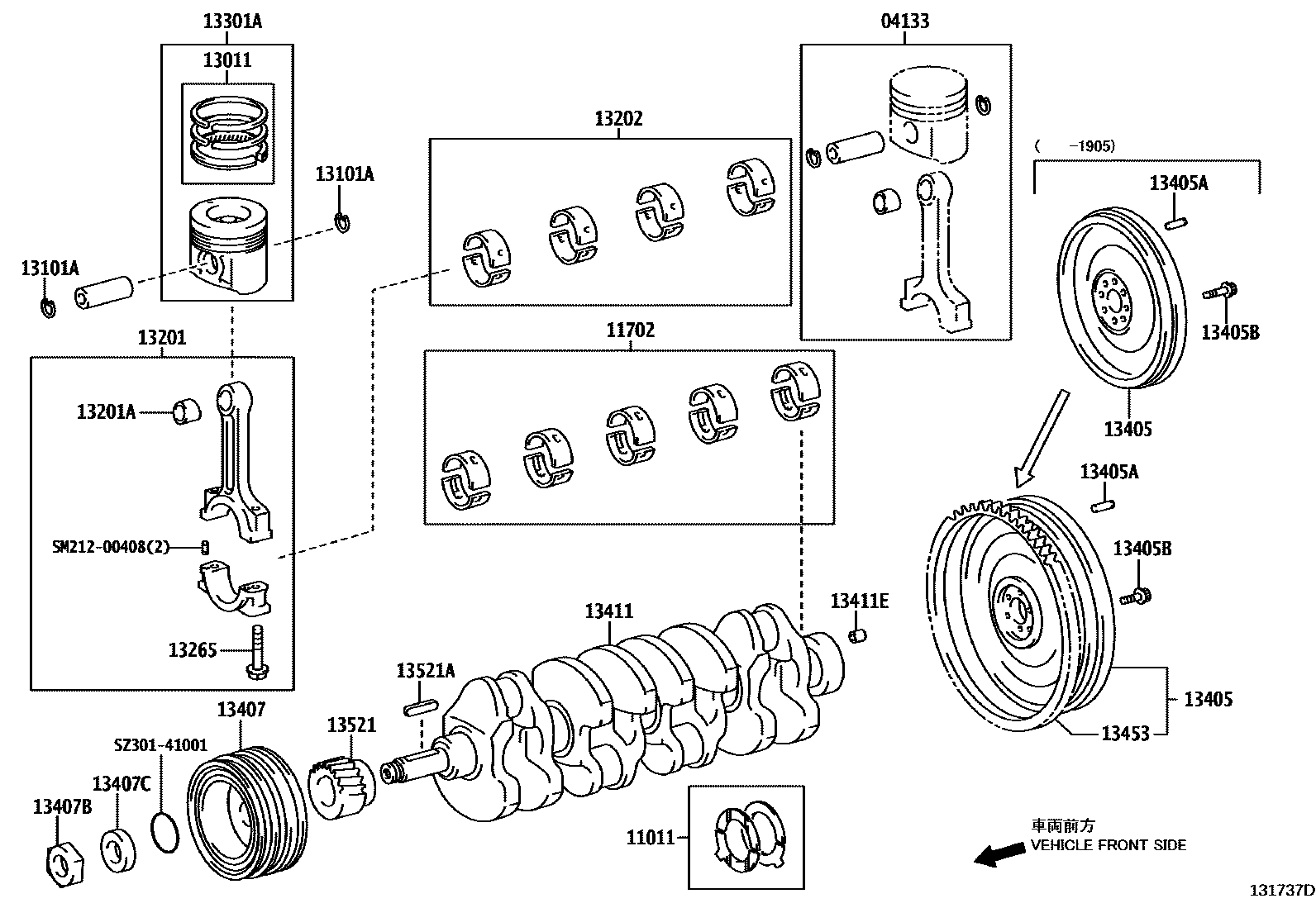

Toyota DYNA/TOYOACE HV — CRANKSHAFT & PISTON

04133PIN KIT, PISTON

main04133-E0100iN04C..XKU700,710,720201107-201209

sub04133-E0101

main04133-E0101iN04C..XKU700,710,720201209-201905

main04133-E0320iN04C..XKU702,71#,72#..DCWDO201905

11011WASHER SET, CRANKSHAFT THRUST

main11011-E0030iN04C..XKU700,710,720201107-201905

11702BEARING SET, CRANKSHAFT

main11701-78160iN04C..XKU702,71#,72#..DCWDO201905

main11701-E0040iN04C..XKU700,710,720201107-201405

sub11701-E0070

main11701-E0070iN04C..XKU700,710,720..5F201406-201905

main11704-E0010iN04C..XKU700,710,720201107-201405

sub11704-E0040

main11704-E0040iN04C..XKU700,710,720201406-201905

main11704-E0050iN04C..XKU702,71#,72#..DCRWD201905

main11705-E0010iN04C..XKU700,710,720201107-201405

sub11705-E0040

main11705-E0040iN04C..XKU700,710,720201406-201905

main11705-E0050iN04C..XKU702,71#,72#..DCRWD201905

main11706-E0010iN04C..XKU700,710,720201107-201405

sub11706-E0020

main11706-E0020iN04C..XKU702,71#,72#..6F201406-201905

main11706-E0040iN04C..XKU702,71#,72#..DCRWD201905

main11707-E0010iN04C..XKU700,710,720201107-201405

sub11707-E0020

main11707-E0020iN04C..XKU700,710,720..5F201406-201905

main11707-E0040iN04C..XKU702,71#,72#..DCRWD201905

13011RING SET, PISTON

mainS1304E0020iN04C..XKU702,71#,72#..6F201107-201905

mainS1304E0710iN04C..XKU702,71#,72#..DCRWD201905

13101ARING, HOLE SNAP(FOR PISTON PIN)

mainSZ52037001iN04C..XKU700,710,720201107-201905

13201ROD SUB-ASSY, CONNECTING

main13260-78111iN04C..XKU702,71#,72#..DCWDO201905

main13260-E0050iN04C..XKU700,710,720201107-201905

sub13260-E0052

13201ABUSH(FOR CONNECTING ROD SMALL END)

main13271-78100iN04C..XKU702,71#,72#..DCRWD201905

mainS132721400iN04C..XKU700,710,720201107-201905

13202BEARING SET, CONNECTING ROD

main13041-78430iN04C..XKU702,71#,72#..DCWDO201905

main13041-E0610iN04C..XKU700,710,720201107-201405

sub13041-E0690

main13041-E0690iN04C..XKU700,710,720..5F201406-201905

main13041-E0A60iN04C..XKU700,710,720..5F201705-201905

main13041-E0A70iN04C..XKU700,710,720..5F201705-201905

main13041-E0A80iN04C..XKU700,710,720..5F201705-201905

main13041-E0A90iN04C..XKU702,71#,72#..6F201705-201905

main13041-E0B00iN04C..XKU702,71#,72#..DCRWD201905

main13041-E0B10iN04C..XKU702,71#,72#..DCRWD201905

main13041-E0B20iN04C..XKU702,71#,72#..DCWDO201905

main13041-E0B30iN04C..XKU702,71#,72#..DCRWD201905

13265BOLT, CONNECTING ROD

main13265-E0010iN04C..XKU700,710,720201107-201905

13301APISTON SET, W/PISTON RING

mainS130BE0150iN04C..XKU700,710,720201107-201902

subS130B-E0151

mainS130BE0151iN04C..XKU702,71#,72#..6F201903-201905

mainS130BE0R40iN04C..XKU702,71#,72#..DCRWD201905

13405FLYWHEEL SUB-ASSY

main13450-78260iN04C..XKU702,71#,72#..DCRWD201905

main13451-E0G70iN04C..XKU700,710,720201107-201201

sub13451-E0G71

main13451-E0G71iN04C..XKU702,71#,72#..6F201201-201905

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-10008iN04C..XKU700,710,720201107-201111

mainSM21201024iN04C..XKU700,710,720201111-201905

13405BBOLT, FLYWHEEL SETTING

mainS134551820iN04C..XKU700,710,720201107-201905

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-78020iN04C..XKU702,71#,72#..DCWDO201905

main13407-E0160iN04C..XKU702,71#,72#..6F201107-201905

13407BNUT, HEXAGON(FOR CRANKSHAFT DAMPER)

mainSZ17027001iN04C..XKU700,710,720201107-201905

13407CSPACER(FOR CRANKSHAFT DAMPER)

mainSZ91016034iN04C..XKU702,71#,72#..6F201107-201905

13411CRANKSHAFT

main13411-78070iN04C..XKU702,71#,72#..DCRWD201905

main13411-E0071iN04C..XKU700,710,720201107-201905

13411ECOLLAR(FOR CRANKSHAFT)

mainSZ91029013iN04C..XKU700,710,720..5F201107-201905

13453GEAR, FLYWHEEL RING

main13453-E0080iN04C..XKU702,71#,72#..DCRWD201905

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-78110iN04C..XKU702,71#,72#..DCRWD201709-201905

mainS135211660iN04C..XKU700,710,720201107-201708

sub13521-78110

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

mainSM17101028iN04C..XKU700,710,720201107-201905

SM21200408

mainSM212-00408

SZ30141001

mainSZ301-41001

23 parts on this diagram · 1 diagram in section
