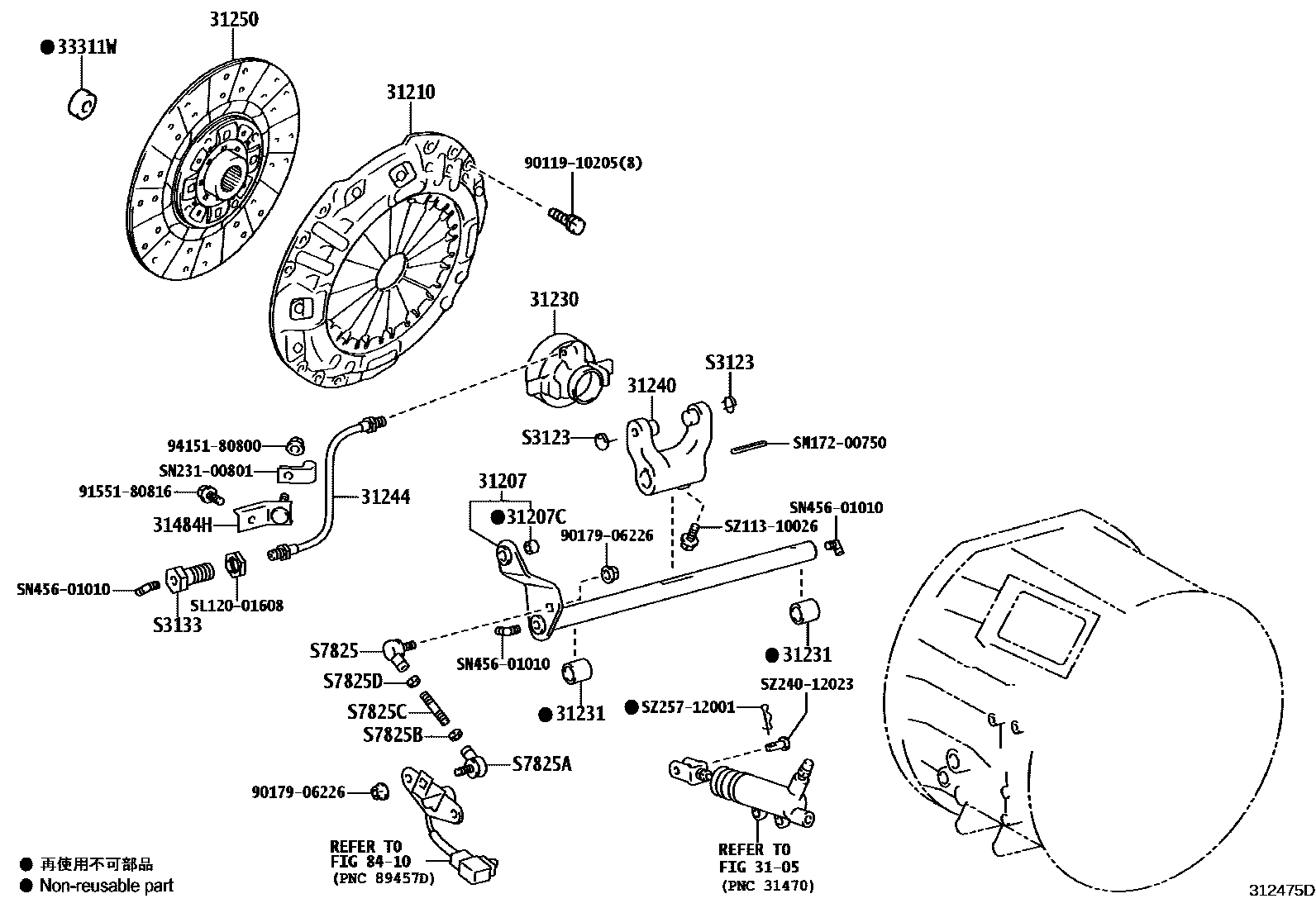

Toyota DYNA/TOYOACE HV — CLUTCH & RELEASE FORK

3105

31207LEVER SUB-ASSY, CLUTCH RELEASE FORK

main31207-37010iXKU700,710,720201107-201905

31207CBUSH(FOR CLUTCH RELEASE FORK LEVER)

mainSZ38312003iXKU700,710,720201107-201905

31210COVER ASSY, CLUTCH

main31210-37190iXKU700,710,720201107-201905

31230BEARING ASSY, CLUTCH RELEASE

main31230-37070iXKU700,710,720201107-201905

31231HUB, CLUTCH RELEASE BEARING

main31231-37080iXKU700,710,720201107-201905

31240FORK ASSY, CLUTCH RELEASE

main31240-E0031iXKU700,710,720201107-201905

31244TUBE, RELEASE BEARING HUB TO UNION

main31244-37040iXKU700,710,720201107-201905

main31244-37050iXKU702,71#,72#..DCRWD201905

31250DISC ASSY, CLUTCH

main31250-37251iXKU700,710,720201107-201411

sub31250-37280

main31250-37280iXKU700,710,720201412-201510

sub31250-37281

main31250-37281iXKU700,710,720201511-201905

31484HBRACKET, FLEXIBLE HOSE

main31484-37380iXKU700,710,720201107-201905

33311WBEARING (FOR INPUT SHAFT)

main90363-17037iXKU700,710,720201107-201905

8410

S3123SPRING, RELEASE FORK ANTI-RATTLE

mainS312341031iXKU700,710,720201107-201905

S3133JOINT, CLUTCH GREASE HOSE

mainS3133E0010iXKU700,710,720201107-201905

S7825JOINT ASSY, LINK ROD

mainS782501540iXKU700,710,720201107-201905

S7825AJOINT ASSY, LINK ROD, NO.2

mainS782501550iXKU700,710,720201107-201905

S7825BNUT, LOCK(FOR LINK ROD JOINT)

mainSL12000604iXKU700,710,720201107-201905

S7825CROD, LINK

mainSZ12730039iXKU700,710,720201107-201905

S7825DNUT(FOR LINK ROD JOINT)

mainSZ17006018iXKU700,710,720201107-201905

9011910205

main90119-10205

9017906226

main90179-06226

9155180816

main91551-80816

9415180800

main94151-80800

SL12001608

mainSL120-01608

SM17200750

mainSM172-00750

SN23100801

mainSN231-00801

SN45601010

mainSN456-01010

SZ11310026

mainSZ113-10026

SZ24012023

mainSZ240-12023

SZ25712001

mainSZ257-12001

30 parts on this diagram · 1 diagram in section
