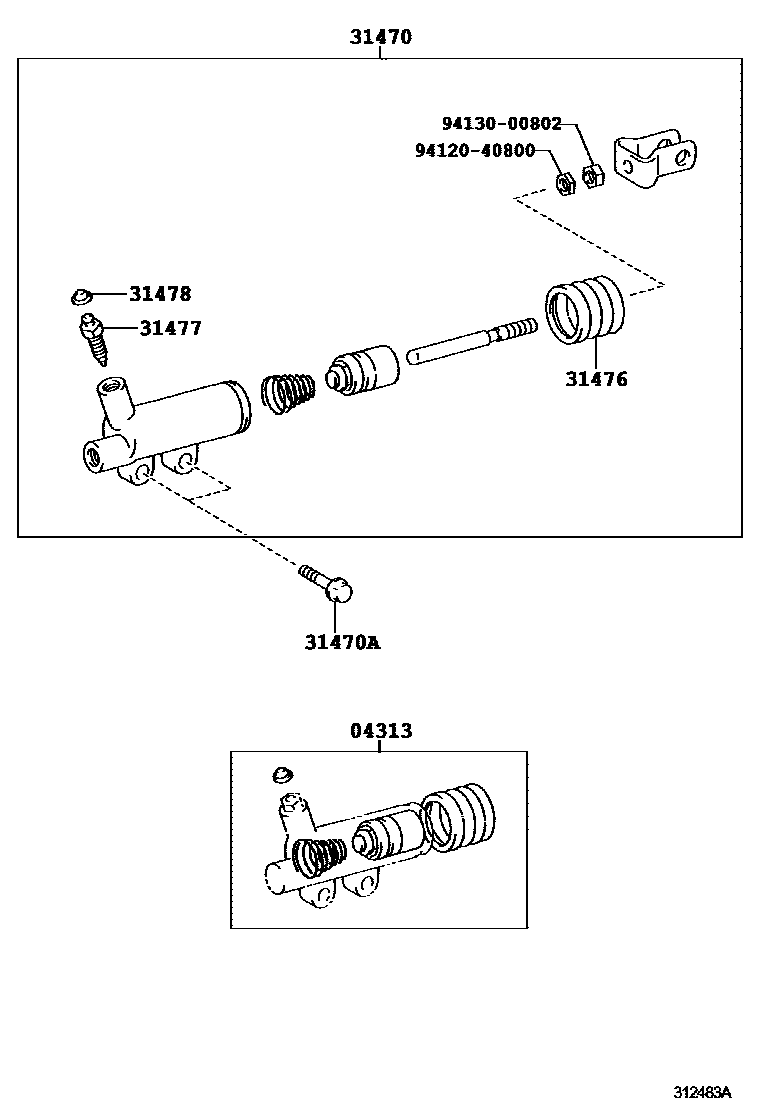

Toyota DYNA/TOYOACE HV — CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-28020iXKU700,710,720201107-201905

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-37090iXKU700,710,720201107-201905

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60830iXKU700,710,720201107-201905

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iXKU700,710,720201107-201905

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iXKU700,710,720201107-201905

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iXKU700,710,720201107-201905

9412040800

main94120-40800

9413000802

main94130-00802

8 parts on this diagram · 1 diagram in section
