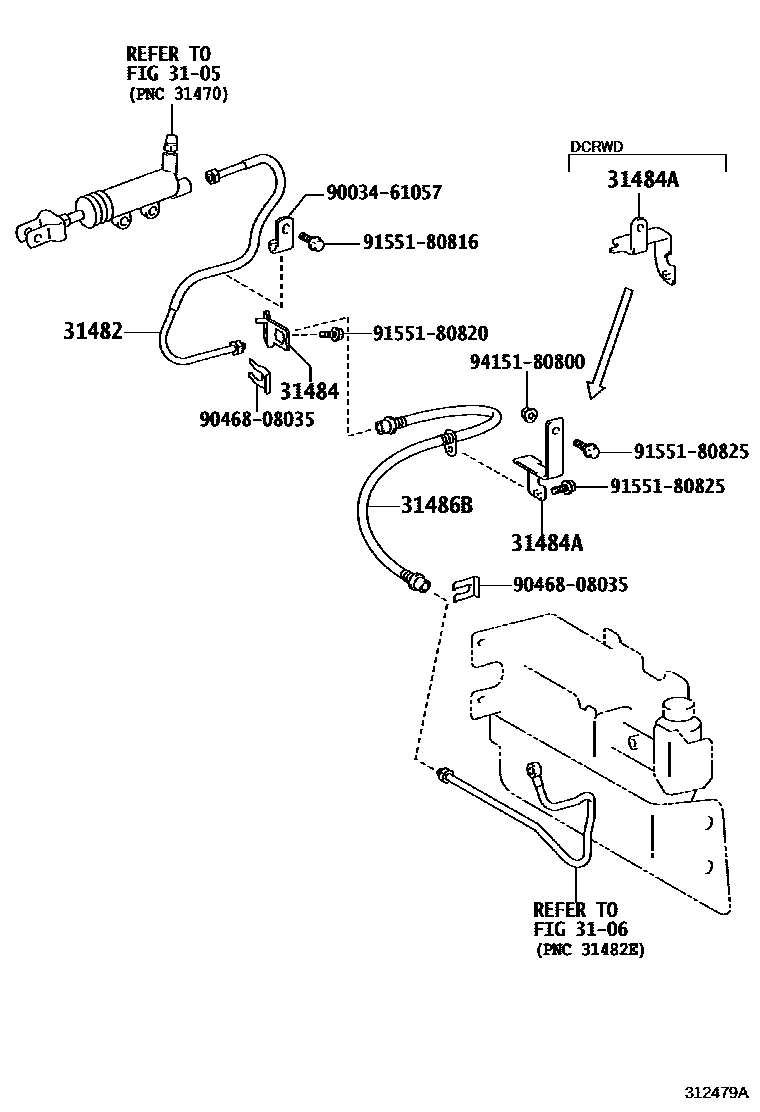

Toyota DYNA/TOYOACE HV — CLUTCH PEDAL & FLEXIBLE HOSE

3105

3106

31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

main31482-37360iXKU700,710,720201107-201710

main31482-37420iXKU700,710,720..5F201710-201905

sub31482-37421

main31482-37461iXKU702,71#,72#..DCRWD201905

31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)

main31484-37320iXKU700,710,720201107-201710

main31484-37460iXKU700,710,720..5F201710-201905

31484ABRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)

main31484-37330iXKU700,710,720201107-201905

main31484-37480iXKU702,71#,72#..DCRWD201905-201908

sub31484-37481

main31484-37481iXKU702,71#,72#..DCRWD201909

31486BHOSE, MASTER CYLINDER TO RELEASE CYLINDER

main31486-37120iXKU700,710,720201107-201905

sub31486-37121

main31486-37211iXKU702,71#,72#..DCRWD201905-201908

sub31486-37212

main31486-37212iXKU702,71#,72#..DCRWD201909

9003461057

main90034-61057

9046808035

main90468-08035

9155180816

main91551-80816

9155180820

main91551-80820

9155180825

main91551-80825

9415180800

main94151-80800

12 parts on this diagram · 1 diagram in section
