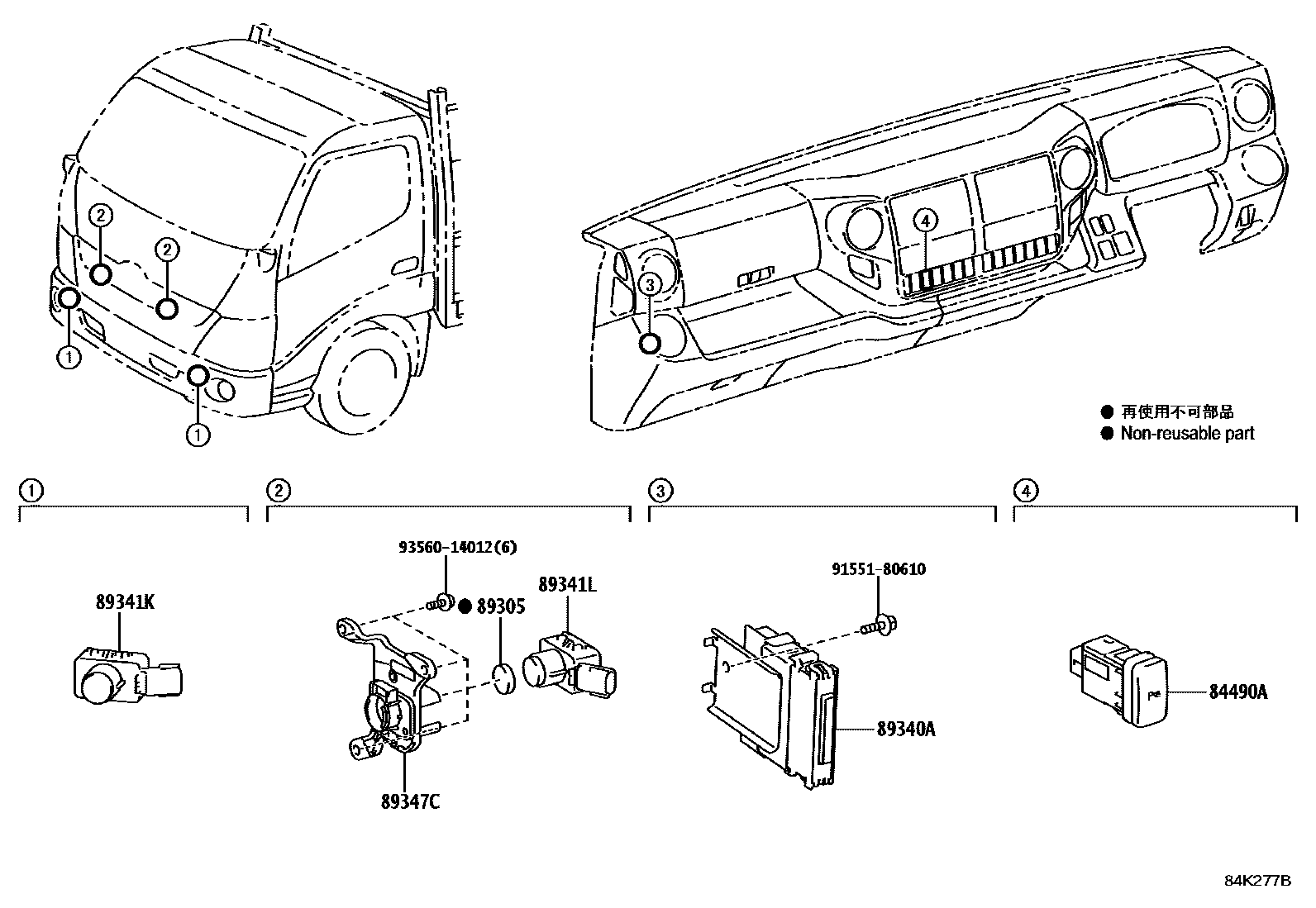

Toyota DYNA/TOYOACE HV — CLEARANCE & BACK SONAR

0001 1 0002 1

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84270-37490iXKU702,71#,72#..DCWDO201905

89305CUSHION SET, ULTRASONIC SENSOR

main89305-37010iXKU702,71#,72#201912-202012

sub89348-37031

sub89348-37041

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-37021iXKU702,71#,72#..DCRWD201905-202310

main89340-37030iXKU702,71#,72#..DCWDO202310

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-37020-A0iXKU702,71#,72#..DCRWD201905

WHITE,058

main89341-37020-B0iXKU702,72#..DCRWD;XKU71#..DCRWD..CBU;XKU710..T5..DCRWD..IV3;XKU712..(35T,40T)..DCRWD..IV3201905

GRAY,766 ,8P0

main89341-37020-B0iXKU71#..T4..(20T,30T)..DCWDO..IV3201905

GRAY,766 ,8P0 ,9E2

main89341-37020-B1iXKU702,71#,72#..DCWDO201905

SILVER ME.,199

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-37010iXKU702,71#,72#..DCRWD201905

89347CRETAINER, ULTRASONIC SENSOR, FRONT CENTER

main89348-37030iXKU702,71#,72#201905-202011

sub89348-37031

main89348-37031iXKU702,71#,72#..DCWDO202012

main89348-37040iXKU702,71#,72#201905-202011

sub89348-37041

main89348-37041iXKU702,71#,72#..DCWDO202012

9155180610

main91551-80610

9356014012

main93560-14012

8 parts on this diagram · 2 diagrams in section
