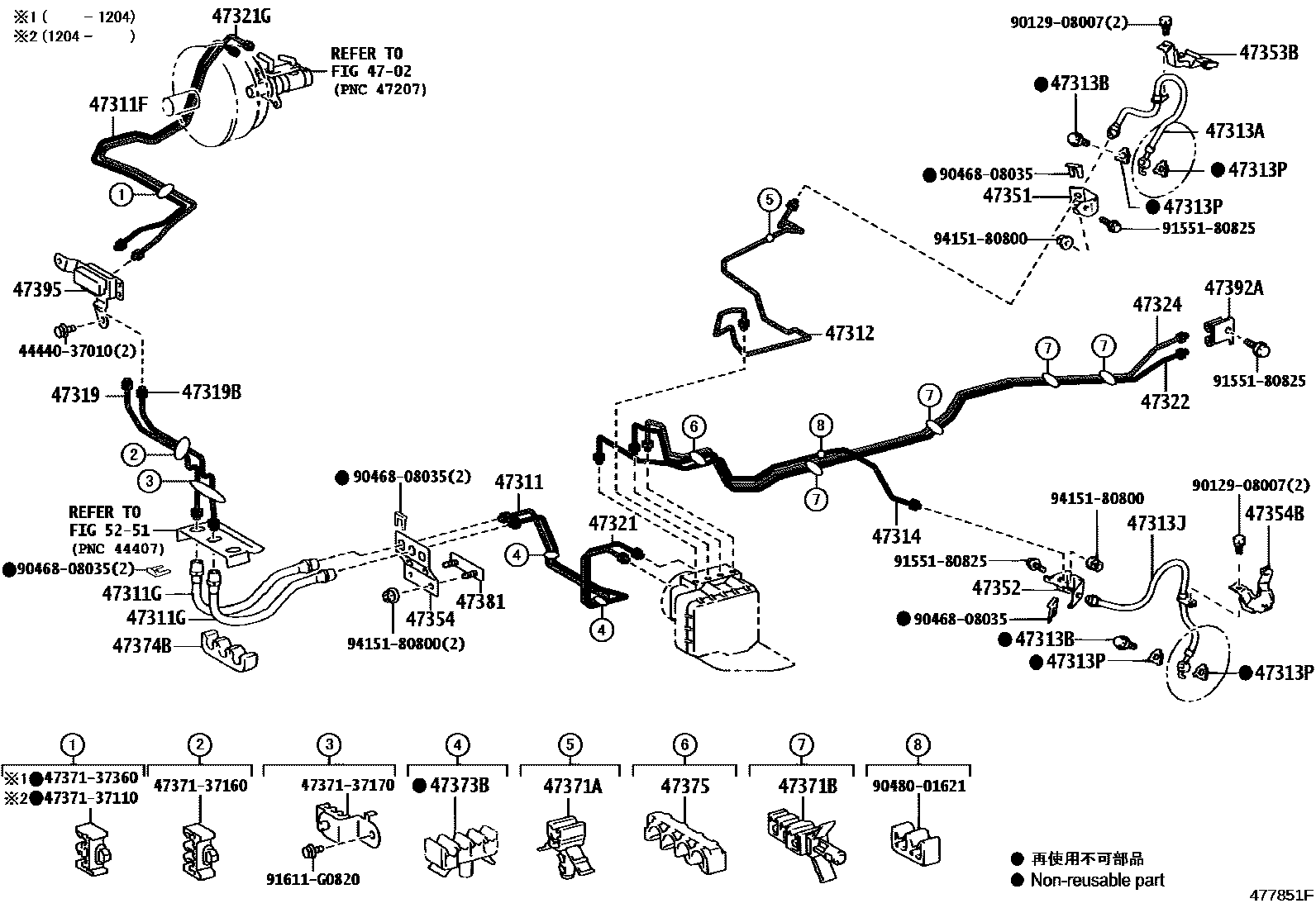

Toyota DYNA/TOYOACE HV — BRAKE TUBE & CLAMP

0001 1 0003 1 0005 1 0006 1 0007 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-37620iXKU700,710,720..5F201107-201905

47311FTUBE, FRONT BRAKE, FRAME NO.1

main47311-37630iXKU700,710,720201107-201204

main47311-37631iXKU700,710,720201204-201205

sub47311-37632

main47311-37632iXKU700,710,720201205-201904

sub47311-37770

main47311-37770iXKU702,71#,72#..DCRWD201905

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02G01iXKU700,710,720..5F201107-201905

main90947-02J58iXKU702,71#,72#..DCRWD201905

47312TUBE, FRONT BRAKE, NO.2

main47312-37B80iXKU710,720..5F..20T201107-201905

main47312-37C50iXKU702,712,722201107-201905

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02A73iXKU710,720..20T201107-201905

main90947-02D86iXKU702,712,722201107-201905

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iXKU702,71#,72#..DCRWD201107-201905

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02A74iXKU710,720..20T201107-201905

main90947-02D87iXKU702,712,722..DCWDO201107-201905

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iXKU702,71#,72#..6F201107-201905

47314TUBE, FRONT BRAKE, NO.4

main47314-37820iXKU710,720..5F..20T201107-201905

main47314-37830iXKU702,712,722..DCWDO201107-201905

47319TUBE, FRONT BRAKE, NO.9

main47312-37C40iXKU700,710,720201107-201204

sub47312-37C41

main47312-37C41iXKU700,710,720201205-201905

47319BTUBE, FRONT BRAKE, NO.11

main47322-37C00iXKU700,710,720201107-201204

sub47322-37C01

main47322-37C01iXKU702,71#,72#..DCRWD201205-201905

47321TUBE, REAR BRAKE, NO.1

main47321-37590iXKU700,710,720201107-201905

47321GTUBE, REAR BRAKE, FRAME NO.1

main47321-37600iXKU700,710,720201107-201204

main47321-37601iXKU700,710,720201204-201205

sub47321-37602

main47321-37602iXKU700,710,720201205-201905

47322TUBE, REAR BRAKE, NO.2

main47322-37B40iXKU700,710,720201107-201905

47324TUBE, REAR BRAKE, NO.4

main47324-37390iXKU700,710,720201107-201905

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-37210iXKU710,720..DCWDO201107-201905

main47351-37300iXKU702,712,722201107-201905

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-37130iXKU710,720..6F201107-201905

main47352-37180iXKU702,712,722..DCRWD201107-201905

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47353-37250iXKU700,710,720201107-201905

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-37200iXKU710,720..20T201107-201905

main47353-37261iXKU700,710,720..30T,35T,40T201107-201905

47354BRACKET, FRONT FLEXIBLE HOSE

main47354-37240iXKU702,71#,72#..DCWDO201107-201905

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-37141iXKU700,710,720..30T,35T,40T201107-201905

main47354-37200iXKU710,720..DCRWD201107-201905

47371ACLAMP, BRAKE TUBE, NO.1

main90959-01595iXKU700,710,720201107-201905

47371BCLAMP, BRAKE TUBE, NO.6

main90959-01602iXKU700,710,720201107-201905

47373BCLAMP, BRAKE TUBE, NO.3

main47371-37350iXKU700,710,720201107-201905

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00726iXKU700,710,720201107-201905

47375CLAMP, BRAKE TUBE, NO.5

main90949-01540iXKU700,710,720201107-201905

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-37281iXKU700,710,720..5F201107-201905

47392AWAY, BRAKE TUBE, NO.2

main47391-37410iXKU702,71#,72#..DCRWD201905

main47391-37410iXKU700,710,720201107-201905

main47391-37680iXKU702,71#,72#..DCWDO201905

47395WAY, BRAKE TUBE, NO.3

main47391-37480iXKU702,71#,72#..DCWDO201107-201905

5251

4444037010BRACKET ASSY, PUMP

main44440-37010

4737137110BRACKET, CONNECTOR

main47371-37110

4737137160BRACKET, CONNECTOR

main47371-37160

4737137170BRACKET, CONNECTOR

main47371-37170

4737137360BRACKET, CONNECTOR

main47371-37360

9012908007

main90129-08007

9046808035

main90468-08035

9048001621

main90480-01621

9155180825

main91551-80825

91611G0820

main91611-G0820

9415180800

main94151-80800

42 parts on this diagram · 5 diagrams in section
