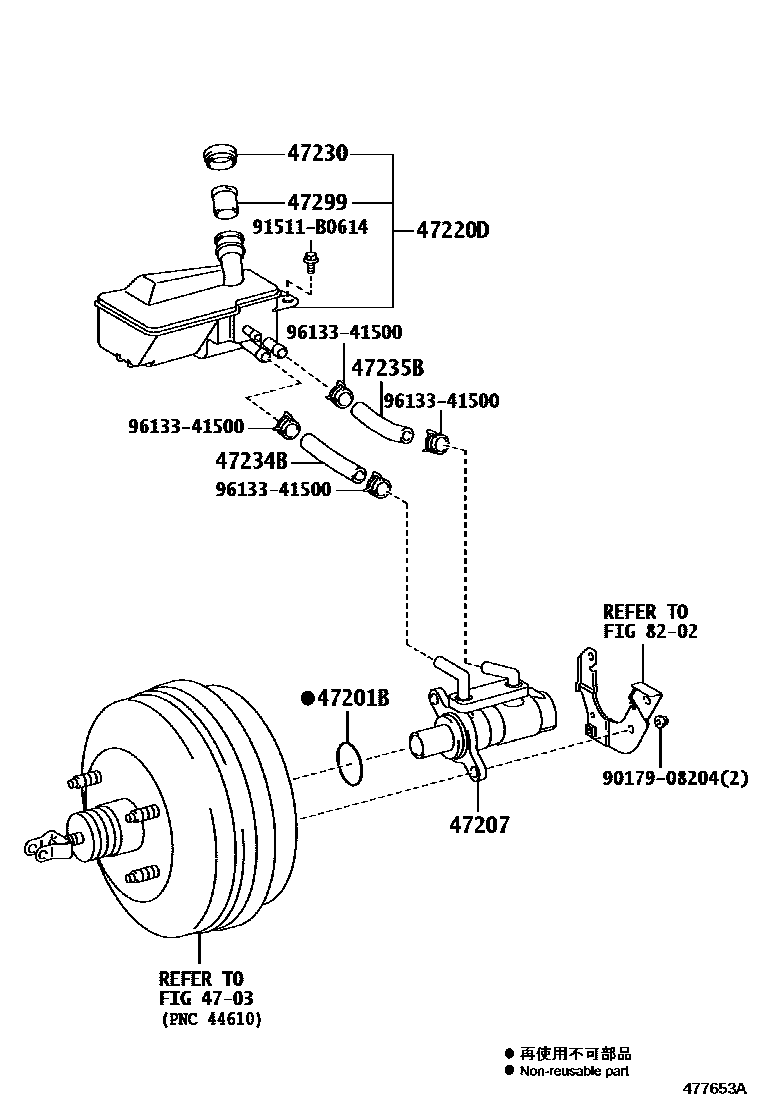

Toyota DYNA/TOYOACE HV — BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-37280iXKU700,710,720..5F201506-201901

main47201-37360iXKU702,71#,72#..6F201902-201905

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iXKU700,710,720201107-201905

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-37160iXKU700,710,720201107-201506

sub47201-37280

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-37160iXKU710,720..5F..20T201107-201905

main47220-37180iXKU702,712,722..DCWDO201107-201905

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iXKU710,720..6F201107-201905

main47230-37081iXKU702,712,722201107-201905

47234BTUBE, RESERVOIR, NO.1

main47234-37170iXKU700,710,720201107-201905

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37160iXKU700,710,720201107-201905

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iXKU710,720..20T201107-201905

main47299-37080iXKU702,712,722201107-201905

8202

9017908204

main90179-08204

91511B0614

main91511-B0614

9613341500

main96133-41500

13 parts on this diagram · 2 diagrams in section
