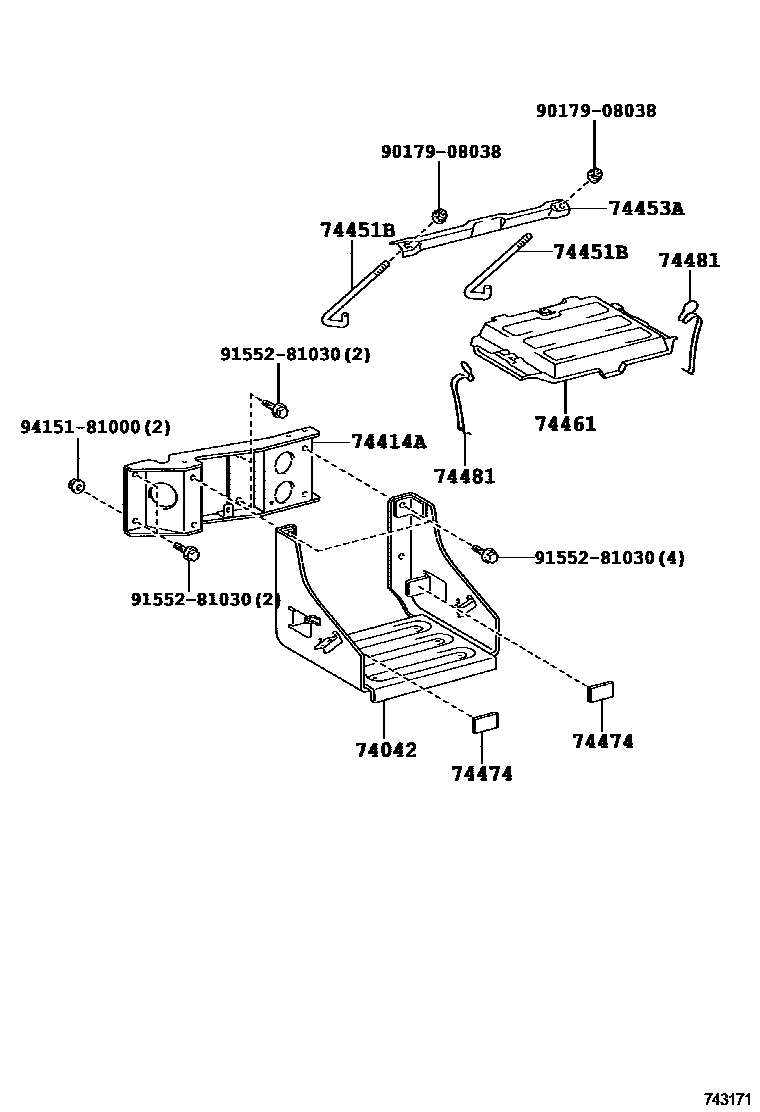

Toyota DYNA/TOYOACE HV — BATTERY CARRIER

0001 1 0002 1 0005 1

74042BRACKET SUB-ASSY, BATTERY

main74042-37280iXKU700,710,720201107-201310

sub74042-37281

main74042-37281iXKU700,710,720201311-201905

main74042-37450iXKU702,71#,72#..DCRWD201905

74414ABRACKET, BATTERY, NO.1

main74401-37150iXKU700201107-201905

74451BBOLT, BATTERY CLAMP

main74451-37011iXKU700,710,720201107-201905

sub74451-37012

main74451-37022iXKU702,71#,72#..DCRWD201905-202304

sub74451-37023

main74451-37023iXKU702,71#,72#..DCWDO202305

74453ABAR, BATTERY SET PLATE

main74453-36070iXKU700,710,720201107-201905

sub74453-37130

main74453-37090iXKU702,71#,72#..DCRWD201905

74461COVER, BATTERY

main74461-37020iXKU700,710,720..5F201107-201905

main74461-37130iXKU702,71#,72#..DCRWD201905

74474PAD, BATTERY

main74475-36040iXKU700,710,720201107-201702

74481CLAMP, BATTERY HOLD DOWN

main74481-36030iXKU700,710,720201107-201905

main74481-37020iXKU702,71#,72#..DCWDO201905

9017908038

main90179-08038

9155281030

main91552-81030

9415181000

main94151-81000

10 parts on this diagram · 3 diagrams in section
