Toyota DYNA/TOYOACE HV — ASH RECEPTACLE

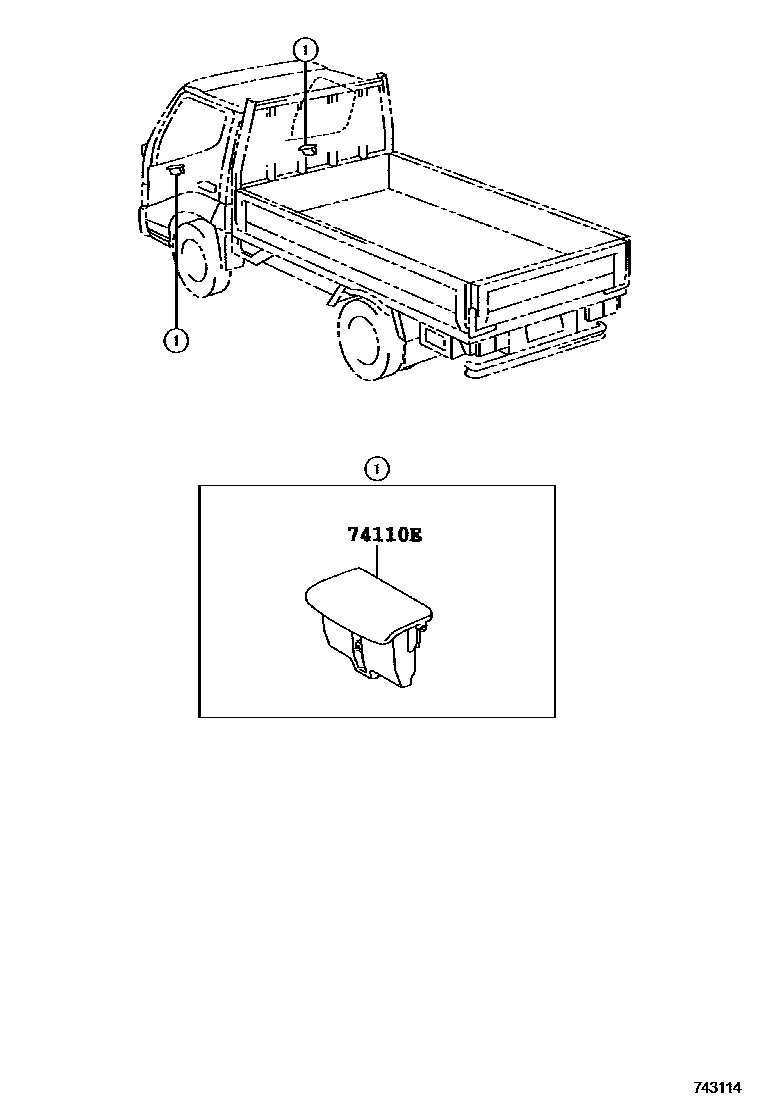

Parts diagram

74110ERECEPTACLE ASSY, FRONT ASH

main74110-37010-B0i201107-201905

GRAY,TRIM1#

main74110-37010-B0i201107-201905

1 parts on this diagram · 1 diagram in section
