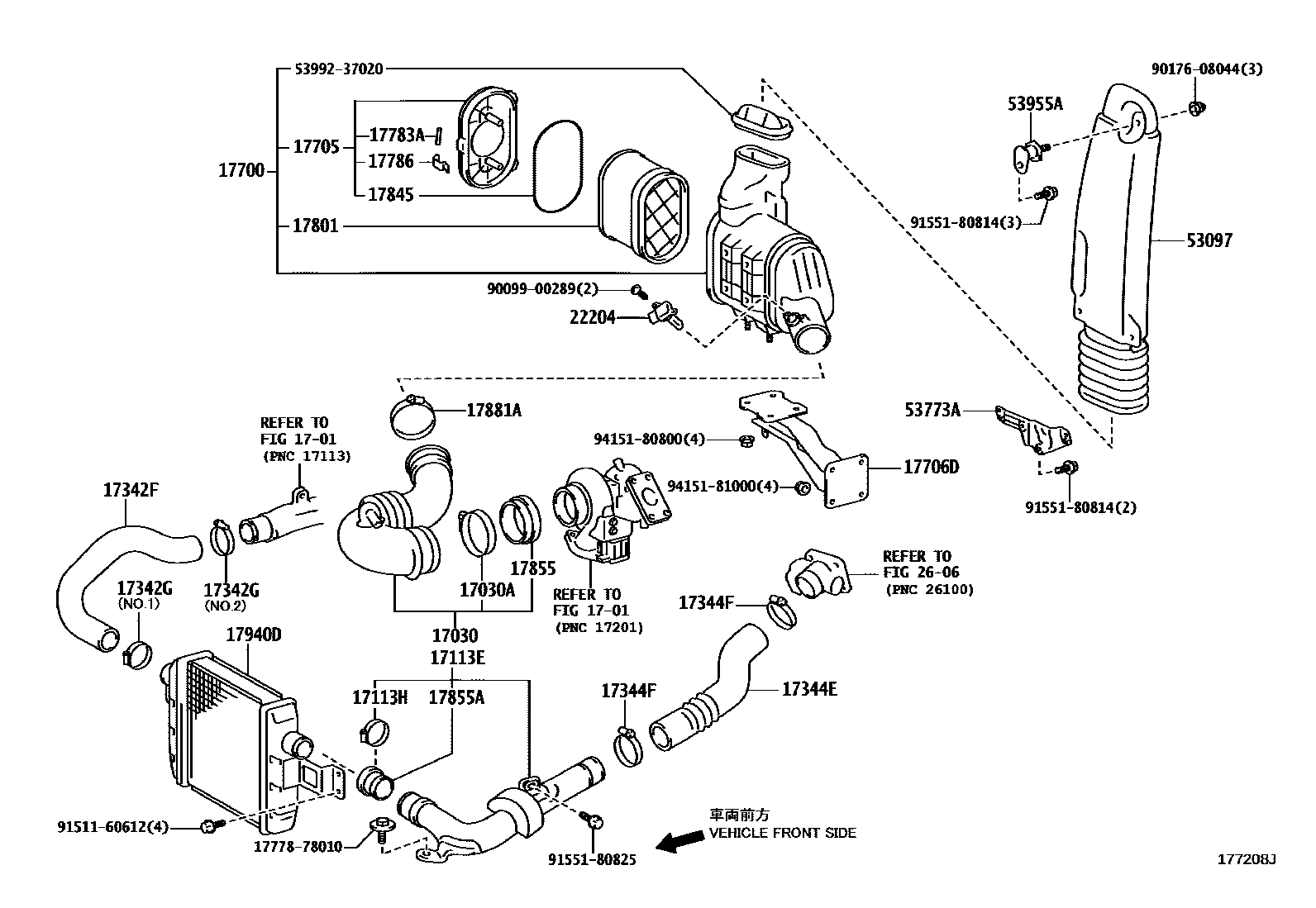

Toyota DYNA/TOYOACE HV — AIR CLEANER

0001 1 0002 1

1701

17030HOSE ASSY, AIR

main17030-78530iN04C..XKU702,71#,72#..6F201107-201905

sub17030-78531

main17030-78821iN04C..XKU702,71#,72#..DCRWD201905-201906

sub17030-78822

main17030-78822iN04C..XKU702,71#,72#..DCRWD201906

17030ACLAMP, HOSE

main17781-78060iN04C..XKU700,710,720201107-201905

main17781-78140iN04C..XKU702,71#,72#..DCWDO201905

17113EPIPE, INTAKE, NO.1

main17103-78230iN04C..XKU702,71#,72#..DCWDO202103

main17103-78240iN04C..XKU702,71#,72#..DCRWD201107-201905

17113HCLAMP, INTAKE PIPE

main17781-78100iN04C..XKU700,710,720201107-201905

17342FHOSE, AIR, NO.2(FOR INTERCOOLER)

main17342-78190iN04C..XKU700,710,720201107-201905

17342GCLAMP, HOSE, NO.2(FOR INTERCOOLER)

main90034-60046iN04C..XKU702,71#,72#..DCRWD201107-201905

main90034-60046iN04C..XKU702,71#,72#..DCWDO202103

main90034-60047iN04C..XKU700,710,720201107-201905

main90034-60047iN04C..XKU702,71#,72#..DCWDO202103

17344EHOSE, AIR, NO.4

main17344-78210iN04C..XKU700,710,720201107-201705

sub17344-78340

main17344-78340iN04C..XKU700,710,720..5F201705-201905

17344FCLAMP, HOSE(FOR AIR HOSE, NO.4)

main90034-60048iN04C..XKU700,710,720201107-201905

17700CLEANER ASSY, AIR

main17700-78560iN04C..XKU702,71#,72#..6F201107-201905

main17700-78740iN04C..XKU702,71#,72#..DCRWD201905-201908

main17700-78830iN04C..XKU702,71#,72#..DCRWD201909

17705CAP SUB-ASSY, AIR CLEANER

main17705-78070iN04C..XKU700,710,720201107-201905

17706DSTAY SUB-ASSY, AIR CLEANER

main17706-78230iN04C..XKU700,710,720201107-201905

sub17706-78260

main17706-78260iN04C..XKU702,71#,72#..DCRWD201905

17783ARETAINER, AIR CLEANER INLET

main17783-78010iN04C..XKU700,710,720..5F201107-201905

17786CLAMP, AIR CLEANER

main17786-78010iN04C..XKU700,710,720201107-201302

main17786-78020iN04C..XKU700,710,720201303-201905

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-78090iN04C..XKU700,710,720201107-201905

17845GASKET, AIR CLEANER CAP

main17845-78020iN04C..XKU700,710,720201107-201302

sub17845-78021

main17845-78021iN04C..XKU700,710,720201303-201905

17855GASKET, AIR INLET DUCT, NO.1

main17855-78010iN04C..XKU700,710,720201107-201905

main17855-78130iN04C..XKU702,71#,72#..DCRWD201905

17855AGASKET, AIR INLET DUCT, NO.2

main17855-78030iN04C..XKU700,710,720201107-201905

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main17781-78160iN04C..XKU702,71#,72#..DCWDO202005

main90460-99005iN04C..XKU700,710,720..5F201108-202004

main90460-99007iN04C..XKU700,710,720201107-201108

17940DINTERCOOLER ASSY

main17940-78170iN04C..XKU700,710,720201107-201712

sub17940-78171

main17940-78171iN04C..XKU700,710,720..5F201712-201905

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-E0010iN04C..XKU700,710,720201107-201905

main22204-E0020iN04C..XKU702,71#,72#..DCRWD201905

2606

53097INLET SUB-ASSY

main53097-37350iXKU700,710,720201107-201109

sub53097-37351

main53097-37351iXKU700,710,720201110-201904

sub53097-37352

main53097-37352iXKU702,71#,72#..DCRWD201905

53773ABRACKET, AIR CLEANER MOUNTING

main53773-37150iXKU700,710,720201107-201905

53955ACUSHION, AIR CLEANER INLET NO.1

main53955-37030iXKU700,710,720201107-201905

1777878010BOLT, AIR CLEANER SET

main17778-78010

5399237020GUIDE, COOL AIR

main53992-37020

9009900289

main90099-00289

9017608044

main90176-08044

9151160612

main91511-60612

9155180814

main91551-80814

9155180825

main91551-80825

9415180800

main94151-80800

9415181000

main94151-81000

34 parts on this diagram · 2 diagrams in section
