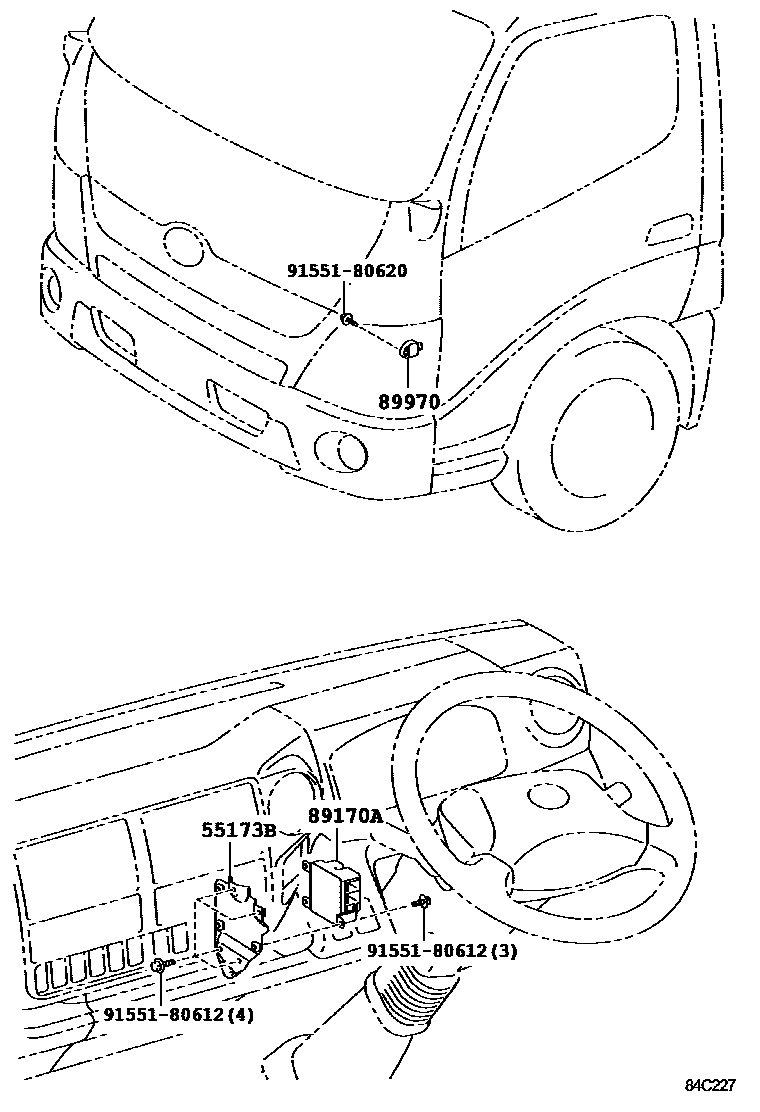

Toyota DYNA/TOYOACE HV — AIR BAG

55173BBRACKET

main55173-37250iXKU700,710,720201107-201108

sub55173-37251

main55173-37251iXKU700,710,720201108-201905

89170ACOMPUTER ASSY, AIRBAG

main89170-37110iXKU700,710,720201107-201111

sub89170-37111

main89170-37111iXKU700,710,720201112-201706

sub89170-37112

main89170-37112iXKU70#,71#,72#201706-201804

sub89170-37113

main89170-37113iXKU702,71#,72#..6F201805-202409

main89170-37114iXKU702,71#,72#..DCWDO202410

89970SENSOR ASSY, AIRBAG, NO.2

main89970-37020iXKU700,710,720201107-201905

9155180612

main91551-80612

9155180620

main91551-80620

5 parts on this diagram · 1 diagram in section
