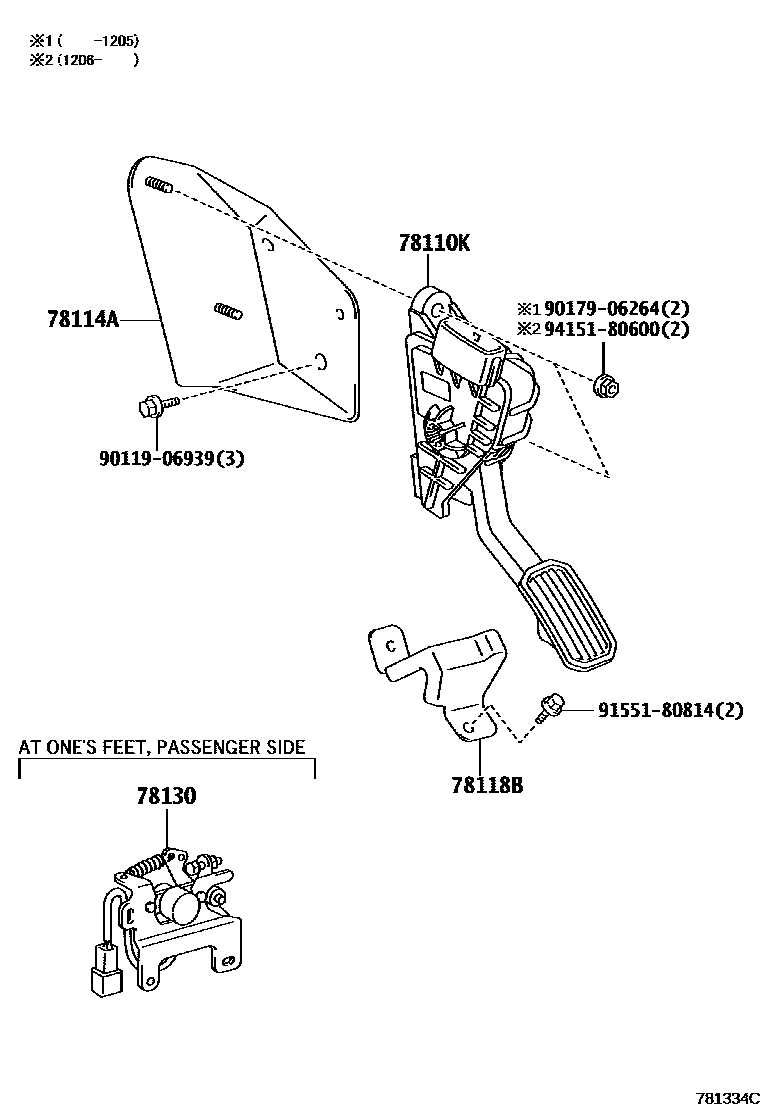

Toyota DYNA/TOYOACE HV — ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78120-35460iXKU700,710,720201107-201604

sub78120-35461

main78120-35461iXKU700,710,720201605-201905

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-37040iXKU700,710,720201107-201905

78118BSTOPPER, ACCELERATOR PEDAL

main78118-37040iXKU700,710,720201107-201905

78130BELLCRANK ASSY, ACCELERATOR

main78130-37131

9011906939

main90119-06939

9017906264

main90179-06264

9155180814

main91551-80814

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section
