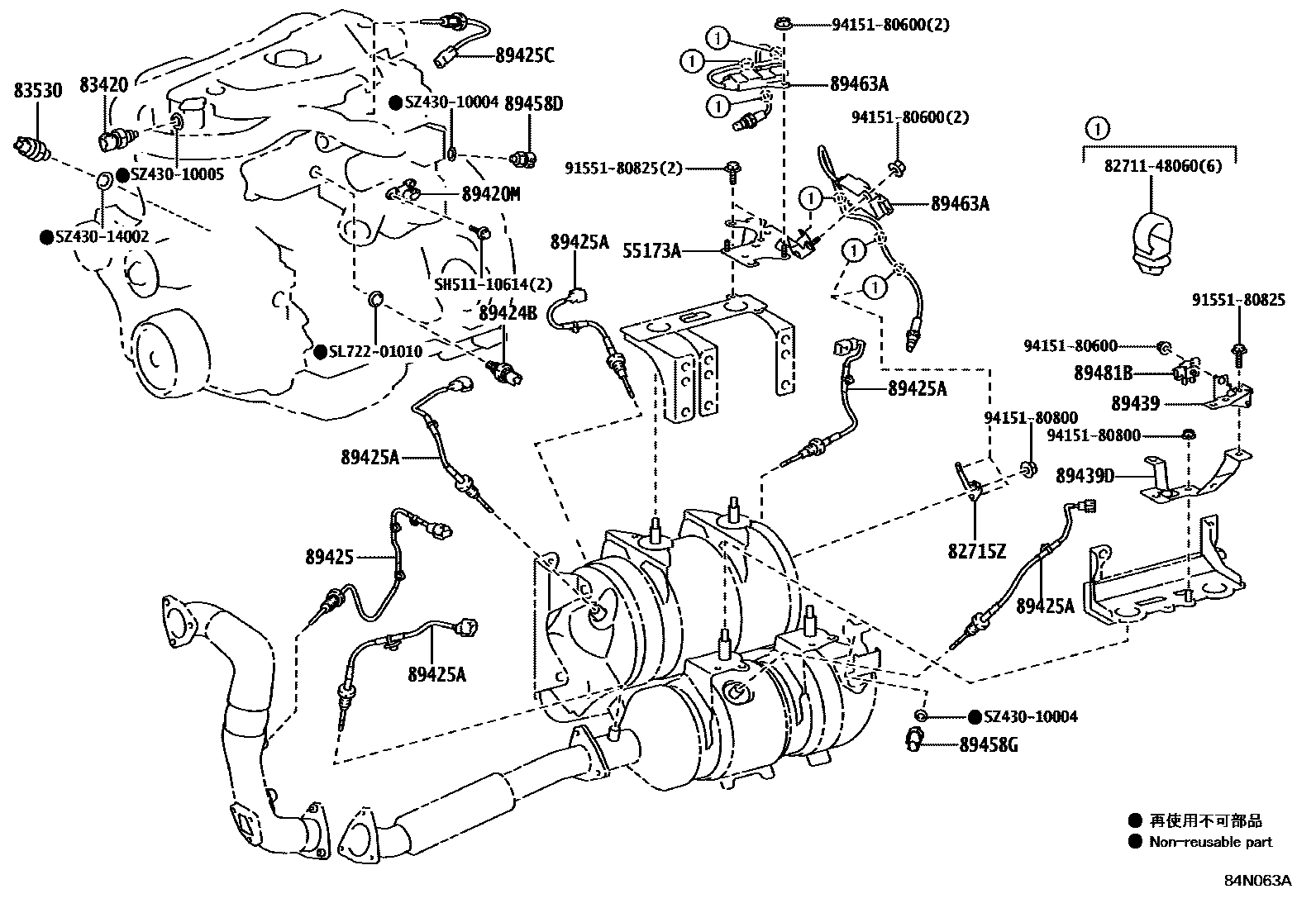

Toyota DYNA HV — SWITCH & RELAY & COMPUTER

0001 1����� 0002 1��������� 0003 1�������� 0004 1��� 1/2 0005 1��� 2/2 0006 1������������ 0007 1������� 0008 1���,��� & ��� 0009 1�������

55173ABRACKET

main55173-37711iXKC605,XKU605,645,655202103

82715BRACKET,WIRING HARNESS CLAMP

main82715-3VU90iXKC605,XKU605,645,655202103

82715ZBRACKET, WIRING HARNESS CLAMP

main82715-3VW80iXKC605,XKU605,645,655202103

83420GAGE ASSY, WATER TEMPERATURE SENDER

mainS834201250iXKC605,XKU605,645,655202103

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-E0250iXKC605,XKU605,645,655202103

89420MSENSOR ASSY, AIR PRESSURE

main89421-E0050iXKC605,XKU605,645,655202103

89424BSWITCH, INLET AIR TEMPERATURE

main89424-37020iXKC605,XKU605,645,655202103

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-37300iXKC605,XKU605,645,655202103

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-37350×5iXKC605,XKU605,645,655202103

89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4

main89425-37360iXKC605,XKU605,645,655202103

89439BRACKET, SENSOR

main89439-37330iXKC605,XKU605,645,655202103

89439DBRACKET, SENSOR, NO.1

main89439-37440iXKC605,XKU605,645,655202103

89458DSENSOR, FUEL PRESSURE

main89458-E0050iXKC605,XKU605,645,655202103

89458GSENSOR, FUEL PRESSURE, NO.2

main89458-E0050iXKC605,XKU605,645,655202103

89463ASENSOR, NITROGEN OXIDES

main89463-E0611×2iXKC605,XKU605,645,655202103

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-E0021iXKC605,XKU605,645,655202103

8271148060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48060

9155180825

main91551-80825

9415180600

main94151-80600

9415180800

main94151-80800

SH51110614

mainSH511-10614

SL72201010

mainSL722-01010

SZ43010004WASHER, SOFT, NO.1

mainSZ430-10004

SZ43010005WASHER, SOFT, NO.1

mainSZ430-10005

SZ43014002WASHER, SOFT, NO.1

mainSZ430-14002

25 parts on this diagram · 9 diagrams in section
