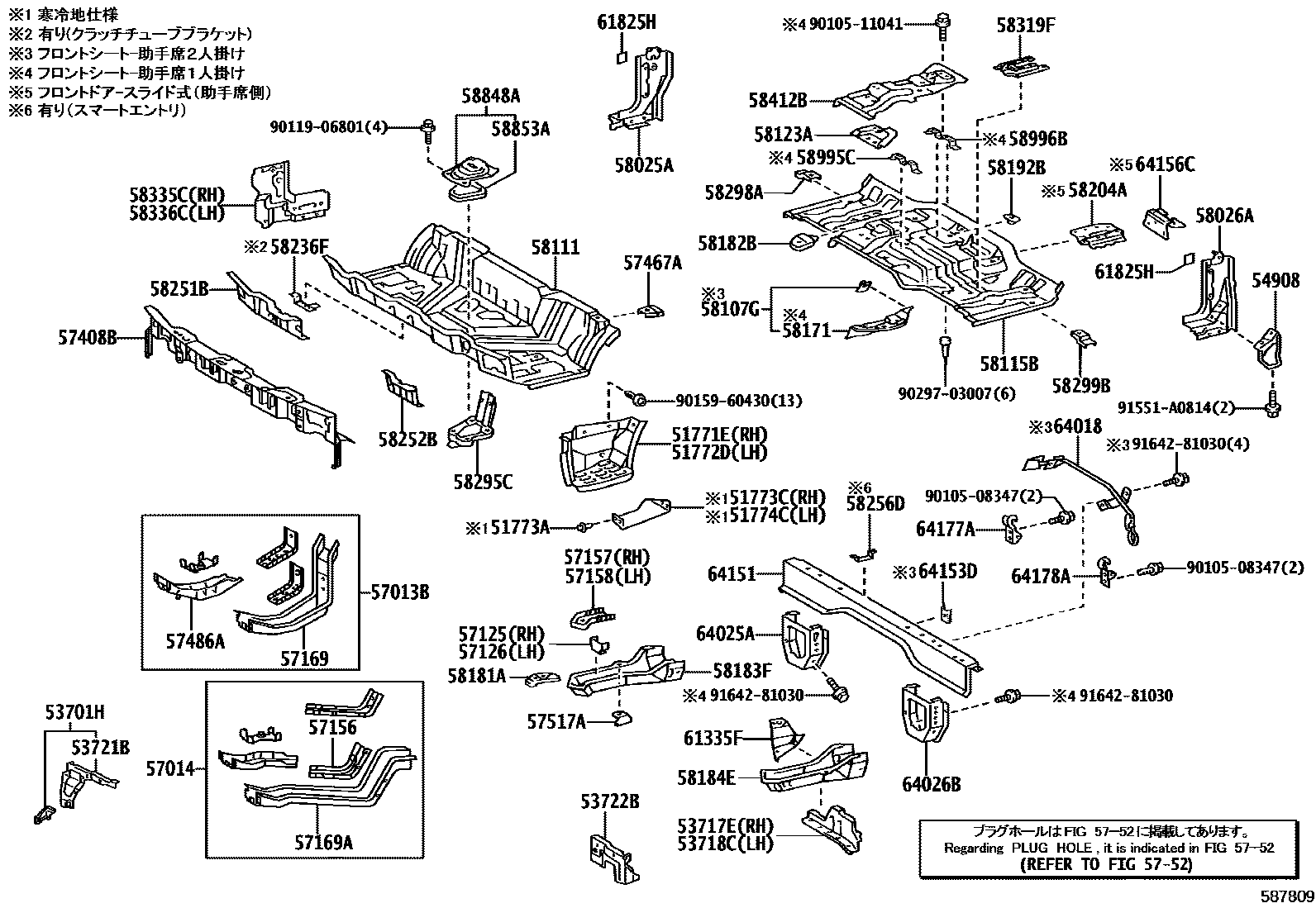

Toyota DYNA HV — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51771EPLATE, STEP, RH
51772DPLATE, STEP, LH
51773ACLIP, STEP PLATE COVER
51773CCOVER, STEP PLATE, RH
51774CCOVER, STEP PLATE, LH
53701HAPRON SUB-ASSY, FRONT FENDER, RH
53717EAPRON, FRONT FENDER, NO.2 RH
53718CAPRON, FRONT FENDER, NO.2 LH
53721BAPRON SUB-ASSY, FENDER SIDE, RH
53722BAPRON SUB-ASSY, FENDER SIDE, LH
54908BRACKET SUB-ASSY, TILT CAB GRIP
57013BMEMBER SUB-ASSY, FLOOR, FRONT RH
57014MEMBER SUB-ASSY, FLOOR, FRONT LH
57125BRACKET, FRONT SIDE MEMBER, RH
57126BRACKET, FRONT SIDE MEMBER, LH
57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH
57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH
57169MEMBER, FRONT FLOOR, FRONT RH
57169AMEMBER, FRONT FLOOR, FRONT LH
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH
57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR
5752HOLE PLUG
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58107GREINFORCE SUB-ASSY, PARKING BRAKE BASE
58111PAN, FRONT FLOOR
58115BPANEL, FRONT FLOOR, REAR
58123ASUPPORT, SHIFT & SELECT LEVER
58171REINFORCEMENT, PARKING BRAKE BASE
58181ARETAINER, SEAT RAIL, FRONT
58182BRETAINER, SEAT RAIL, FRONT LH
58183FREINFORCEMENT, REAR MOUNTING, RH
58184EREINFORCEMENT, REAR MOUNTING, LH
58192BPLATE, FRONT FLOOR, REAR
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58236FBRACKET, CLUTCH TUBE
58251BBRACE, FLOOR PANEL, FRONT
58252BBRACE, FLOOR PANEL, FRONT LH
58256DBRACKET, FRONT FLOOR HARNESS
58295CBRACKET, FLOOR SHIFT LEVER, NO.1
58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH
58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH
58319FBRACKET, REAR FLOOR SIDE PANEL
58335CPLATE, FLOOR SIDE, FRONT RH
58336CPLATE, FLOOR SIDE, FRONT LH
58412BREINFORCEMENT, ENGINE SUB COVER
58848ACOVER, SHIFT LEVER HOLE
58853APACKING, SHIFT LEVER HOLE
58995CBRACKET, CONSOLE BOX MOUNTING, NO.1
58996BBRACKET, CONSOLE BOX MOUNTING, NO.2
61335FRETAINER, SEAT BELT ANCHOR
61825HPAD, NOISE SHUTTER, NO.2
64018BAR SUB-ASSY, BODY
64025ABRACKET SUB-ASSY, REAR MOUNTING, RH
64026BBRACKET SUB-ASSY, REAR MOUNTING, LH
64151FRAME, BACK
64153DREINFORCEMENT, BACK FRAME
64156CPLATE, BACK FRAME, LH
64177ASTOPPER, REAR MOUNTING BRACKET, RH
64178ASTOPPER, REAR MOUNTING BRACKET, LH
9010508347
main90105-08347
9010511041
main90105-11041
9011906801
main90119-06801
9015960430
main90159-60430
9029703007
main90297-03007
91551A0814
main91551-A0814
9164281030
main91642-81030
70 parts on this diagram · 2 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota DYNA HV
This section contains 86 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota DYNA HV. Key components include: PLATE, STEP, RH, PLATE, STEP, LH, CLIP, STEP PLATE COVER, COVER, STEP PLATE, RH, COVER, STEP PLATE, LH.
