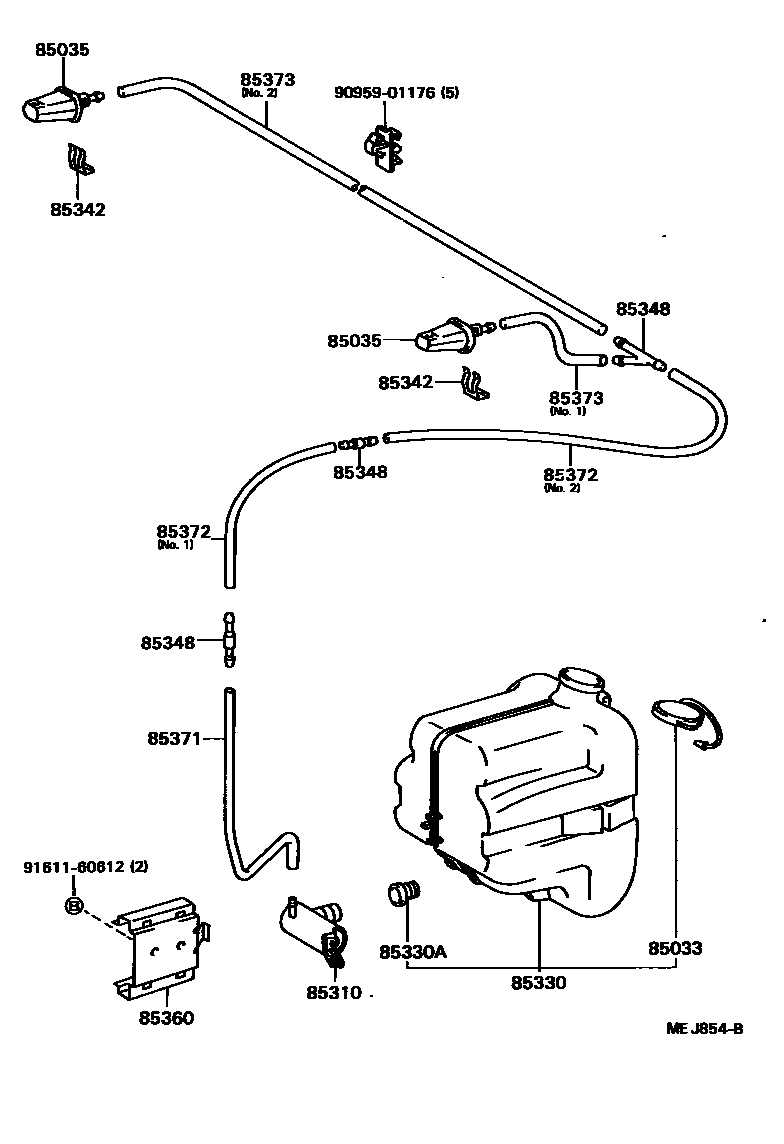

Toyota DYNA 200 — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120i198708-198808

85035NOZZLE SUB-ASSY, WASHER

main85035-95708×2i198708-198808

main85035-95A08×2i198708-198808

SWITZERLAND SPEC

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080i198708-198808

main85310-90B00i198708-198808

ALGERIA SPEC; CHINA SPEC; CHINA SPEC OR SWITZERLAND SPEC

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040i198708-198808

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i198708-198808

85342HOLDER, WASHER NOZZLE

main85342-95J01×2i198708-198808

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250i198708-198808

main85349-89122×2i198708-198808

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-95400i198708-198808

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013i198708-198808

L=1000

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33142i198708-198808

L=130,NO.1

main90099-33429i198708-198808

L=1000(*H,L=380),NO.2

main90446-06006i198708-198808

L=2000,*H,L=400,NO.3

main90446-06013i198708-198808

L=1000(*H,L=420),NO.2

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013i198708-198808

L=1450(*H,L=100),NO.1; L=1450(*H,L=680),NO.1,NO.2; L=1800(*H,L=620),NO.2

9095901176

main90959-01176

9161160612

main91611-60612

13 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota DYNA 200

This section contains 13 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota DYNA 200. Key components include: CAP ASSY, WINDSHIELD WASHER, NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
