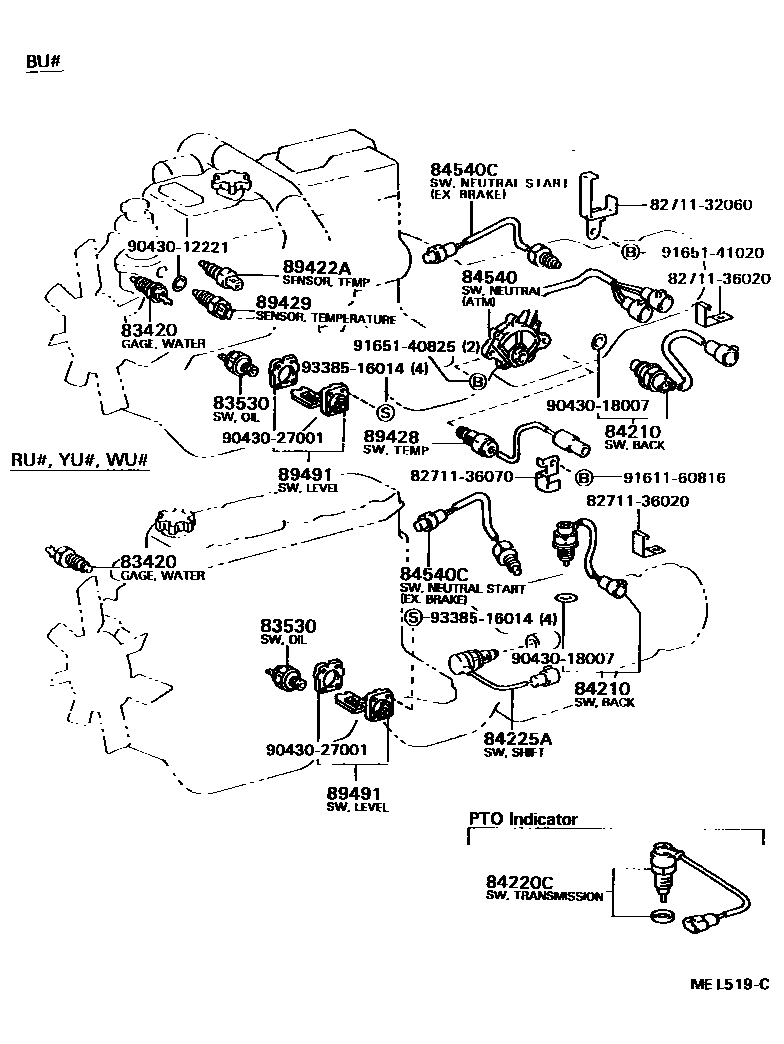

Toyota DYNA 200 — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iBU6#,70,8#,9#199309-199703

NIPPONDENSO

main83420-20020iBU6#,70,8#,9#198808-198811

main83420-20030iBU6#,70,8#,9#199309-199703

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iBU6#,70,8#,9#198808-199309

sub83530-28030

main83530-14070iBU6#,70,8#,9#199309-199403

sub83530-28010

main83530-30100iBU88,94199508-199703

YAZAKI

sub83530-60010

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iBU6#,70,8#,9#199309-199703

main84210-60021iBU6#,70,8#,9#..5F198808-199309

84220CSWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-22030iBU6#,8#,91,96..5F..WT..(ARL,GEN,GHD)..(CBU,IV3)198808-199109

main84240-36010iBU65..CBU199109-199505

84225ASWITCH, SHIFT POSITION

84540SWITCH ASSY, NEUTRAL START

main84540-36030iBU66..ARL198808-199202

84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

main84540-36040iBU91..ARL198808-199505

main84540-36050iBU60..ST..IV3;BU65..GEN..CBU;BU66,83,84,88,94,96..5F..DSL;BU60,61,91..WT..DSL..(GEN,SA)199105-199210

89422ASENSOR, WATER TEMPERATURE

main89422-36010iBU88..IV1;BU60,61,65,66,70,83,84,87,94..GEN,GHD198905-199008

sub89422-37030

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-36010iBU66..ARL198808-199204

89429SENSOR, OIL TEMPERATURE

main89422-20010iBU88,91..LHD..DSL198808-199505

89491SENSOR, ENGINE OIL LEVEL

main89491-36040iBU66,67,87,88,9#..ARL,GEN,GHD198910-199703

main89491-36050iBU60,61,65,70,83,84198910-199505

8271132060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32060

8271136020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36020

8271136070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36070

9043012221

main90430-12221

9043018007

main90430-18007

9043027001

main90430-27001

9161160816

main91611-60816

9165140825

main91651-40825

9165141020

main91651-41020

9338516014

main93385-16014

21 parts on this diagram · 7 diagrams in section
