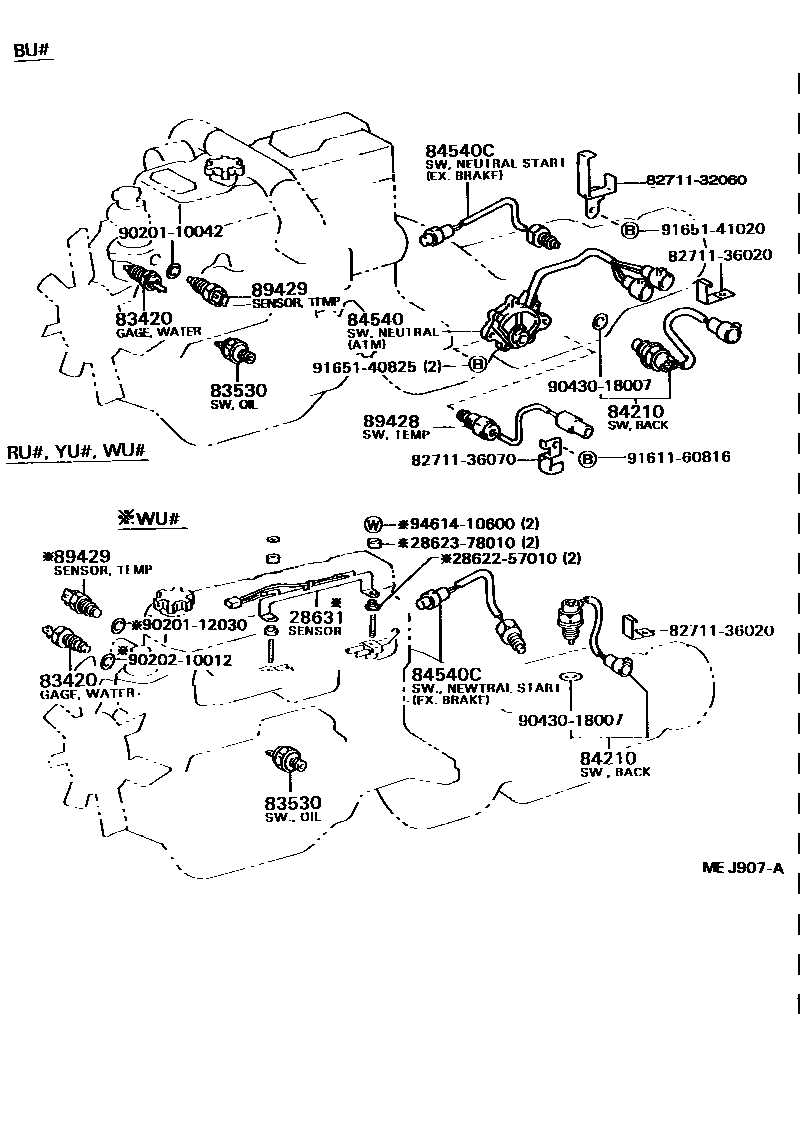

Toyota DYNA 200 — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

28631SENSOR, GLOW PLUG CURRENT

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iBU6#,70,8#,93198710-198808

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iBU6#,70,8#198708-198710

sub83530-28030

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iBU6#,70,8#..5F198708-198710

84540SWITCH ASSY, NEUTRAL START

main84540-36030iBU62..ARL198708-198808

84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

main84540-36050iBU85..IV1;BU81,85..ARL,SA198708-198710

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-36010iBU62..ARL198708-198808

89429SENSOR, OIL TEMPERATURE

main89422-30020iBU61,62,65,85..ARL198708-198808

sub89422-12010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862378010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-78010

8271132060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32060

8271136020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36020

8271136070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36070

9020110042

main90201-10042

9020112030

main90201-12030

9020210012

main90202-10012

9043018007

main90430-18007

9161160816

main91611-60816

9165140825

main91651-40825

9165141020

main91651-41020

9461410600

main94614-10600

21 parts on this diagram · 6 diagrams in section
