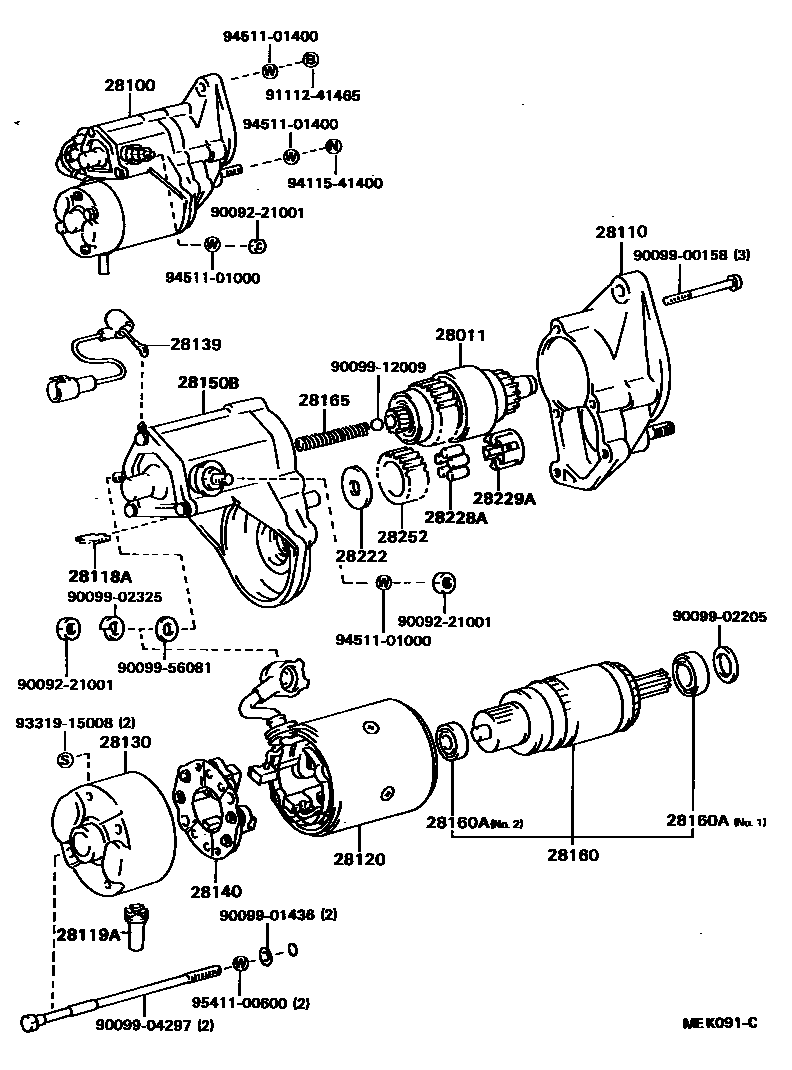

Toyota DYNA 200 — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
main28100-56220i11B..BU65..IV3; 11B..BU81..LHD; B..BU60..TW1..GEN;B..BU80..LHD..CBU;B,13B..BU60,85..LHD..WT; B..BU80..LHD..IV3198708-198808
24V 4.5KW; 24V 4.5KW,CHINA SPEC; 24V 4.5KW,CHINA SPEC OR SWITZERLAND SPEC
12V 2.5KW
28110HOUSING ASSY, STARTER DRIVE
28118APLATE(FOR STARTER YOKE)
28119ACOVER, STARTER END FRAME
28120YOKE ASSY, STARTER
main28120-56071i11B..BU65..IV3; 11B..BU81..LHD; B..BU60..TW1..GEN;B..BU80..LHD..CBU;B,13B..BU60,85..LHD..WT; B..BU80..LHD..IV3198708-198808
ALGERIA SPEC; CHINA SPEC; CHINA SPEC OR SWITZERLAND SPEC
28130FRAME ASSY, STARTER COMMUTATOR END
28139WIRE, LEAD, NO.1(FOR STARTER)
main28139-56220i11B..BU65..IV3; 11B..BU81..LHD; B..BU60..TW1..GEN;B..BU80..LHD..CBU;B,13B..BU60,85..LHD..WT; B..BU80..LHD..IV3198708-198808
ALGERIA SPEC; CHINA SPEC; CHINA SPEC OR SWITZERLAND SPEC
28140HOLDER ASSY, STARTER BRUSH
28150BSWITCH ASSY, MAGNETIC
main28150-56150i11B..BU65..IV3; 11B..BU81..LHD; B..BU60..TW1..GEN;B..BU80..LHD..CBU;B,13B..BU60,85..LHD..WT; B..BU80..LHD..IV3198708-198808
ALGERIA SPEC; CHINA SPEC; CHINA SPEC OR SWITZERLAND SPEC
28160ARMATURE ASSY, STARTER
main28160-77090i11B..BU65..IV3; 11B..BU81..LHD; B..BU60..TW1..GEN;B..BU80..LHD..CBU;B,13B..BU60,85..LHD..WT; B..BU80..LHD..IV3198708-198808
ALGERIA SPEC; CHINA SPEC; CHINA SPEC OR SWITZERLAND SPEC
28160ABEARING, STARTER ARMATURE
NO.2
NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
28222WASHER, STARTER IDLE GEAR CLUTCH
28228AROLLER, STARTER CLUTCH
28229ARETAINER, STARTER IDLE GEAR
28252GEAR, STARTER IDLE
9009221001
main90092-21001
9009900158
main90099-00158
9009901436
main90099-01436
9009902205
main90099-02205
9009902325
main90099-02325
9009904297
main90099-04297
9009912009
main90099-12009
9009956081
main90099-56081
9111241465
main91112-41465
9331915008
main93319-15008
9411541400
main94115-41400
9451101000
main94511-01000
9451101400
main94511-01400
9541100600
main95411-00600
31 parts on this diagram · 1 diagram in section
STARTER for Toyota DYNA 200
This section contains 31 genuine Toyota parts for the STARTER system of the Toyota DYNA 200. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, PLATE(FOR STARTER YOKE), COVER, STARTER END FRAME.
