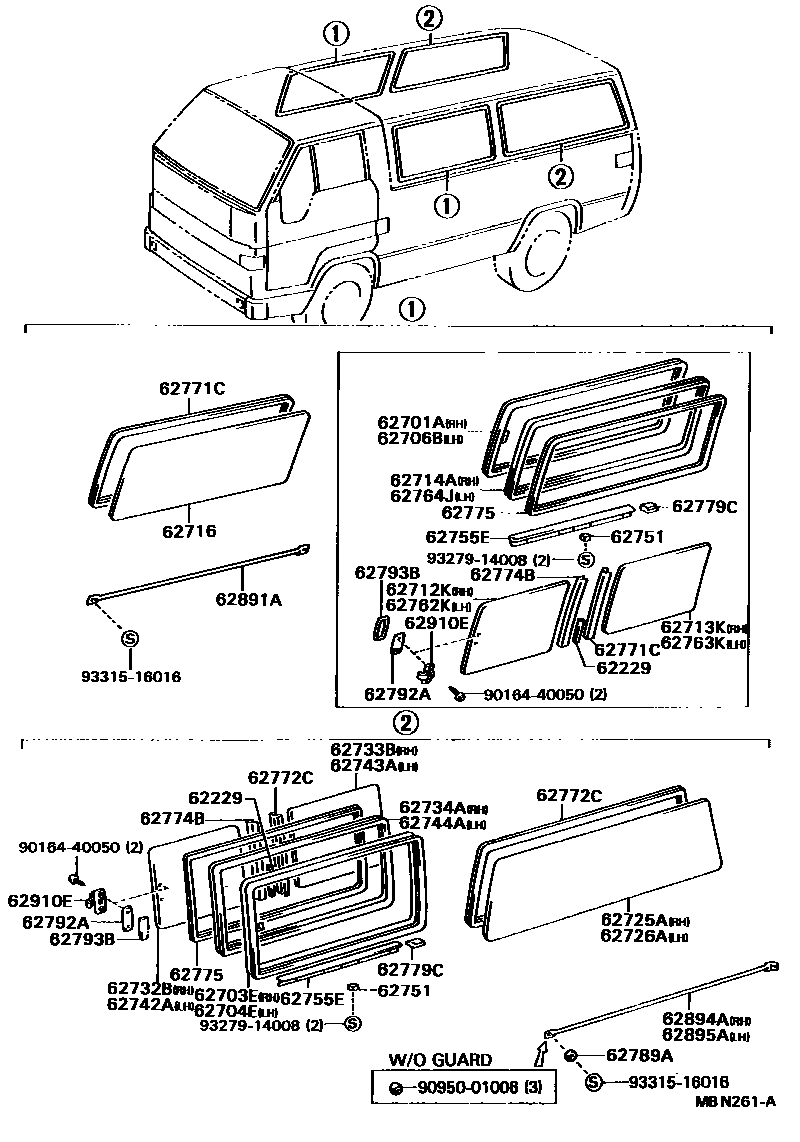

Toyota DYNA 200 — SIDE WINDOW

62229PACKING, SIDE WINDOW

main62757-95A00i198708-198808

SIDE WINDOW(FR LH); SIDE WINDOW(RR LH)

62701AFRAME SUB-ASSY, SIDE WINDOW, RH

main62705-95A00i198708-198808

62703EFRAME SUB-ASSY, SIDE REAR WINDOW, RH

main62703-95A04i198708-198808

62704EFRAME SUB-ASSY, SIDE REAR WINDOW, LH

main62704-95A02i198708-198808

62706BFRAME SUB-ASSY, SIDE DOOR WINDOW, LH

main62706-95A00i198708-198808

62712KGLASS, SIDE WINDOW, FRONT RH

main62752-95A00i198708-198808

*TEM,T=4.0

62713KGLASS, SIDE WINDOW, REAR RH

main62753-95A00i198708-198808

*TEM,T=4.0

62714ARUN, SIDE WINDOW, RH

main62754-95A00i198708-198808

62716GLASS, SIDE FRONT WINDOW FIXED

main62712-95A00i198708-198808

main62722-95A00i198708-198808

62725AGLASS, SIDE REAR WINDOW FIXED, RH

main62732-95A04i198708-198808

62726AGLASS, SIDE REAR WINDOW FIXED, LH

main62742-95A04i198708-198808

62732BHINGE, SIDE REAR WINDOW, UPPER

main62732-95A09i198708-198808

62733BGLASS, SIDE REAR WINDOW, REAR RH

main62733-95A04i198708-198808

*TEM,T=4.0

62734ARUN, SIDE REAR WINDOW GLASS, RH

main62734-95A04i198708-198808

62742AGLASS, SIDE REAR WINDOW, FRONT LH

main62742-95A08i198708-198808

*TEM,T=4.0

62743AGLASS, SIDE REAR WINDOW, REAR LH

main62743-95A04i198708-198808

*TEM,T=4.0

62744ARUN, SIDE REAR WINDOW GLASS, LH

main62744-95A02i198708-198808

62751STOP, SIDE WINDOW FIX GLASS

main62751-95661i198708-198808

SIDE WINDOW(FR LH)

main62751-95662i198708-198808

62755EPACKING, SIDE FRONT WINDOW, LOWER

main62755-95A00i198708-198808

SIDE WINDOW(FR LH)

main62756-95A01i198708-198808

62762KGLASS, SIDE DOOR WINDOW, FRONT LH

main62762-95A00i198708-198808

*TEM,T=4.0

62763KGLASS, SIDE DOOR WINDOW, REAR LH

main62763-95A00i198708-198808

62764JRUN, SIDE DOOR WINDOW, LH

main62764-95A00i198708-198808

62771CWEATHERSTRIP, SIDE WINDOW

main62771-95A01i198708-198808

main62772-95A01i198708-198808

main62773-95A00i198708-198808

SLIDE TYPE

62772CWEATHERSTRIP, SIDE REAR WINDOW

main62773-95A00i198708-198808

SLIDE TYPE

main62778-95A03i198708-198808

SIDE WINDOW(RR LH)

62774BCANNEL, SIDE WINDOW GLASS

main62774-95A00i198708-198808

SIDE WINDOW(FR LH)

62775CLIP, SIDE FRONT WINDOW

main62775-92605i198708-198808

SIDE WINDOW(FR LH); SLIDE TYPE,SIDE WINDOW(FR LH)

main62776-92605i198708-198808

SLIDE DOOR WINDOW; SLIDE TYPE,SLIDE DOOR WINDOW

main62777-92120i198708-198808

SLIDE TYPE

62779CSPACER, SIDE WINDOW FRAME

main62779-95A00×4i198708-198808

SIDE WINDOW(FR LH)

62789ASPACER

main62789-92605×4i198708-198808

62792APACKING, SIDE WINDOW LOCK, RH

main62792-95A00i198708-198808

SIDE WINDOW(FR LH)

62793BRETAINER, SIDE WINDOW LOCK, RH

main62793-95A01i198708-198808

SIDE WINDOW(FR LH)

62891ATUBE, SIDE WINDOW GUARD, FRONT

main62891-92605i198708-198808

62894ATUBE, SIDE WINDOW GUARD, RH

main62894-92605i198708-198808

62895ATUBE, SIDE WINDOW GUARD, LH

main62895-92605i198708-198808

62910ELOCK ASSY, SIDE WINDOW

main62910-95702i198708-198808

9016440050

main90164-40050

9095001006

main90950-01006

9327914008

main93279-14008

9331516016

main93315-16016

38 parts on this diagram · 1 diagram in section

SIDE WINDOW for Toyota DYNA 200

This section contains 38 genuine Toyota parts for the SIDE WINDOW system of the Toyota DYNA 200. Key components include: PACKING, SIDE WINDOW, FRAME SUB-ASSY, SIDE WINDOW, RH, FRAME SUB-ASSY, SIDE REAR WINDOW, RH, FRAME SUB-ASSY, SIDE REAR WINDOW, LH, FRAME SUB-ASSY, SIDE DOOR WINDOW, LH.
