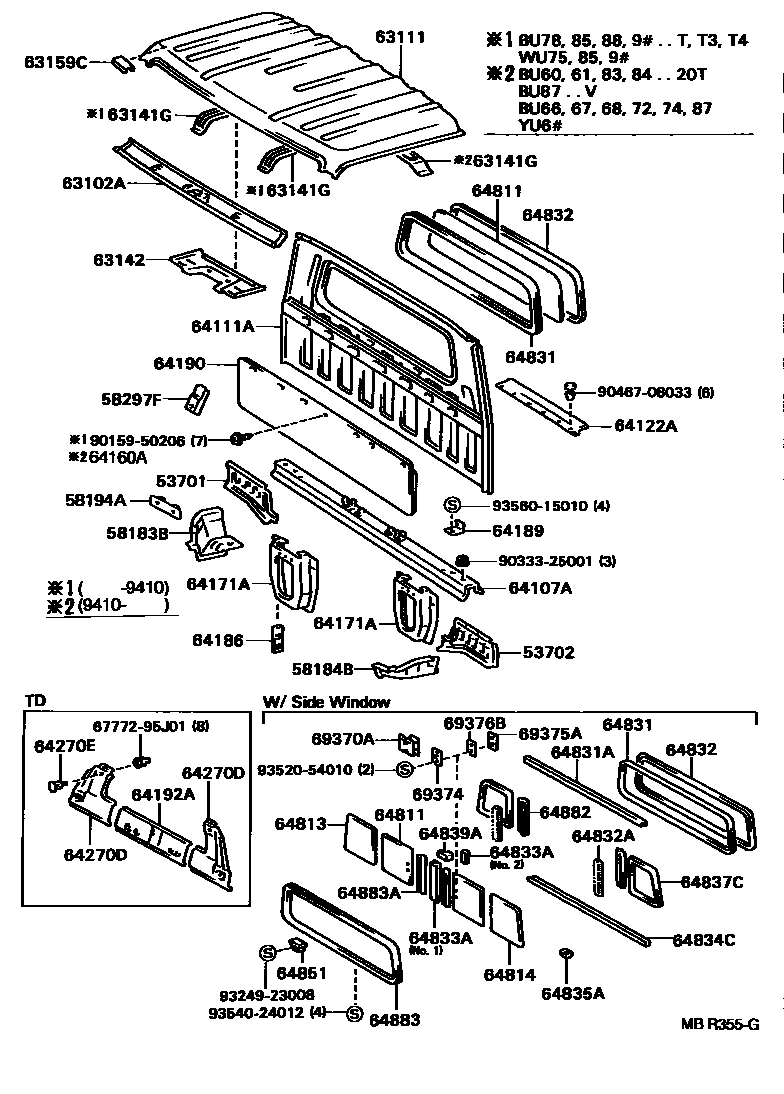

Toyota DYNA 200 — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-95407iYU6#,82..L2,T3199011-199505

main53701-95408iYU82..RHD..GEN199008-199011

main53703-92600iYU71198808-199309

main53717-95410iRU85,WU9#,YU85199102-199505

main53717-95411iYU62..TW1199011-199505

main53717-95413iYU62..TW1198808-199011

main53717-95414iRU85,WU9#198808-199008

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-95412iYU6#,82..L2,T3199011-199505

main53702-95413iYU6#,82..L2,T3198808-199008

main53704-92601iYU71198808-199309

main53718-95411iRU85,WU9#,YU85199102-199505

main53718-95412iYU62..TW1199011-199505

main53718-95414iRU85;YU62..TW1198808-199011

main53718-95415iRU85..GEN..IV3199008-199011

W(*AIC)

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-95404iRU85,WU9#,YU85;YU62,82..ARL,SA199102-199505

main58183-95405iYU71199007-199011

main58183-95406iYU6#,71,82..GEN198808-199007

main58183-95407iRU85199008-199011

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-95403iRU85,WU9#,YU85;YU62,82..ARL,SA199102-199505

main58184-95404iYU6#,82..GEN199011-199505

main58184-95405iYU6#,71,82..GEN198808-199011

main58184-95406iYU6#,82..(L2,T3)..GEN198808-199008

TILT CAB

58194ARETAINER, ENGINE COVER HINGE

main58194-95400×3iYU6#,71,82198912-199505

58297FREINFORCEMENT, SEAT BELT ANCHOR, NO.2

main58297-95401iRU85,WU9#,YU6#,82..LHD198808-199102

main58297-95402iRU85,YU8#..RHD198808-199505

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95403iWU9#199110-199305

TAIWAN PACKAGE

main63132-95418iYU6#,82198808-199505

sub63132-37010

main63132-95420iYU6#,82198808-199505

W(ROOF VENTIRATOR)

sub63132-37010

main63132-95423iRU85,WU9#,YU85198808-199505

sub63132-37040

63111PANEL, ROOF

main63111-37010iYU6#,82..L2,T3199004-199505

main63111-37020iYU6#,82..L2,T3199004-199505

W(ROOF VENTIRATOR)

main63111-95409iYU6#,82..L2,T3198808-199004

main63111-95410iYU6#,82..L2,T3198808-199004

W(ROOF VENTILATOR)

main63111-95411iRU85,WU9#,YU85198808-199505

main63111-95412iWU9#199110-199305

TAIWAN PACKAGE

main63111-95416iYU62..TW1198808-199505

W(ROOF VENTIRATOR)

main63111-95417iYU62..TW1198808-199505

main63113-92120iYU71198808-199309

CENTER REAR

main63113-92605iYU71198808-199309

CENTER FRONT

main63115-92605iYU71198808-199309

REAR

main63115-92613iYU71198808-199309

FRONT

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37010iYU6#,82..L2,T3199004-199505

main63141-95403×2iRU85,WU9#,YU85198808-199505

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iYU6#,82..L2,T3198808-199505

63159CSPACER, ROOF REINFORCEMENT

main63159-37020iWU9#199004-199305

64107AFRAME SUB-ASSY, BACK

main64107-37110iYU82..RHD199309-199505

sub64107-37200

main64107-37130iRU85,YU85..SA199309-199505

main64107-92624iYU71198808-199309

sub64107-92625

sub90333-25001

main64107-92626iYU71198808-199309

SAUDI ARABIA & GULF SPEC

main64107-95419iRU85..GEN198808-199505

main64107-95421iYU62..TW1198808-199505

SAUDI ARABIA & GULF SPEC

main64107-95423iYU6#,82..LHD..(L2,T3)198808-199505

main64107-95424iYU62,82..RHD198808-199309

sub90333-25001

main64107-95426iYU62..TW1198808-199505

main64107-95429iRU85..SA198808-199309

sub90333-25001

main64107-95434iWU9#198808-199305

64111APANEL, BACK

main64100-37010iWU9#199110-199305

TAIWAN PACKAGE

sub64100-37820

main64100-95442iYU6#,82..LHD..(L2,T3)198808-199505

sub64100-37640

main64100-95444iYU6#,82..LHD..(L2,T3)198808-199109

W(HEADREST)

sub64100-37660

main64100-95445iRU85..SA198808-199403

sub64100-37590

sub64160-37010

main64100-95447iYU82..RHD198808-199505

sub64100-37680

main64100-95448iYU62..ARL198808-199204

sub64100-37690

main64100-95450iYU62..TW1198808-199505

sub64111-95412

sub63218-95402

sub64116-95A01

sub64117-95400

sub64119-95A01

main64100-95451iRU85,WU9#..GEN198808-199505

sub64100-37870

64122ABAFFLE, DUST REAR BODY

main64122-37040iYU82;YU62..IV3199305-199310

main64122-37050iRU85..SA;RU85..CBU199310-199505

main64122-37060iYU62..TW1199210-199505

sub64122-37061

main64122-37080iYU62..T3..CBU199305-199505

main64122-95405iYU62,82..T3198808-199210

main64122-95406iRU85,WU9#198808-199210

main64122-95A06iYU62..TW1198808-199210

main65455-93100iYU63198808-199210

main65455-93102iYU63199210-199505

64160ACLIP(FOR BACK PANEL UPPER SILENCER)

64171ABRACKET SUB-ASSY, REAR MOUNTING

main64025-25010×2iYU6#,82..(L2,T3)..GEN199107-199402

sub64025-25011

main64025-25020×2iYU71;YU62..TW1199107-199402

main64025-95400×2iYU6#,82..(L2,T3)..GEN198808-199505

RH

sub64025-37030

main64026-95400iRU85,WU9#,YU85198808-199505

LH

main64171-95408×2iYU6#,82..(L2,T3)..GEN198808-199107

main64171-95410×2iYU71;YU62..TW1198808-199105

64186RETAINER, REAR MOUNTING BRACKET

main64186-95A00×2iYU6#,71,82..LHD198808-199505

SAUDI ARABIA & GULF SPEC

64189CLAMP, BACK PANEL SILENCER

main64189-95400×2iYU62..ARL198808-199204

64190SILENCER ASSY, BACK PANEL

main64190-95400iYU62..ARL198808-199204

main64190-95408iWU9#199110-199305

SAUDI ARABIA & GULF SPEC

64192ABOARD, BACK PANEL SILENCER, UPPER

main64192-37010-B0iWU9#199110-199305

SAUDI ARABIA & GULF SPEC,GRAY,TRIM1#

64270DTRIM ASSY, BACK PANEL

main64270-37010-B0iWU9#199110-199305

SAUDI ARABIA & GULF SPEC,GRAY,TRIM1#,RH

main64270-37020-B0iWU9#199110-199305

SAUDI ARABIA & GULF SPEC,GRAY,TRIM1#,LH

64270ECLIP

main90467-07054-13×8iWU9#199110-199305

SAUDI ARABIA & GULF SPEC,GRAY,TRIM1#

64811GLASS, BACK WINDOW

main64811-37020iYU6#,82..(L2,T3)..GEN199109-199505

*TEM,T=3.5,BRONZE

main64811-37040iRU85..GEN199109-199505

*TEM,T=3.5,BRONZE

main64811-37050×2iWU9#199109-199305

*TT,T=4.0,TAIWAN PACKAGE

main64811-95409iYU6#,82..L2,T3198808-199505

*TEM,T=3.5

main64811-95410iYU62..TW1;RU85,WU9#,YU85198808-199505

*TEM,T=3.5

sub64811-37080

64813GLASS, BACK WINDOW CORNER, RH

main64814-37010iWU9#199109-199305

*TT,T=4.0,TAIWAN PACKAGE

64814GLASS, BACK WINDOW CORNER, LH

main64814-37010iWU9#199109-199305

*TT,T=4.0,TAIWAN PACKAGE

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95406iRU85,WU9#,YU6#,8#198808-199505

sub64831-37050

64831AWEATHERSTRIP, BACK WINDOW GLASS, UPPER

main64831-95404iWU9#199109-199305

TAIWAN PACKAGE

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iYU6#,82..L2,T3198808-199505

main64832-95013iYU62..TW1;RU85,WU9#,YU85198808-199505

sub64832-37040

64832AWEATHERSTRIP, BACK WINDOW VERTICAL

main64834-37010×2iWU9#199109-199305

TAIWAN PACKAGE

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-95400iWU9#199109-199305

TAIWAN PACKAGE,NO.1

main64833-95401iWU9#199109-199305

TAIWAN PACKAGE,NO.2

64834CWEATHERSTRIP, BACK WINDOW GLASS, LOWER

main64834-95400iWU9#199109-199305

TAIWAN PACKAGE

64835AWEATHERSTRIP, BACK WINDOW GLASS, CENTER

main64835-37010×7iWU9#199109-199206

TAIWAN PACKAGE

64837CWEATHERSTRIP, BACK WINDOW CORNER GLASS

main64837-95400×2iWU9#199109-199305

TAIWAN PACKAGE

64839APACKING, BACK WINDOW

main64839-89101×2iWU9#199109-199305

TAIWAN PACKAGE

64851STOP, BACK WINDOW SLIDE GLASS

main64851-95400iWU9#199109-199305

TAIWAN PACKAGE

64882FRAME, BACK WINDOW VERTICAL

main64882-95400×2iWU9#199109-199305

TAIWAN PACKAGE

64883FRAME, BACK WINDOW

main64881-95400iWU9#199109-199305

TAIWAN PACKAGE

64883ACHANNEL, BACK WINDOW SLIDE

main64883-95400×2iWU9#199109-199305

TAIWAN PACKAGE

69370ALOCK ASSY, BACK WINDOW

main69370-89101iWU9#199109-199305

TAIWAN PACKAGE

69374CATCH, BACK WINDOW LOCK

main69374-89101iWU9#199109-199305

TAIWAN PACKAGE

69375ARETAINER, BACK WINDOW LOCK

main69375-89102×2iWU9#199109-199305

TAIWAN PACKAGE

69376BPACKING, BACK WINDOW LOCK

main69376-89101×2iWU9#199109-199305

TAIWAN PACKAGE

6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J01

9015950206

main90159-50206

9033325001

main90333-25001

9046708033

main90467-08033

9324923008

main93249-23008

9352054010

main93520-54010

9354024012

main93540-24012

9356015010

main93560-15010

50 parts on this diagram · 3 diagrams in section
