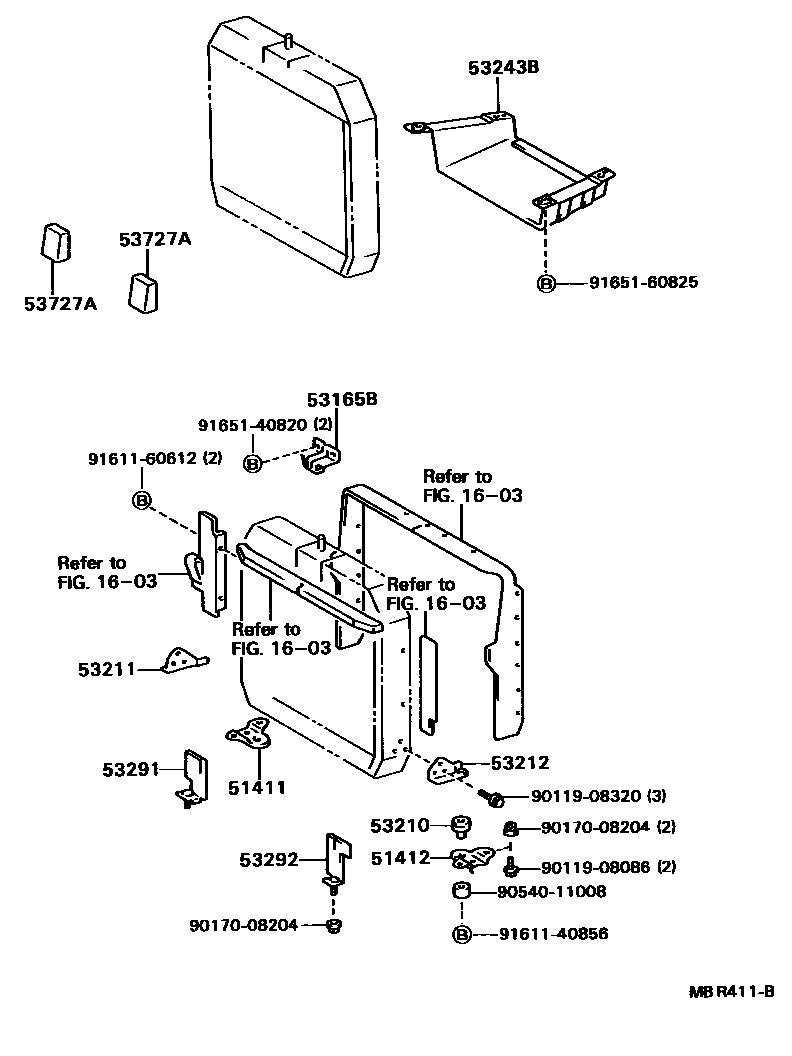

Toyota DYNA 200 — RADIATOR SUPPORT & WIND GUIDE
1603RADIATOR & WATER OUTLET
51411BRACKET, RADIATOR SUPPORT, RH
51412BRACKET, RADIATOR SUPPORT, LH
53165BSUPPORT, RADIATOR, CENTER
53210SUPPORT ASSY, RADIATOR
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53243BGUIDE, LOWER WIND
53291SEAL, RADIATOR SUPPORT TO FRAME, RH
53292SEAL, RADIATOR SUPPORT TO FRAME, LH
53727ASHUTTER, HOT AIR SIDE
9011908086
main90119-08086
9011908320
main90119-08320
9017008204
main90170-08204
9054011008
main90540-11008
9161140856
main91611-40856
9161160612
main91611-60612
9165140820
main91651-40820
9165160825
main91651-60825
19 parts on this diagram · 1 diagram in section
RADIATOR SUPPORT & WIND GUIDE for Toyota DYNA 200
This section contains 19 genuine Toyota parts for the RADIATOR SUPPORT & WIND GUIDE system of the Toyota DYNA 200. Key components include: RADIATOR & WATER OUTLET, BRACKET, RADIATOR SUPPORT, RH, BRACKET, RADIATOR SUPPORT, LH, SUPPORT, RADIATOR, CENTER, SUPPORT ASSY, RADIATOR.
