Toyota DYNA 200 — RADIATOR SUPPORT & WIND GUIDE

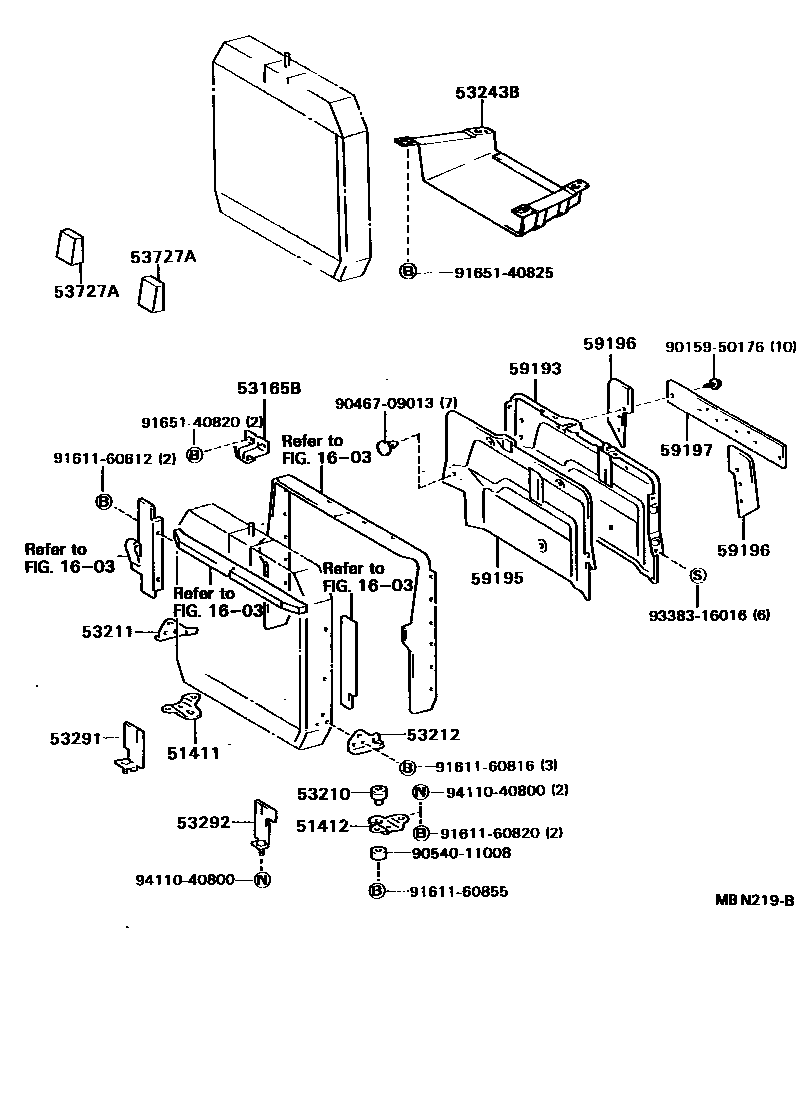

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

51411BRACKET, RADIATOR SUPPORT, RH

main51411-36080i198708-198808

main51411-36100i198708-198710

main51411-36120i198708-198808

51412BRACKET, RADIATOR SUPPORT, LH

main51412-36080i198708-198808

main51412-36090i198708-198808

main51412-36100i198708-198710

53165BSUPPORT, RADIATOR, CENTER

main53165-36011i198708-198710

main53165-36040i198708-198808

53210SUPPORT ASSY, RADIATOR

main53210-36010×2i198708-198808

53211SUPPORT, RADIATOR, RH

main53211-36020i198708-198710

main53211-36060i198708-198808

53212SUPPORT, RADIATOR, LH

main53212-36020i198710-198808

53243BGUIDE, LOWER WIND

main53243-36070i198710-198808

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-36030i198708-198808

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-36060i198708-198808

53727ASHUTTER, HOT AIR SIDE

main53727-95401×2i198708-198808

59193GUARD, NOISE SHUTTER

main59193-95401i198708-198808

SWITZERLAND SPEC

59195INSULATOR, NOISE SHUTTER

main59195-95401i198708-198808

SWITZERLAND SPEC

59196SEAL, NOISE SHUTTER, UPPER NO.1

main59196-95400×2i198708-198808

SWITZERLAND SPEC

59197SEAL, NOISE SHUTTER, UPPER NO.2

main59197-95400i198708-198808

SWITZERLAND SPEC

9015950176

main90159-50176

9046709013

main90467-09013

9054011008

main90540-11008

9161160612

main91611-60612

9161160816

main91611-60816

9161160820

main91611-60820

9161160855

main91611-60855

9165140820

main91651-40820

9165140825

main91651-40825

9338316016

main93383-16016

9411040800

main94110-40800

26 parts on this diagram · 1 diagram in section

RADIATOR SUPPORT & WIND GUIDE for Toyota DYNA 200

This section contains 26 genuine Toyota parts for the RADIATOR SUPPORT & WIND GUIDE system of the Toyota DYNA 200. Key components include: RADIATOR & WATER OUTLET, BRACKET, RADIATOR SUPPORT, RH, BRACKET, RADIATOR SUPPORT, LH, SUPPORT, RADIATOR, CENTER, SUPPORT ASSY, RADIATOR.
