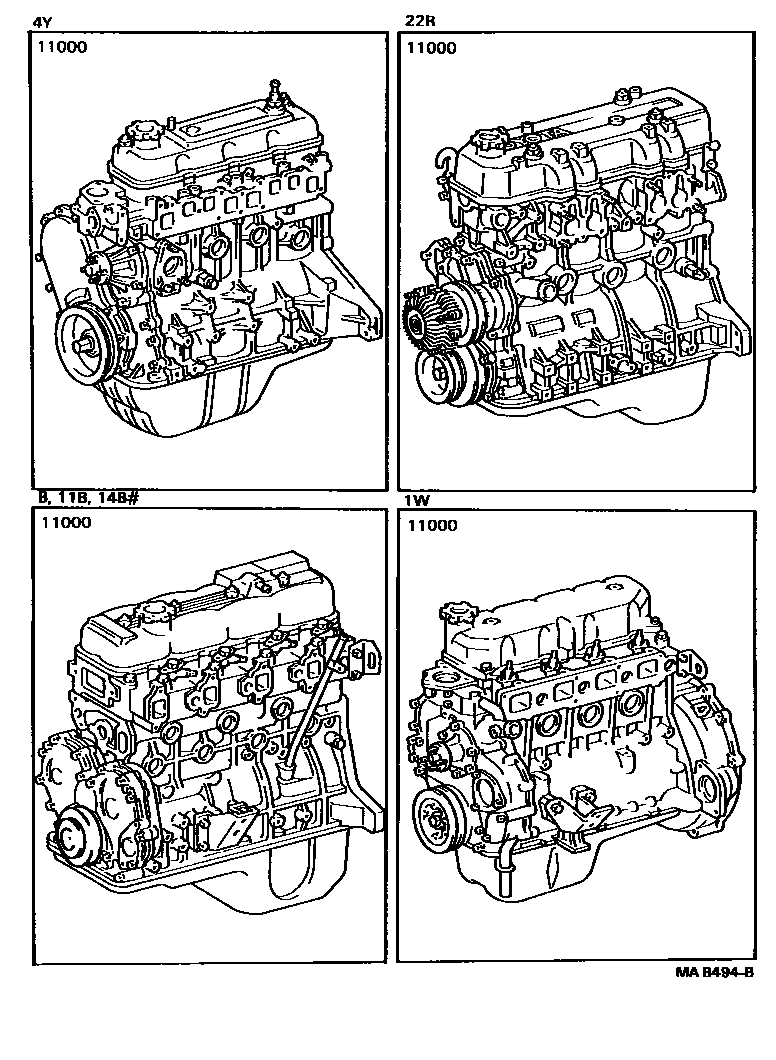

Toyota DYNA 200 — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-56280iB..BU60,70,83198808-198910

sub12129-56010

sub93385-16014

main19000-56281iB..BU60,70,83198910-199505

main19000-56290iB..BU60,83..T3198808-198910

W(POWER STEERING)

sub12129-56010

sub93385-16014

main19000-56291iB..BU60,83..T3198910-199505

W(POWER STEERING)

main19000-56300i11B..BU61,65..ARL198808-198910

W(POWER STEERING)

sub12129-56010

sub93385-16014

main19000-56301i11B..BU61,65..ARL198910-199505

W(POWER STEERING)

main19000-56310i11B..BU61,84..GEN..(CBU,IV3)198808-198910

W(POWER STEERING)

sub12129-56010

sub93385-16014

main19000-56311i11B..BU61,84..GEN..(CBU,IV3)198910-199505

W(POWER STEERING)

main19000-56320i11B..BU61,65..ARL198808-198910

sub12129-56010

sub93385-16014

main19000-56321i11B..BU61,65..ARL198910-199505

main19000-56330i11B..BU61,65,84..GEN,SA198808-198910

sub12129-56010

sub93385-16014

main19000-56331i11B..BU61,65,84..GEN,SA198910-199505

main19000-58480i14B..BU66..ARL198808-198910

W(POWER STEERING)

sub12129-58010

sub93385-16014

main19000-58481i14B..BU66..ARL198910-199204

W(POWER STEERING)

main19000-58490i14B..BU66..ARL198808-198910

sub12129-58010

sub93385-16014

main19000-58491i14B..BU66..ARL198910-199204

main19000-58601i14B..BU67199004-199103

W(POWER STEERING)

main19000-58610i14B..BU66,87,88,9#..GEN,GHD,SA198808-198910

sub12129-58010

sub93385-16014

main19000-58611i14B..BU66,87,88,9#..GEN,GHD,SA198910-199105

main19000-58620i14B..BU88..ARL198808-198910

W(POWER STEERING)

sub12129-58010

sub93385-16014

main19000-58621i14B..BU88..ARL198910-199103

W(POWER STEERING)

main19000-58630i14B..BU88..ARL198808-198910

sub12129-58010

sub93385-16014

main19000-58631i14B..BU88..ARL198910-199105

main19000-58700i14BT..BU91,96199004-199305

main19000-5C060i14B..BU88,94199505-199703

1 parts on this diagram · 1 diagram in section
