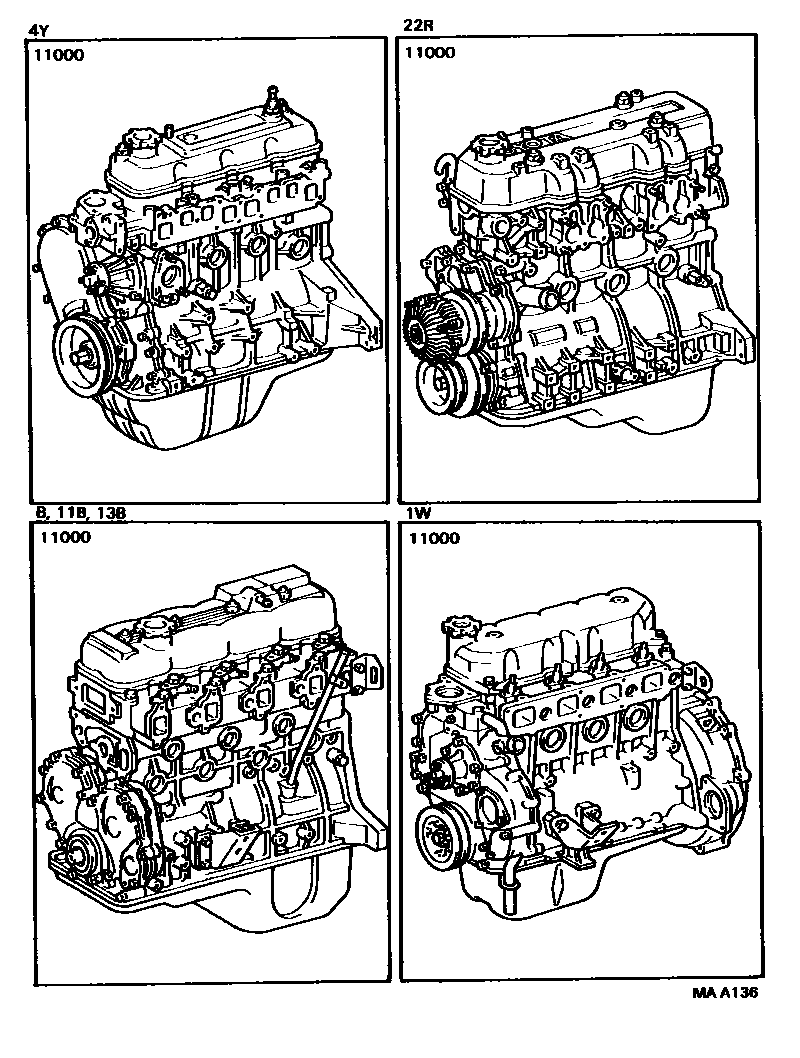

Toyota DYNA 200 — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-56140iB..BU60,70,80198708-198808

main19000-56160iB..BU60,80..T3198708-198808

W(POWER STEERING)

main19000-56230i11B..BU61,65,81,86198708-198808

sub19000-56210

main19000-56240i11B..BU65..ARL;11B..BU61,81,86..(ARL,GEN,GHD)..(CBU,IV3)198708-198808

W(POWER STEERING)

sub19000-56220

main19000-58140i13B..BU62,82,85,93198708-198808

sub19000-58120

main19000-58150i13B..BU62,85..CBU,IV3198708-198808

W(POWER STEERING)

sub19000-58130

1 parts on this diagram · 1 diagram in section
