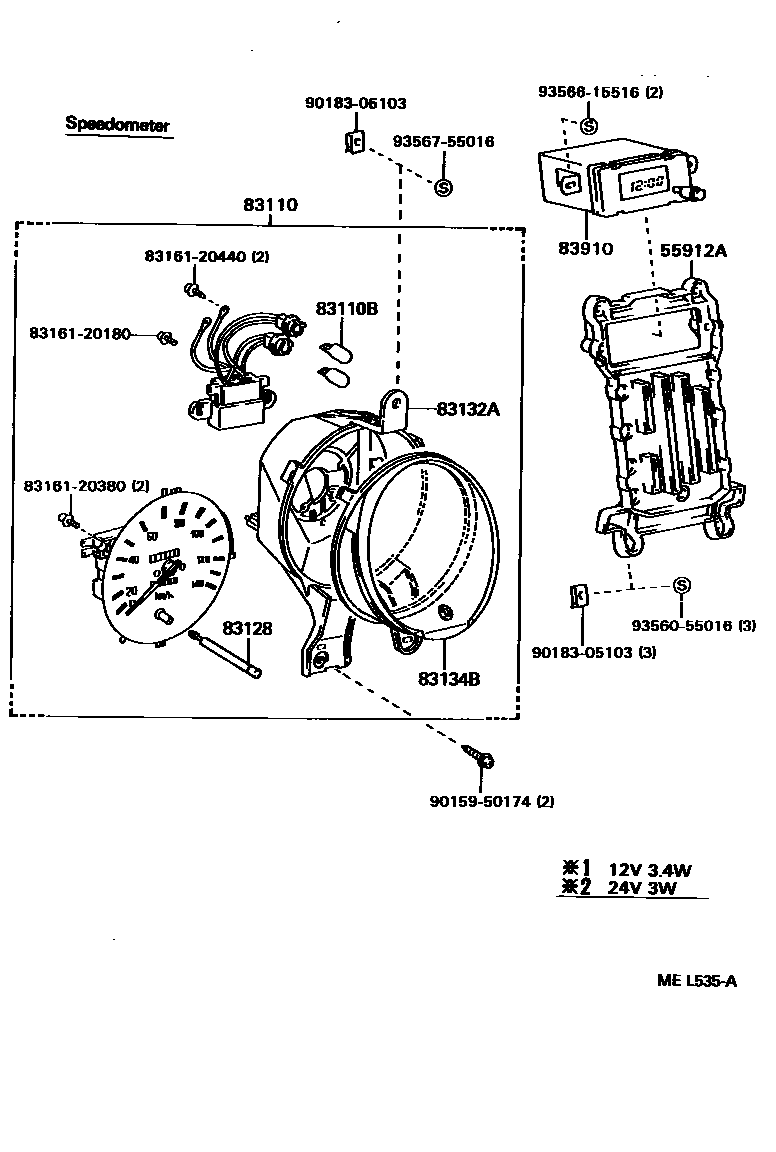

Toyota DYNA 200 — METER
55912AHOUSING, HEATER CONTROL
main55912-95404iBU60..T3..ST;BU61,66,70,84,87,96..DSL..(GEN,GHD);BU60,65,83,88,91..RHD..(GEN,GHD)..(CBU,IV3); BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL199009-199112
83110SPEEDOMETER ASSY
CHINA SPEC; HONG KONG SPEC
CHINA SPEC
main83110-95452iBU60..LHD..WT;BU60..TW1..GEN;BU84..LHD..CBU;BU70,83,88,91,96..LHD..(BUS,TR)..DSL198808-199505
SAUDI ARABIA & GULF SPEC
main83110-95454iBU65..GEN..CBU;BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..DSL..(GEN,GHD)..(CBU,IV3)198808-199703
MILE/H & KM/H
83110BBULB, SPEEDOMETER
83128KNOB, TRIP COUNTER
83132CASE, COMBINATION METER
main83132-95B00iBU65,88..RHD..GEN..CBU;BU60,61,66,67,70,83,84..GEN,GHD; BU88..LHD..CBU; BU88..LHD..IV3; BU88..RHD..GEN..IV3198808-199109
CHINA SPEC & W(TACHOMETER); CHINA,TAIWAN SPEC OR W(TACHOMETER); HONG KONG SPEC OR W(TACHOMETER); W(TACHOMETER)
ALGERIA SPEC
83132ACASE, METER
83134COVER, COMBINATION METER, NO.1
main83134-95B00iBU65,88..RHD..GEN..CBU;BU60,61,66,67,70,83,84..GEN,GHD; BU88..LHD..CBU; BU88..LHD..IV3; BU88..RHD..GEN..IV3198808-199109
CHINA SPEC & W(TACHOMETER); CHINA,TAIWAN SPEC OR W(TACHOMETER); HONG KONG SPEC OR W(TACHOMETER); W(TACHOMETER)
main83134-95B01iBU60..LHD..WT;BU60..TW1..GEN;BU88..LHD..IV3;BU70,83..LHD..(BUS,TR); BU84..LHD..IV3199109-199309
ALGERIA SPEC; SAUDI ARABIA,GULF SPEC(WATER GAGE;WIDE ANGLE)
83134BCOVER, COMBINATION METER, NO.2
83910CLOCK ASSY
main83910-37030iBU96..LHD;BU66..T3..TB;BU60..T3..ST;BU91..RHD..CBU;BU91,96..ARL,SA;BU61,67,70,84,87;BU60,65,83,88..RHD..(CBU,IV3)199309-199703
24V, CHINA SPEC; 24V, HONG KONG SPEC
24V, ALGERIA SPEC
main83910-95403iBU60..T3..ST;BU61,66,67,70,84,87,96..DSL;BU60,65,83,88,91..RHD..(CBU,IV3); BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL199009-199112
12V
8316120180CASE, COMBINATION METER MIRROR, NO.1
main83161-20180
8316120380CASE, COMBINATION METER MIRROR, NO.1
main83161-20380
8316120440CASE, COMBINATION METER MIRROR, NO.1
main83161-20440
9015950174
main90159-50174
9018305103
main90183-05103
9356055016
main93560-55016
9356615516
main93566-15516
9356755016
main93567-55016
17 parts on this diagram · 5 diagrams in section
METER for Toyota DYNA 200
This section contains 43 genuine Toyota parts for the METER system of the Toyota DYNA 200. Key components include: HOUSING, HEATER CONTROL, BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, BULB, COMBINATION METER, NO.2, SPEEDOMETER ASSY.
