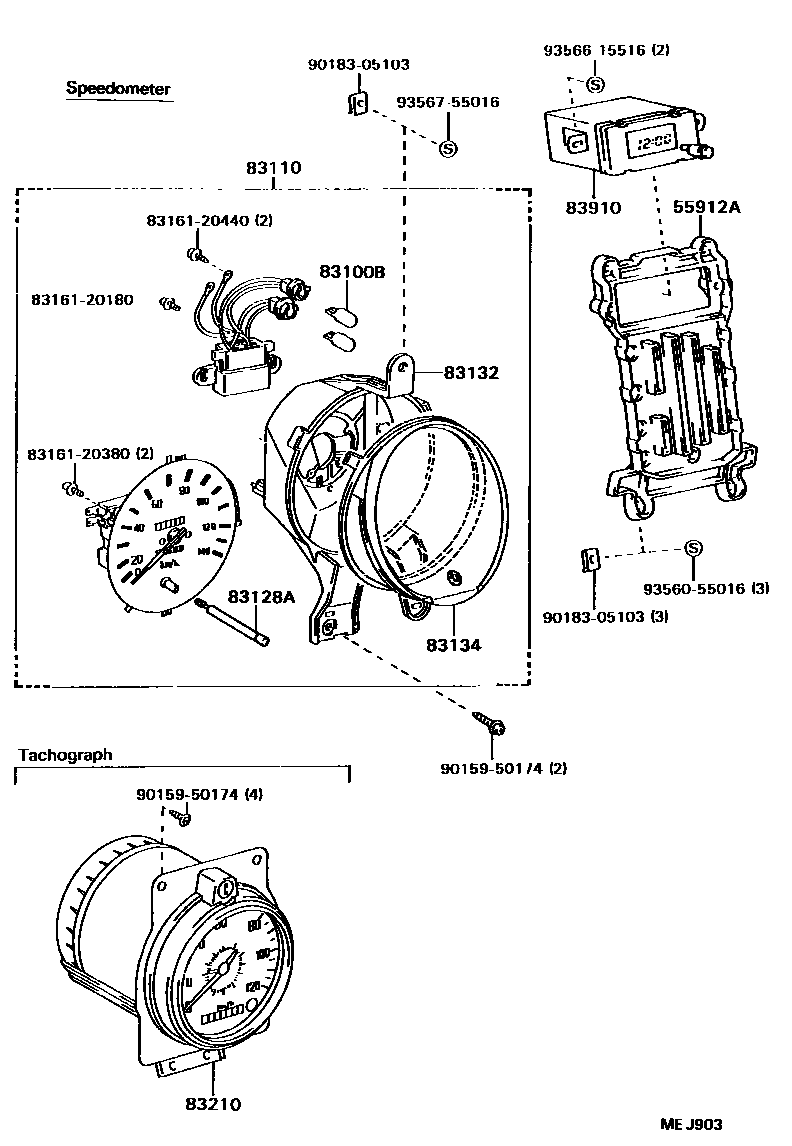

Toyota DYNA 200 — METER
55912AHOUSING, HEATER CONTROL
main55912-95404iBU60..T3..ST;BU61,62,70,82,86..GEN,GHD;BU60,65,80,81,85..RHD..(GEN,GHD)..(CBU,IV3); BU60..TW1..GEN;BU60,80,85..LHD..WT; BU81..LHD198708-198808
83100BBULB, COMBINATION METER, NO.1
main90981-11018×2iBU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU61,62,81,82,86,93..GEN,GHD,SA; BU70,80;BU60,62..TS;BU61,65,85..ARL198708-198808
12V 1.2W W/O SOCKET
24V 1.4W; 24V 1.4W,ALGERIA SPEC
main99132-12034×2iBU65..CBU;BU60,61,62,70,8#; BU65..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..5F..(ARL,GEN,GHD); BU70..BUS; BU81..LHD..CBU;BU60,80,85..LHD..WT; BU81..LHD..IV3; BU85..RHD..CBU;BU61,62..T3..GEN;BU60,65,80,81..RHD..(GEN,GHD); BU85..RHD..GEN..IV3; BU86; BU93;BU62,81,85..ARL,SA198708-198808
12V 3.4W; 12V 3.4W,12V 3.4W W(EXHAUST BRAKE);12V 3.4W,W(EXHAUST BRAKE); 12V 3.4W,12V 3.4W,PORTUGAL SPEC OR W(EXHAUST BRAKE); 12V 3.4W,12V 3.4W,SAUDI ARABIA & GULF SPEC; 12V 3.4W,12V 3.4W,SAUDI ARABIA & GULF SPEC & W(EXHAUST BRAKE); 12V 3.4W,12V 3.4W,W(EXHAUST BRAKE)
main99134-12030×2iBU60..TW1..GEN;BU60,80,85..LHD..WT; BU60..TW1..GEN;BU80..LHD..CBU;BU60,85..LHD..WT; BU65..IV3; BU80..LHD..IV3; BU81..LHD198708-198808
24V 3W; 24V 3W,24V 3W,CHINA SPEC; 24V 3W,ALGERIA SPEC; 24V 3W,CHINA SPEC; 24V 3W,CHINA SPEC OR SWITZERLAND SPEC
83110SPEEDOMETER ASSY
main83110-95451iBU60..TW1..GEN;BU80..LHD..CBU;BU60,85..LHD..WT; BU65..IV3; BU80..LHD..IV3; BU81..LHD198708-198808
ALGERIA SPEC; CHINA SPEC; CHINA SPEC OR SWITZERLAND SPEC
SAUDI ARABIA & GULF SPEC
KM
MILE
83128AKNOB, METER
83132CASE, COMBINATION METER
SPEEDOMETER
main83132-95B00iBU6#,85..ARL; BU60,61,70..(TR,V)..ST..GEN..(CBU,IV3); BU61,62..T3..GEN;BU60,65,80,81,85..RHD..(GEN,GHD)..(CBU,IV3); BU61..IV1; BU70..BUS; BU81..LHD..IV3; BU86198708-198808
COMBINATION GAGE,W(TACHOMETER)
COMBINATION GAGE
83134COVER, COMBINATION METER, NO.1
SPEEDOMETER
main83134-95B00iBU6#,85..ARL; BU60,61,70..(TR,V)..ST..GEN..(CBU,IV3); BU61,62..T3..GEN;BU60,65,80,81,85..RHD..(GEN,GHD)..(CBU,IV3); BU61..IV1; BU70..BUS; BU81..LHD..IV3; BU86198708-198808
COMBINATION GAGE,W(TACHOMETER)
COMBINATION GAGE
83210TACHOGRAPH ASSY
83910CLOCK ASSY
main83910-95402iBU60..TW1..GEN;BU80..LHD..CBU;BU60,85..LHD..WT; BU80..LHD..IV3; BU81..LHD198708-198808
ALGERIA SPEC; CHINA SPEC; CHINA SPEC OR SWITZERLAND SPEC
main83910-95403iBU6#,81,85..ARL,SA; BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD198708-198808
8316120180CASE, COMBINATION METER MIRROR, NO.1
main83161-20180
8316120380CASE, COMBINATION METER MIRROR, NO.1
main83161-20380
8316120440CASE, COMBINATION METER MIRROR, NO.1
main83161-20440
9015950174
main90159-50174
9018305103
main90183-05103
9356055016
main93560-55016
9356615516
main93566-15516
9356755016
main93567-55016
16 parts on this diagram · 4 diagrams in section
METER for Toyota DYNA 200
This section contains 38 genuine Toyota parts for the METER system of the Toyota DYNA 200. Key components include: HOUSING, HEATER CONTROL, BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, SPEEDOMETER ASSY.
