Toyota DYNA 200 — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

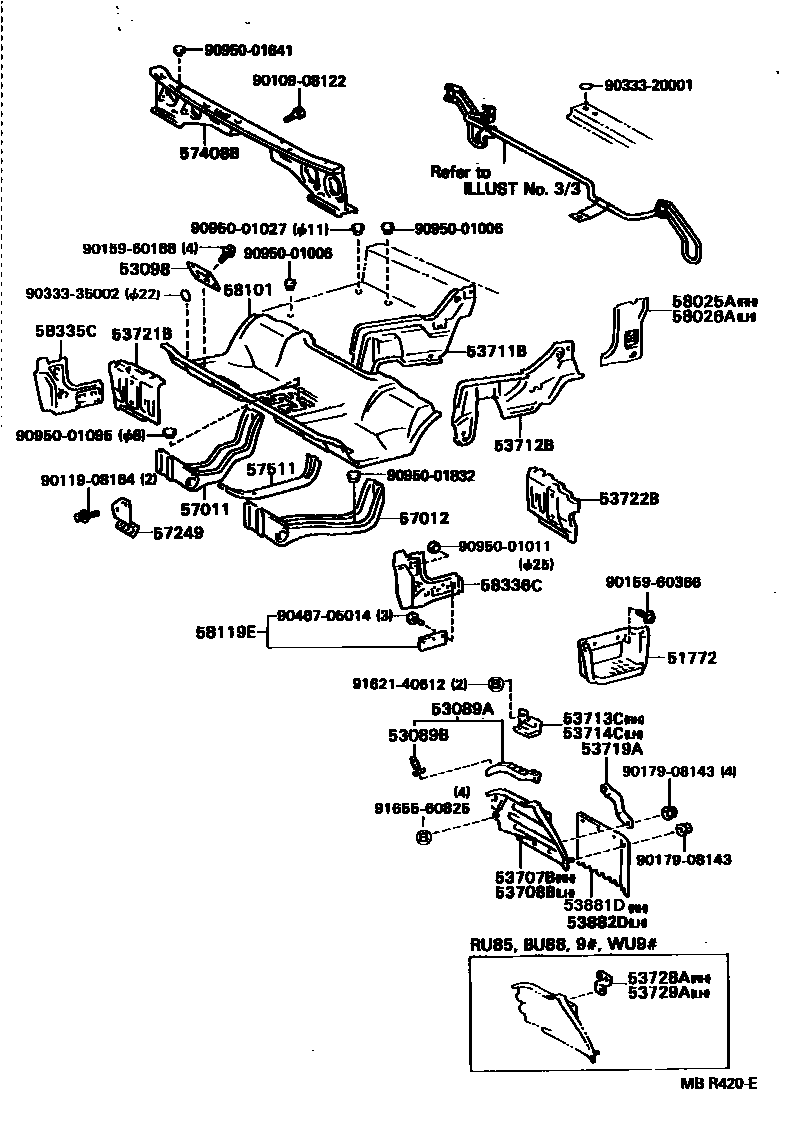

Parts diagram
51772PLATE, STEP
main51771-95406i198808-199505
RH
main51771-95407i198910-199703
RH
main51772-95406i198808-199505
LH
main51772-95407i198910-199703
LH
53089AMUDGUARD SUB-ASSY, FRONT
main53089-95400i198808-199703
53089BCLIP, FRONT MUDGUARD
main67868-95401i198808-199703
53098COVER SUB-ASSY, AIR CLEANER INLET HOLE
main53098-95402i198808-199505
53707BAPRON SUB-ASSY, FENDER SIDE, RH
main53707-92604i198808-198902
main53707-92607i198808-199505
main53707-92608i198902-199505
main53715-95402i198808-199505
main53715-95403i198808-199703
main53715-95404i198808-199703
W(FIXED CAB)
main53715-95404i198808-199703
main53715-95405i198808-199505
53708BAPRON SUB-ASSY, FENDER SIDE, LH
main53708-92604i198808-198902
main53708-92607i198808-199505
main53708-92608i198902-199505
main53716-95402i198808-199505
main53716-95403i198808-199703
main53716-95404i198808-199505
53711BAPRON, FRONT FENDER, FRONT RH
main53711-95410i198808-199505
main53711-95411i198808-199703
53712BAPRON, FRONT FENDER, FRONT LH
main53712-95414i198808-199505
main53712-95414i199009-199505
ALGERIA SPEC & W(TILT CAB)
main53712-95415i198808-199703
main53712-95416i198808-199505
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
main53713-95406i198808-199505
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
main53714-95406i198808-199505
53719ABRACE, FENDER APRON
main53719-92600i198808-199505
main53719-92603i198808-199505
main53719-95403i198808-199703
W(FIXED CAB)
main53719-95403i198808-199703
53721BAPRON SUB-ASSY, FENDER SIDE, RH
main53707-95400i198808-199505
main53721-95402i198808-199505
main53721-95403i198808-199505
53722BAPRON SUB-ASSY, FENDER SIDE, LH
main53708-95400i198808-199505
main53722-95403i198808-199505
main53722-95404i198808-199505
53728ABRACKET, FENDER APRON, RH
main53728-95400i198808-199703
53729ABRACKET, FENDER APRON, LH
main53729-95400i198808-199703
53881DMUDGUARD, FRONT RH
main53881-92600i198808-199505
main53881-92604i198808-199505
main53881-95400i198808-199505
main53881-95401i198808-199505
main53881-95402i198808-199703
53882DMUDGUARD, FRONT LH
main53881-92600i198808-199505
main53881-92604i198808-199505
main53881-95400i198808-199505
main53881-95401i198808-199505
main53881-95402i198808-199703
57011MEMBER SUB-ASSY, FLOOR, RH
main57011-95400i198808-199703
57012MENBER SUB-ASSY
main57012-92602i198808-198910
main57012-95400i198808-199505
main57012-95402i198808-199505
main57012-95402i199009-199505
ALGERIA SPEC & W(TILT CAB)
main57012-95403i198904-199505
main57012-95404i198808-198904
main57012-95405i198904-199505
main57012-95406i198904-199703
main57012-95407i198904-199505
57249BRACKET, FLEXIBLE HOSE, NO.1
main57249-95400i198808-199703
main57249-95401i198808-199505
main57249-95402i198808-199204
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
main57408-37010i199004-199505
TAIWAN SPEC & W(AIR CONDITIONER)
main57408-37020i199201-199505
main57408-37030i199201-199505
HONGKONG SPEC
main57408-37040i199201-199703
main57408-37050i199201-199703
W(AIR CONDITIONER)
main57408-95424i199004-199505
main57408-95424i199004-199505
TAIWAN SPEC
main57408-95425i198808-199505
main57408-95426i198808-199505
main57408-95427i198808-199201
main57408-95428i198808-199201
main57408-95428i199112-199201
HONGKONG SPEC
main57408-95429i198808-199201
main57408-95430i198808-199201
W(AIR CONDITIONER)
main57408-95431i198808-199505
main57408-95432i199004-199505
TAIWAN SPEC
main57408-95433i198808-199505
W(AIR CONDITIONER)
57511REINFORCEMENT, FRONT FLOOR, CENTER
main57511-95406i198808-199505
main57511-95406i199112-199505
HONGKONG SPEC
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
main58025-37010i199309-199505
main58025-95400i198808-199309
main58271-37010i199309-199505
main58271-95401i198808-199309
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
main58026-95400i198808-199505
SAUDI ARABIA & GULF SPEC
main58026-95401i198808-199505
main58037-95400i199004-199305
main58037-95400i198808-199505
TAIWAN SPEC
main58272-95403i198808-199505
main58272-95403i199009-199505
ALGERIA SPEC & W(TILT CAB)
main58272-95405i198808-198811
SAUDI ARABIA & GULF SPEC
main58272-95409i198811-199505
SAUDI ARABIA & GULF SPEC
58101PAN SUB-ASSY, FRONT FLOOR
main58101-37010i199004-199305
main58101-37020i199004-199305
W(PTO SEPARATETYPE)
main58101-95447i198808-199505
main58101-95448i198808-199505
main58101-95449i198808-199112
main58101-95450i199112-199703
main58101-95450i198808-199112
W(PTO SEPARATETYPE)
main58101-95452i198808-199505
W(PTO SEPARATETYPE)
main58101-95454i198808-199505
58119ECOVER, FRONT FLOOR SIDE, FRONT
main58119-95400i198808-199703
58335CPLATE, FLOOR SIDE, FRONT RH
main58335-95401i198808-199011
INDIA SPEC
main58335-95401i198808-199703
main58335-95402i199008-199011
INDIA SPEC & W(TILT CAB)
main58335-95402i198808-199008
58336CPLATE, FLOOR SIDE, FRONT LH
main58336-95401i199011-199703
main58336-95401i198808-199011
INDIA SPEC
main58336-95402i198808-199008
main58336-95402i199008-199011
INDIA SPEC & W(TILT CAB)
9010908122
main90109-08122
9011908164
main90119-08164
9015960168
main90159-60168
9015960366
main90159-60366
9017908143
main90179-08143
9033320001
main90333-20001
9033335002
main90333-35002
9046705014
main90467-05014
9095001006
main90950-01006
9095001011
main90950-01011
9095001027
main90950-01027
9095001095
main90950-01095
9095001641
main90950-01641
9095001832
main90950-01832
9162140612
main91621-40612
9165560825
main91655-60825

44 parts on this diagram · 4 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota DYNA 200

This section contains 88 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota DYNA 200. Key components include: PLATE, STEP, MUDGUARD SUB-ASSY, FRONT, CLIP, FRONT MUDGUARD, COVER SUB-ASSY, AIR CLEANER INLET HOLE, PLATE, SEAL SET.
