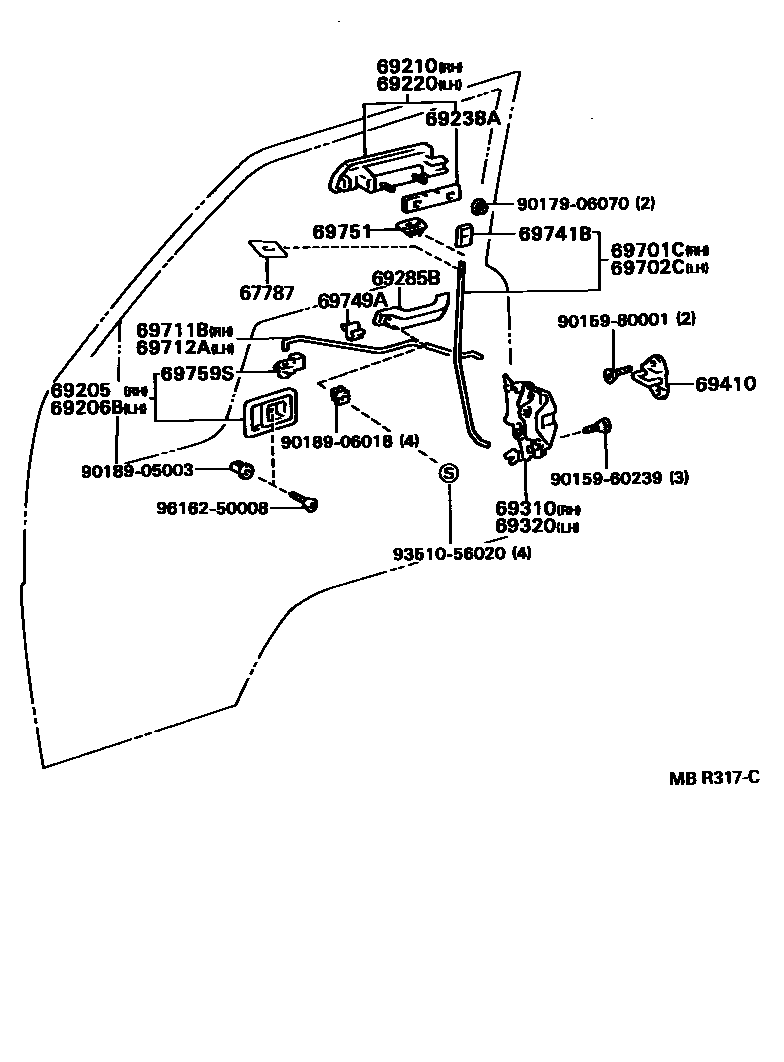

Toyota DYNA 200 — FRONT DOOR LOCK & HANDLE
67787SILENCER, FRONT DOOR LOCKING BUTTON KNOB
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BROWN,TRIM4#
GRAY,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BROWN,TRIM4#
GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69238APAD, DOOR OUTSIDE HANDLE
69285BHANDLE, PULL
BROWN,TRIM4#
GRAY,TRIM1#
69310LOCK ASSY, FRONT DOOR, RH
W(DIVISION BAR)
69320LOCK ASSY, FRONT DOOR, LH
W(DIVISION BAR)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
BLACK,TRIM4#
69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
BLACK,TRIM4#
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69741BKNOB, FRONT DOOR LOCK CONTROL
BLACK,TRIM4#
BLACK,TRIM1#
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69751HOLDER, DOOR LOCK CONTROL KNOB
BLACK,TRIM4#
69759SSNAP, FRONT DOOR INSIDE HANDLE
RH
LH
9015960239
main90159-60239
9015980001
main90159-80001
9017906070
main90179-06070
9018905003
main90189-05003
9018906018
main90189-06018
9351056020
main93510-56020
9616250008
main96162-50008
25 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota DYNA 200
This section contains 25 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota DYNA 200. Key components include: SILENCER, FRONT DOOR LOCKING BUTTON KNOB, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
